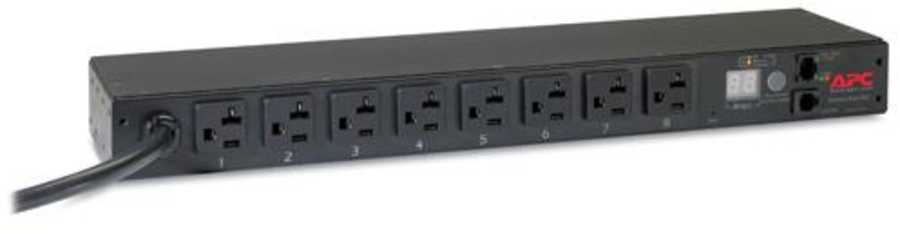

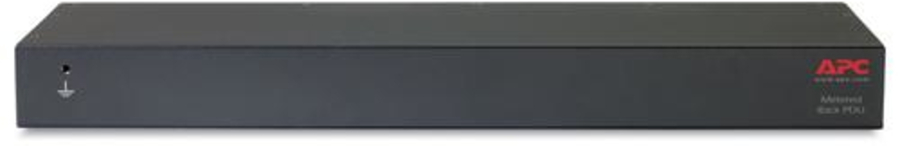

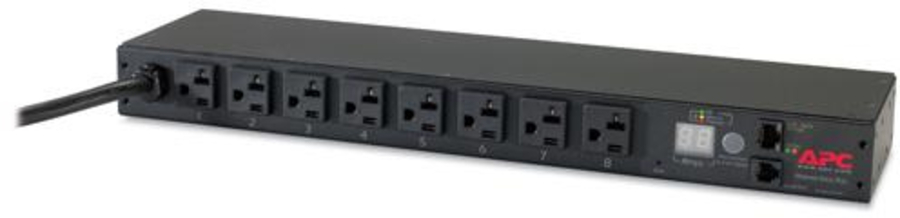

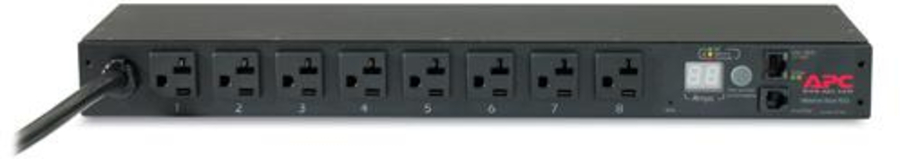

APC Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20

Home :: Power Equipment :: Other Power Products ::


Regularly: $763.00
On Sale: $732.48    Sale Ends: April 12th, 2024

Manufacturer: APC

Metered, 1U, 20A, 120V, 50/60 Hz, 8x NEMA 5-20R, NEMA L5-20P, 444 x 102 x 44 mm, 1730 g

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58122273 AP7801B 731304331469 Active

Details

General Information
Summary Availability

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Agility

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Marketing Features

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring
Status available to customers both in the data center and remotely

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Design
PDU types Metered
Rack capacity 1U
Product colour Black
Ports & interfaces
AC outlets quantity 8 AC outlet(s)
AC outlet types NEMA L5-20R
Input connection type NEMA L5-20P
Features
LED indicators Yes
Cable length 3.66 m
Certification cUL, CSA, FCC 15 A, ICES-003, UL 60950, UL
Management features
Monitoring Current
Power
Nominal input voltage 100-120 V
Maximum current 20 A
AC input frequency 50 - 60 Hz
Nominal output voltage 120 V
Load capacity 1920 VA
Maximum input current per phase 20 A
Maximum total current draw per phase 16 A
Weight & dimensions
Dimensions (WxDxH) 444 x 102 x 44 mm
Weight 1.73 kg
Packaging data
Package dimensions (WxDxH) 470 x 337 x 64 mm
Package weight 2.91 kg
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Technical details
Sustainability certificates RoHS

Multimedia

Multimedia Items
Generated PDF (leaflet)
