General Information |
|
Summary |

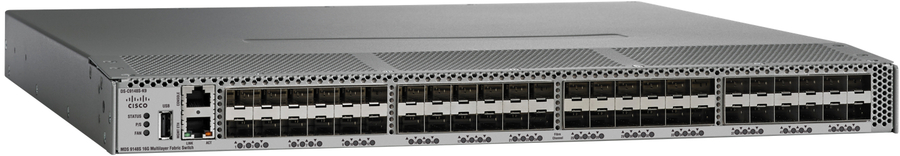

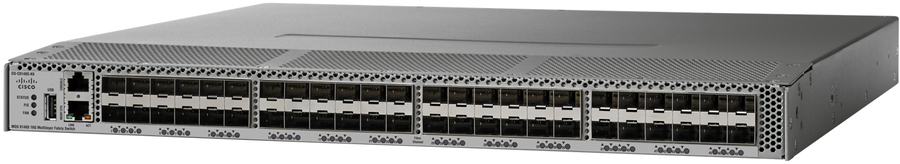

Are you looking for a high-performance Fibre Channel switch for departments, enterprises, or the edge? The HPE Storage Fibre Channel Switch C-series SN6010C is a high-performance, flexible, and cost-effective platform providing high-density, 16Gbps ports for storage networking deployments in small, medium-sized, and large enterprise environments. This switch offers outstanding value by providing high-availability, security, and ease of use at a cost-effective price in a compact one-rack-unit (1RU) form factor. With the flexibility to expand from 12 to 48 ports in 12-port increments, it offers the densities required to scale from an entry-level departmental switch to top-of-the-rack switch to edge connectivity in enterprise SANs. This switch delivers a non-blocking architecture, with all 48 4/8/16Gbps ports operating at line rate concurrently. With dual redundant hot-swappable power supplies and fan trays, this switch offers high availability scalable to mission-critical deployments.
What is new supporting point:
New subscription-based Advantage bundle with Cisco DCNM/NDFC and Enterprise license
Newly bundled offering with 16 Gb SFPs |
|
Management features |
|
Switch type |
Managed |
|
Quality of Service (QoS) support |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
0 |
|
Basic switching RJ-45 Ethernet ports type |
No |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP+ module slots quantity |
48 |
|
Fiber ports quantity |
12 |
|
Fiber optic connector |
SFP+ |
|
Network |
|
Auto-sensing |
Yes |
|
Data transmission |
|
MAC address table |
0 entries |
|
Switching capacity |
768 Gbit/s |
|
Security |
|
Access Control List (ACL) |
Yes |
|
Security algorithms |
256-bit AES |
|
SSH/SSL support |
Yes |
|
Protocols |
|
Management protocols |
SNMP 1, SNMP 3, SMI-S, SSH, SSH-2, CLI |
|
Design |
|
Rack mounting |
Yes |
|
Form factor |
1U |
|
Product colour |
Metallic |
|
Power |
|
Power supply included |
Yes |
|
Redundant power supply (RPS) support |
Yes |
|
Number of power supply units |
2 |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
10 - 95% |
|
Operating altitude |
-60 - 2000 m |
|
Weight & dimensions |
|
Width |
43.7 mm |
|
Depth |
435.9 mm |
|
Height |
415 mm |
|
Weight |
9 kg |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
