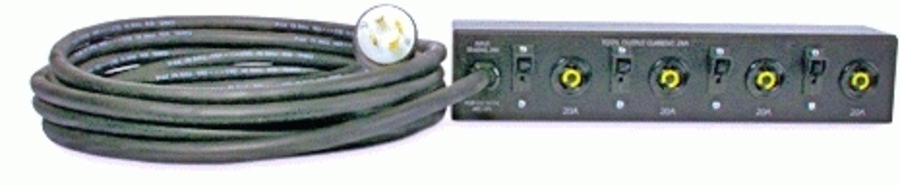

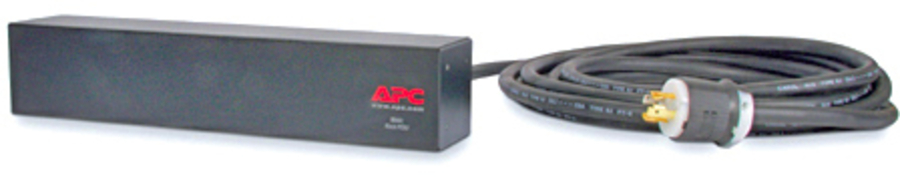

APC Rack PDU Extender, Basic, 2U, 30A, 100/120/200/208V, (4)L5-20

Home :: Power Equipment :: Other Power Products ::


Regularly: $744.00
On Sale: $714.24    Sale Ends: April 12th, 2024

Manufacturer: APC

Rack PDU Extender, Basic, 2U, 30A, 100/120/200/208V, (4)L5-20

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58122286 AP7580 731304213062 Active

Details

General Information
Summary -Horizontal mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Design
Product colour Black
Ports & interfaces
Input connection type NEMA L14-30P
Output connections (4) NEMA L5-20R
Features
Cable length 8.53 m
Certification cUL,CSA C22.2 No. 107.1,METI Denan,UL 1778,UL
Power
AC input frequency 50 - 60 Hz
Nominal output voltage 120 V
Load capacity 4992 VA
Maximum input current per phase 30 A
Maximum total current draw per phase 24 A
Weight & dimensions
Dimensions (WxDxH) 437 x 89 x 89 mm
Weight 6.36 kg
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%

Multimedia

Multimedia Items
Generated PDF (leaflet)
