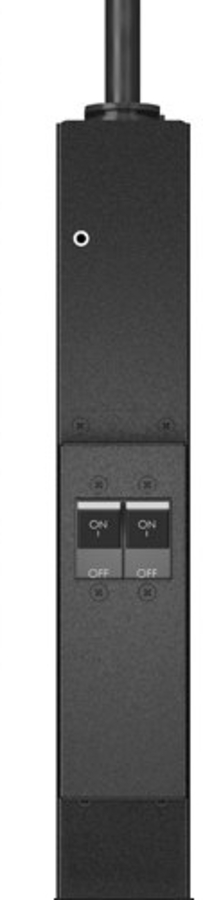

APC Rack PDU, Basic Vertical, 220-240V, 32A, (20) C13, (6) C19
|
|
Price: $1013.00
Manufacturer:
APC
RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122530
|
AP6009A
|
731304327783 |
Active
|
Details
|
General Information |
|
Summary |
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 32A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with an IEC 60309 32A 2P + E plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide. |
|
Design |
|
PDU types |
Basic |
|
Rack capacity |
0U |
|
Mounting |
Vertical |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
26 AC outlet(s) |
|
AC outlet types |
C13 coupler, C19 coupler |
|
Power plug |
IEC309 |
|
Input connection type |
IEC 60309 32 A 2P + E |
|
Features |
|
Cable length |
3 m |
|
Power |
|
Nominal input voltage |
230 V |
|
Maximum current |
32 A |
|
AC input frequency |
50 - 60 Hz |
|
Nominal output voltage |
230 V |
|
Output voltage |
230 V |
|
Power protection features |
Overload |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|
Compliance certificates |
RoHS, REACH, WEEE |
|
Certification |
CE; EAC; IRAM; VDE |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-15 - 65 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Weight & dimensions |
|
Width |
56 mm |
|
Depth |
43 mm |
|
Height |
1626 mm |
|
Weight |
6.18 kg |
|
Packaging data |
|
Package weight |
8 kg |
|
Package width |
226 mm |
|
Package depth |
135 mm |
|
Package height |
1875 mm |
|
Technical details |
|
Packaging recycled materials |
Recycled cardboard |
|
Halogen free |
No |
|
Sustainable packaging |
No |
|
SCIP number |
1cdb2fed-a06f-4574-913d-8df8e70936b2 |
|
Logistics data |
|
Country of origin |
India |
|
Customs product code (TARIC) |
8544429090 |
|
Total carbon footprint (kg of CO2e) |
4481.3674802844 |
|
