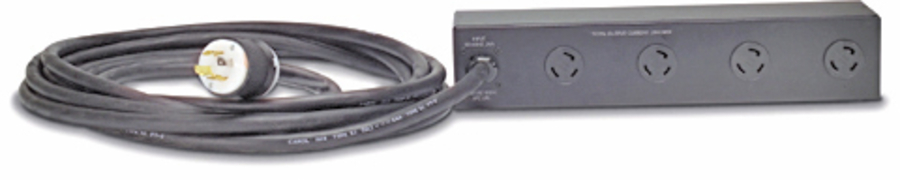

APC Rack PDU Extender, Basic, 2U, 30A, 100/120/200/208V, (4)L5-30
|
|
Regularly: $744.00
On Sale: $714.24
Sale Ends:
April 26th, 2024
Manufacturer:
APC
Basic Rack PDU , Input: 120V, 208V , Input Connections: NEMA L14-30P , Cord Length: 28 feet ( 8.53 meters ) , Output: 120V , Output Connections: NEMA L5-30R
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122531
|
AP7583
|
731304222576 |
Active
|
Details
|
General Information |
|
Summary |
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. |
|
Design |
|
Product colour |
Black |
|
Ports & interfaces |
|
Input connection type |
NEMA L14-30P |
|
Output connections |
4x NEMA L5-30R |
|
Features |
|
Cable length |
8.53 m |
|
Certification |
cUL Listed,CSA C22.2 No. 107.1,METI Denan,UL 1778,UL Listed, RoHS |
|
Power |
|
AC input frequency |
50 - 60 Hz |
|
Nominal output voltage |
120 V |
|
Load capacity |
4992 VA |
|
Maximum input current per phase |
30 A |
|
Maximum total current draw per phase |
24 A |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
437 x 89 x 89 mm |
|
Weight |
6.36 kg |
|
