APC Smart-UPS RT 20kVA RM 208V
|
|
Regularly: $22878.00
On Sale: $21962.88
Sale Ends:
May 10th, 2024
Manufacturer:
APC
APC Smart-UPS On-Line, 16kW/20kVA, 208V/208V, DB-9, RS-232, RJ-45 10/100 Base-T, Smart-Slot
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122538
|
SURT20KRMXLT
|
- |
Active
|
Details
|
General Information |
|
Summary |
APC Smart-UPS RT 20kVA RM 208V
LCD display:
Alpha-Numeric Display which displays system parameters and alarms.

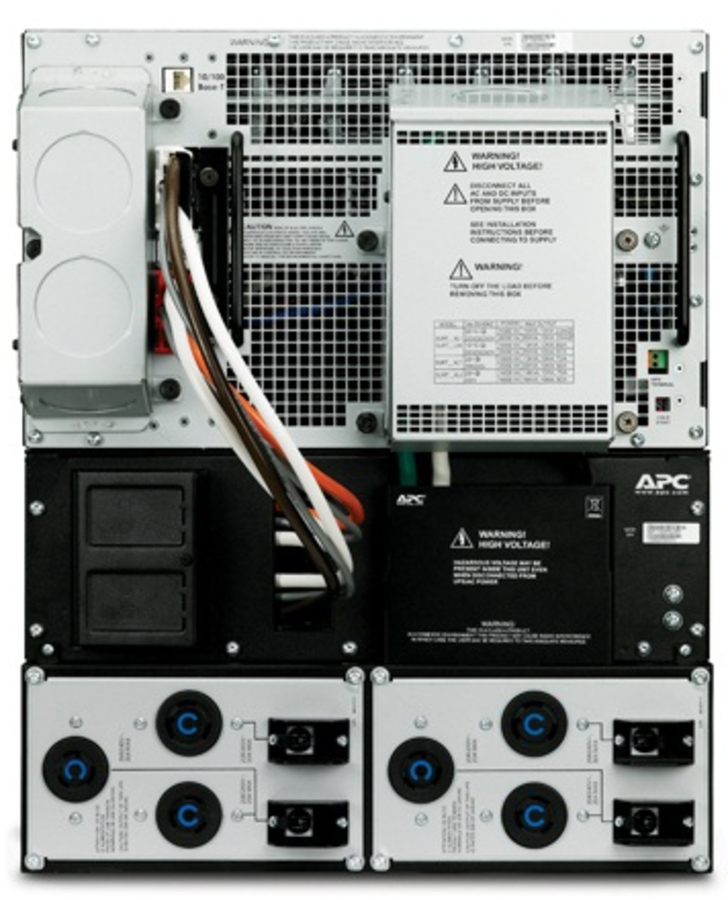

Removable input/output wiring tray:
Allows quick and easy installation and maintenance of the UPS.

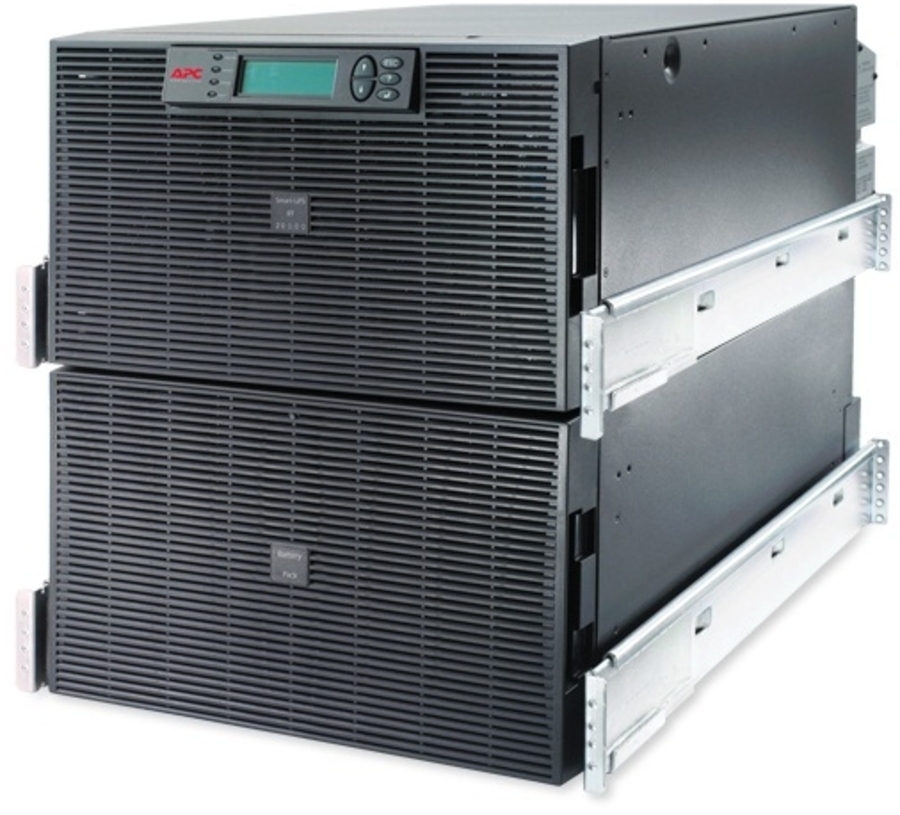

Rack/Tower convertible:
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Manageable external batteries:
Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime. |
|
Features |
|
Output power capacity |
20 kVA |
|
Output power |
16000 W |
|
Input frequency |
40/70 Hz |
|
Emergency Power Off (EPO) |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Battery |
|
Battery recharge time |
2.5 h |
|
Design |
|
Product colour |
Black |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Weight |
247.7 kg |
|
Other features |
|
Battery type |
Lead-Acid |
|
Interface |
DB-9 RS-232, RJ-45 10/100 |
|
Output connections |
2PH + G
NEMA L6-20R |
|
Input connection type |
2PH + G |
|
Dimensions (WxDxH) |
432 x 773 x 533 mm |
|
Nominal output voltage |
208 V |
|
Output voltage note |
208/240 |
|
Nominal input voltage |
208 V |
|
Package dimensions (WxDxH) |
610 x 1003 x 990 mm |
|
