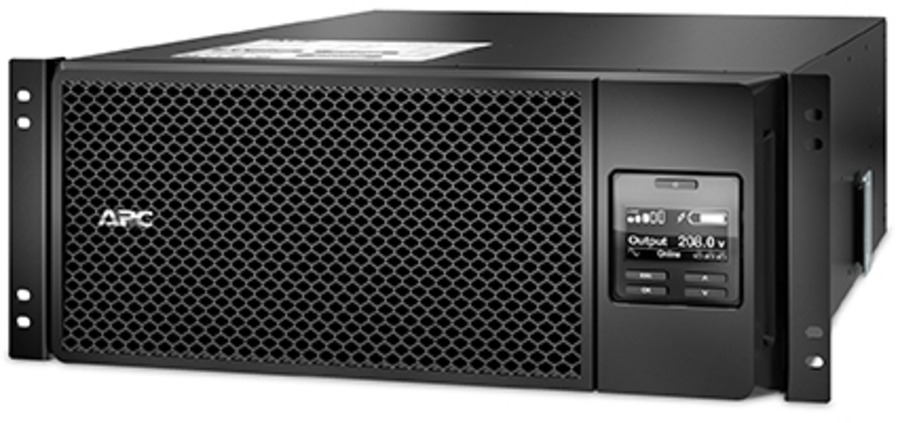

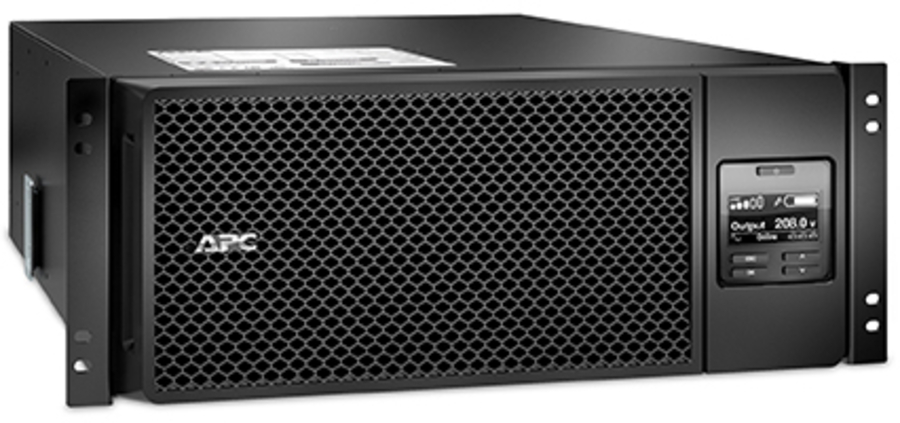

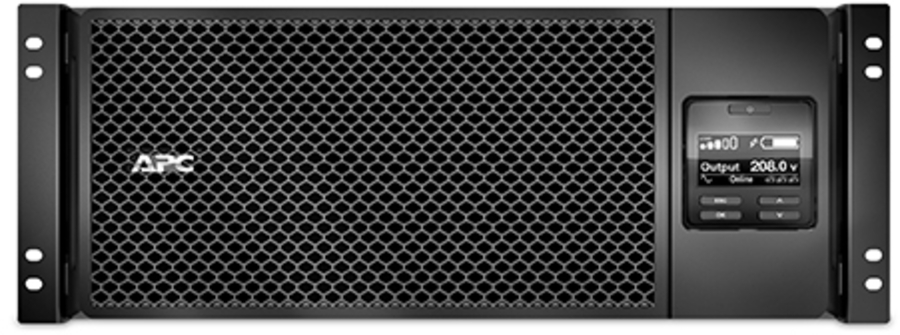

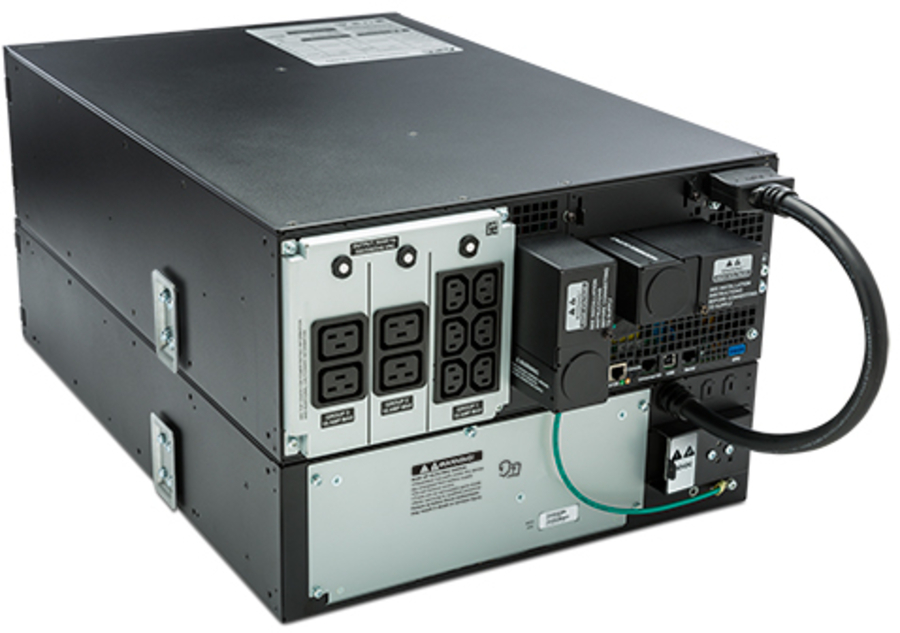

APC Smart-UPS SRT 6000VA RM 208V IEC
|
|
Price: $10422.00
Manufacturer:
APC
4U, 6kW, 6kVA, 208V 50/60Hz, Lead-Acid, 875VAh, RJ-45 10/100 BAse-T, SmartSlot, USB, 480J, 432x719x174mm, 61.23kg, Black
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58122819
|
SRT6KRMXLT-IEC
|
731304308539 |
Active
|
Details
|
General Information |
|
Summary |
APC Smart-UPS SRT 6000VA RM 208V IEC
High density, double-conversion on-line power protection with scalable runtime
Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card
- 10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Hard Wire Input
UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment

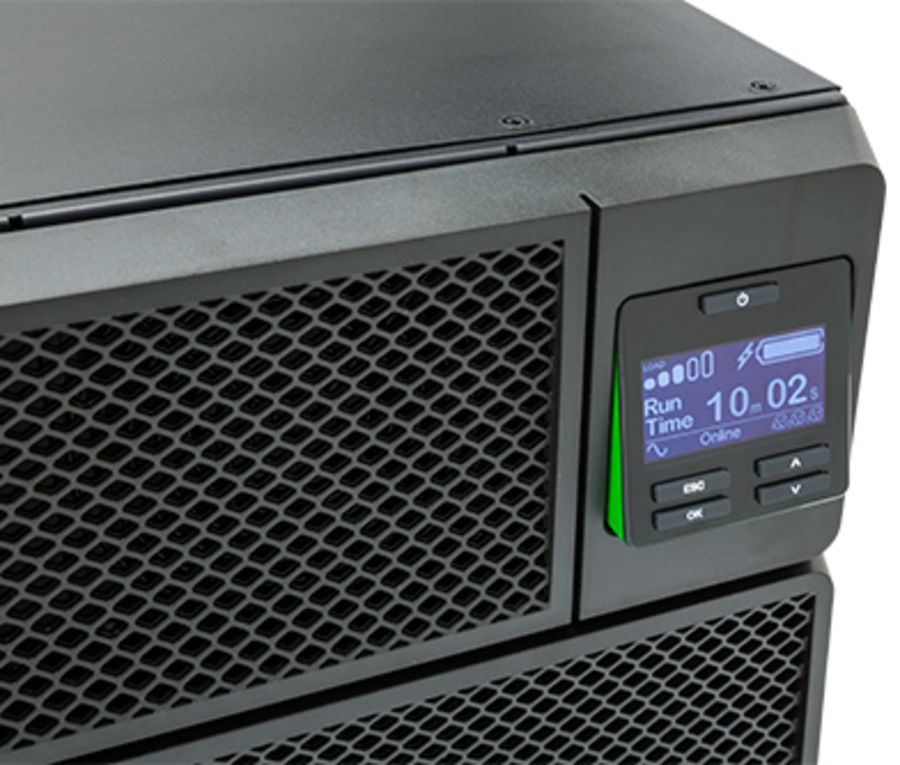

- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment. |
|
Features |
|
UPS topology |
Double-conversion (Online) |
|
Output power capacity |
6 kVA |
|
Output power |
6000 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
100 V |
|
Input operation voltage (max) |
275 V |
|
Input frequency |
40 - 70 Hz |
|
Output operation voltage (min) |
208 V |
|
Output operation voltage (max) |
240 V |
|
Output frequency |
50/60 Hz |
|
Surge energy rating |
480 J |
|
Crest factor |
3:1 |
|
Emergency Power Off (EPO) |
Yes |
|
Output voltage Total Harmonic Distortion (THD) |
2% |
|
Noise level |
55 dB |
|
Surge protection |
Yes |
|
Audible alarm(s) |
Yes |
|
Web-based management |
Yes |
|
Auto-restart |
Yes |
|
Ports & interfaces |
|

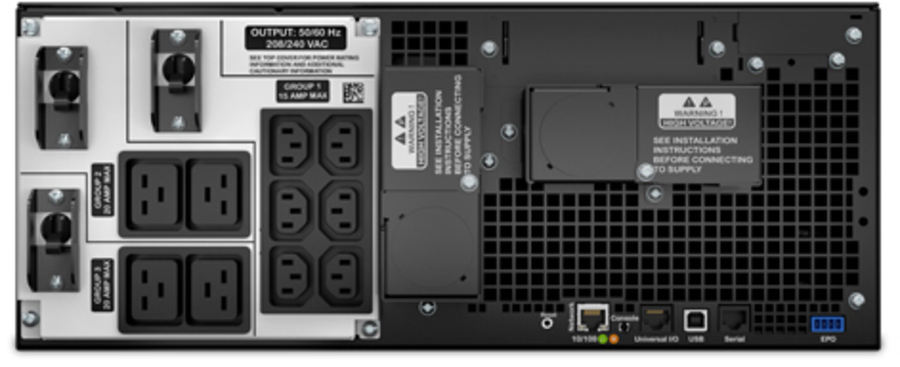

AC outlet types |
C13 coupler, C19 coupler |
|
AC outlets quantity |
13 AC outlet(s) |
|
USB port |
Yes |
|
Serial interface |
Yes |
|
Serial interface type |
RJ-45 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Cabling technology |
10/100Base-T |
|
SmartSlot |
Yes |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery capacity |
875 VAh |
|
Battery life (max) |
5 year(s) |
|
Battery recharge time |
1 h |
|

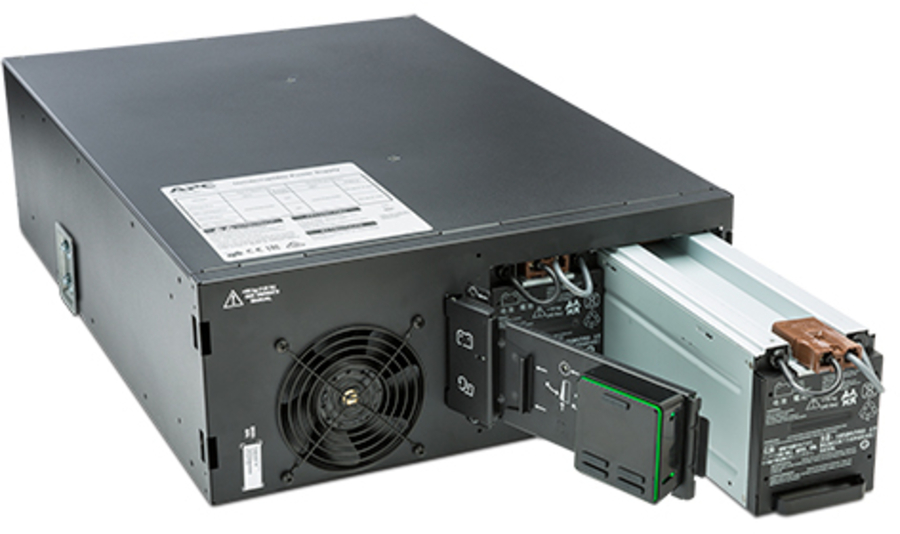

Hot-swap battery |
Yes |
|
Automatic battery test |
Yes |
|
Cold start |
Yes |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Rack capacity |
4U |
|
Display type |
LCD |
|
LED indicators |
Status |
|
International Protection (IP) code |
IP20 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778, REACH |
|
Packaging content |
|
Rack mount kit |
Yes |
|
Cables included |
USB cable |
|
Manual |
Yes |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR |
|
Weight & dimensions |
|
Width |
432 mm |
|
Depth |
719 mm |
|
Height |
174 mm |
|
Weight |
61.2 kg |
|
Packaging data |
|
Bracket |
Yes |
|
Temperature sensor |
Yes |
|
Resource CD |
Yes |
|
Package width |
610 mm |
|
Package depth |
960 mm |
|
Package height |
370 mm |
|
Package weight |
68 kg |
|
Logistics data |
|
Products per pallet |
6 pc(s) |
|
