General Information |
|
Summary |

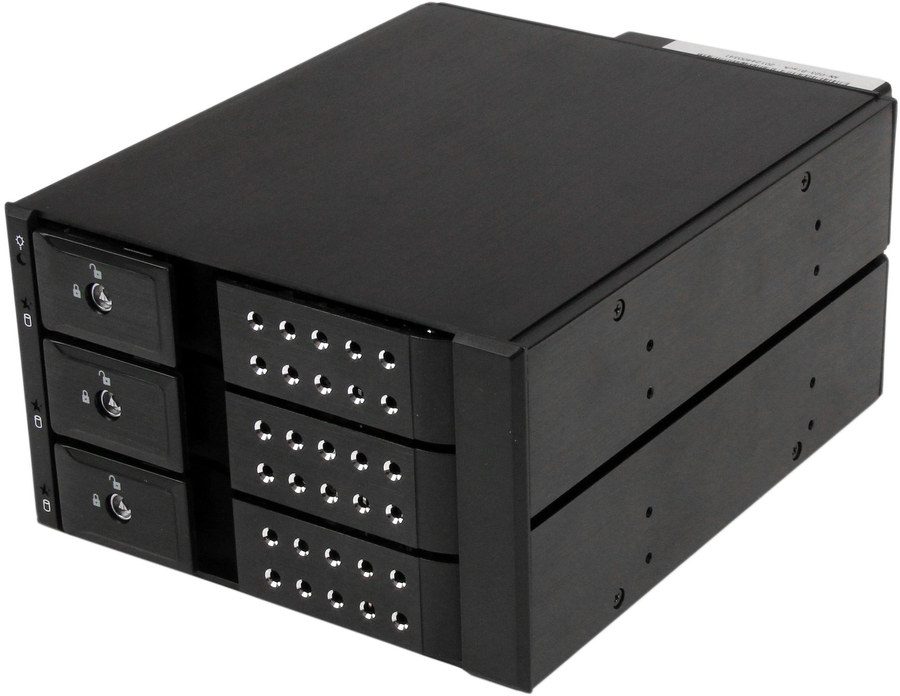

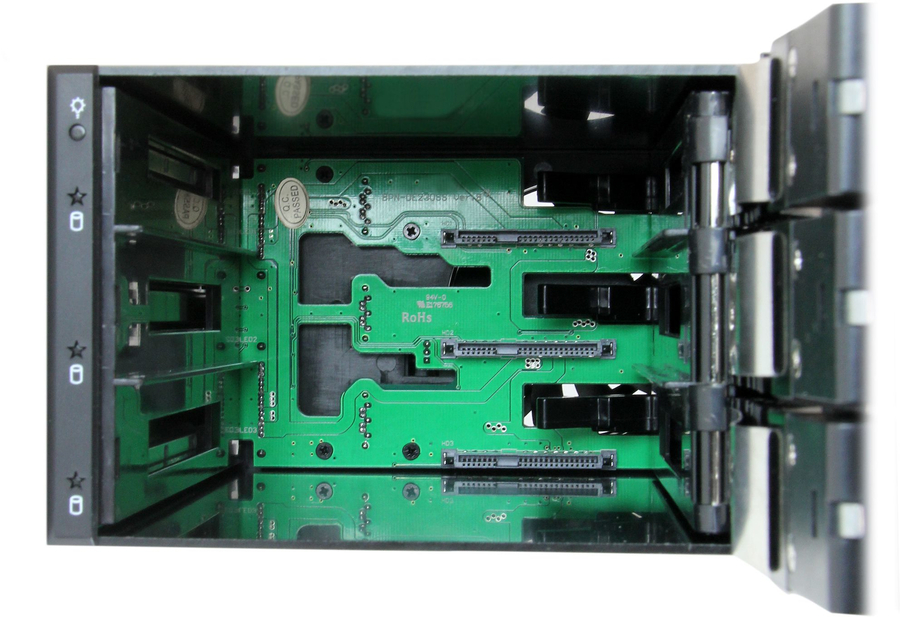

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

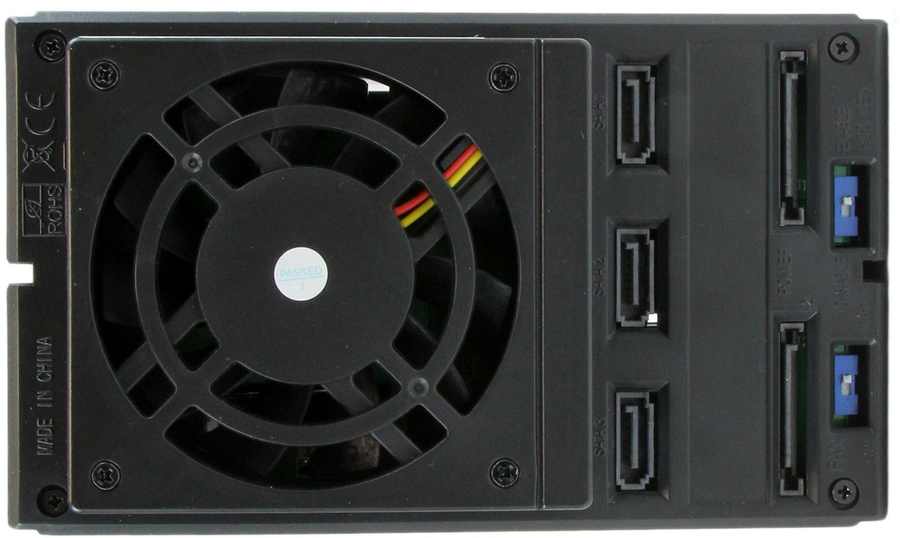

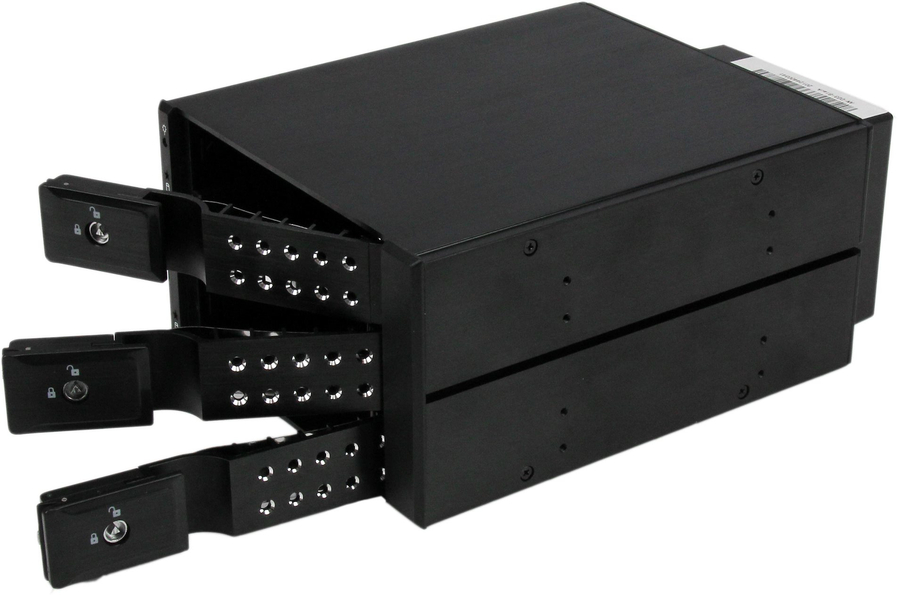

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by providing excellent heat dissipation, vented aluminum housing and a built-in fan |
|
Storage |
|
Storage drives installed |
No |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD |
|
Number of storage drives supported |
3 |
|
Maximum supported storage capacity |
12 TB |
|
Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III |
|
Storage drive size |
3.5" |
|
Data transfer rate |
6 Gbit/s |
|
Hot-swap drive bays |
Yes |
|
Ports & interfaces |
|
Host ports |
3 |
|
SATA host port |
Yes |
|
Number of SATA power connectors |
2 |
|
SATA power connector type |
SATA 15-pin |
|
Design |
|
Internal |
No |
|
Product colour |
Black |
|

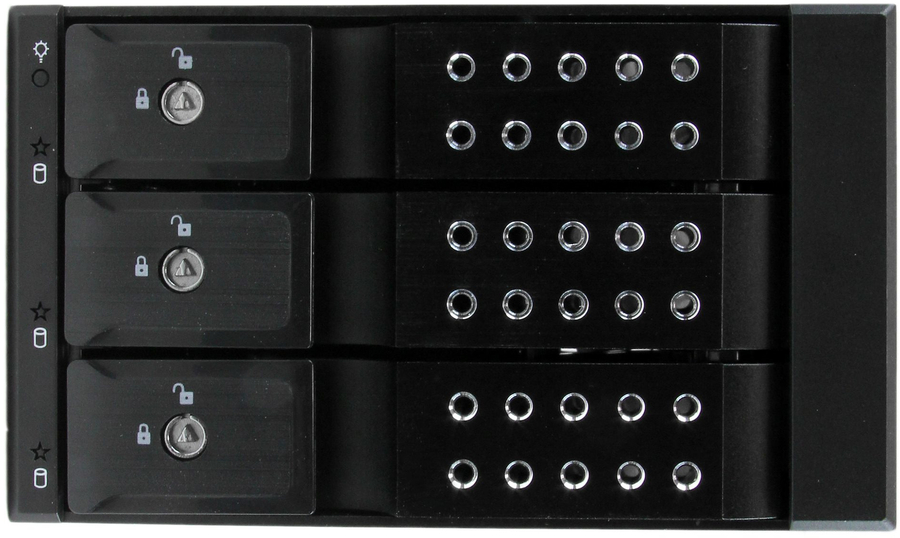

LED indicators |
Activity, Power |
|
Number of fans |
1 fan(s) |
|
Performance |
|
Backplanes support |
Yes |
|
Weight & dimensions |
|
Width |
145 mm |
|
Depth |
194.1 mm |
|
Height |
110 mm |
|
Weight |
1.2 kg |
|
Package width |
179 mm |
|
Package depth |
253 mm |
|
Package height |
123 mm |
|
Package weight |
1.2 kg |
|
Technical details |
|
Sustainability certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
8 pc(s) |
|
Master (outer) case length |
523 mm |
|
Master (outer) case width |
386 mm |
|
Master (outer) case height |
290 mm |
|
Harmonized System (HS) code |
84717020 |
|

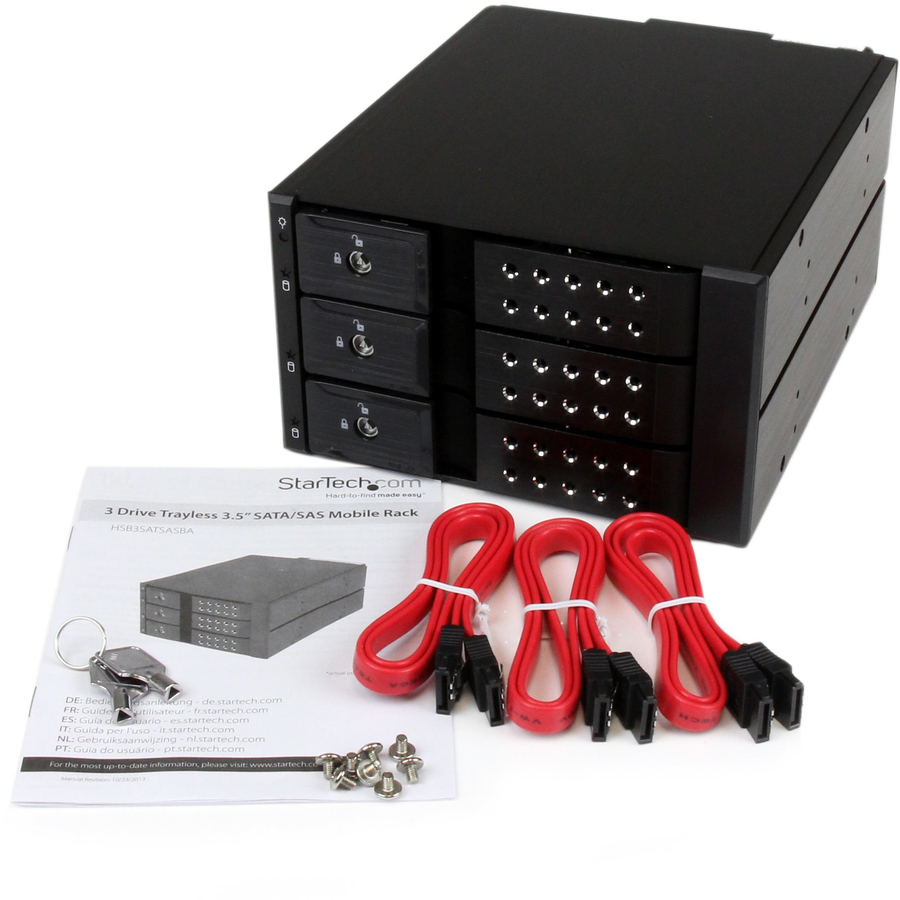

Packaging content |
|
Cables included |
SATA |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Operating relative humidity (H-H) |
5 - 85% |
|
Storage temperature (T-T) |
-20 - 60 °C |
