General Information |
|
Summary |

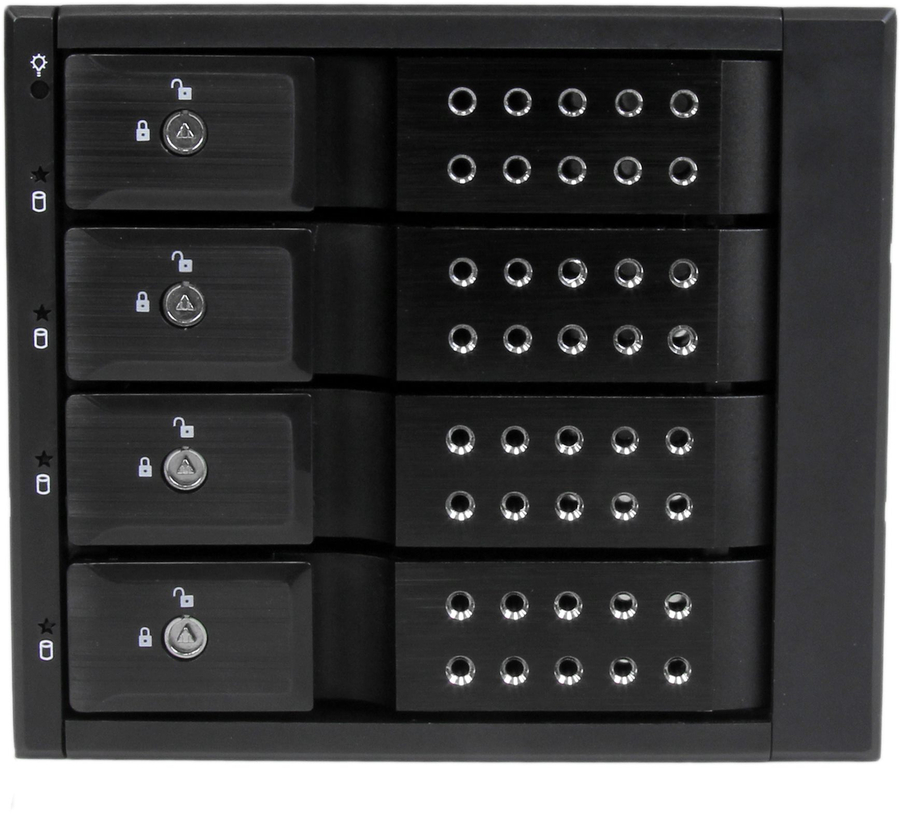

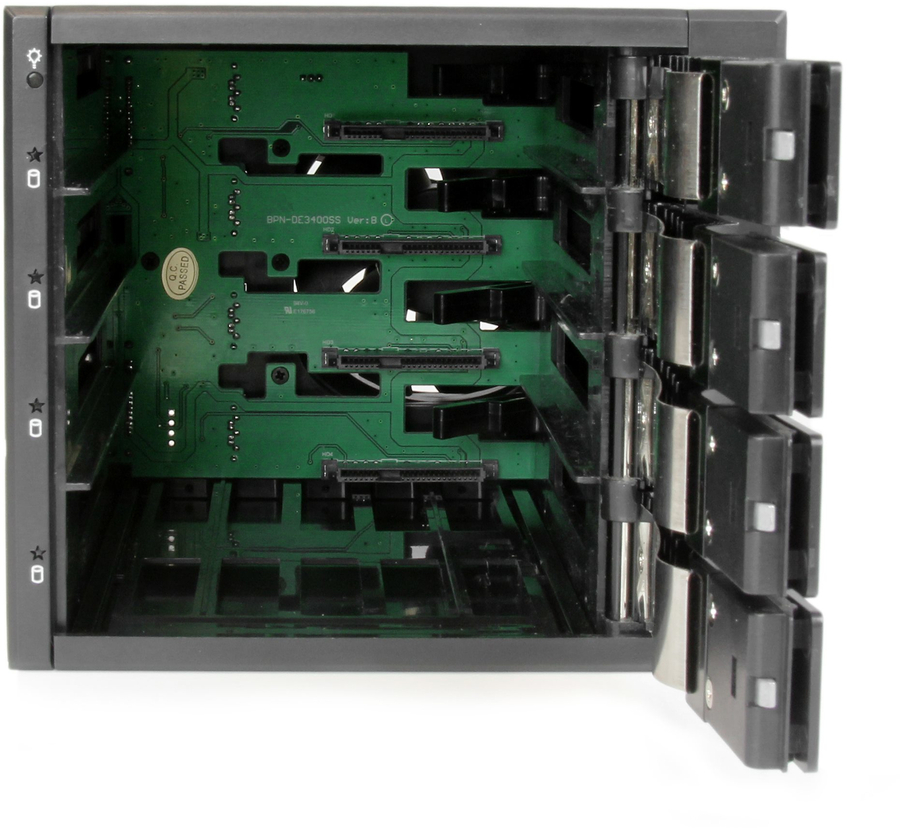

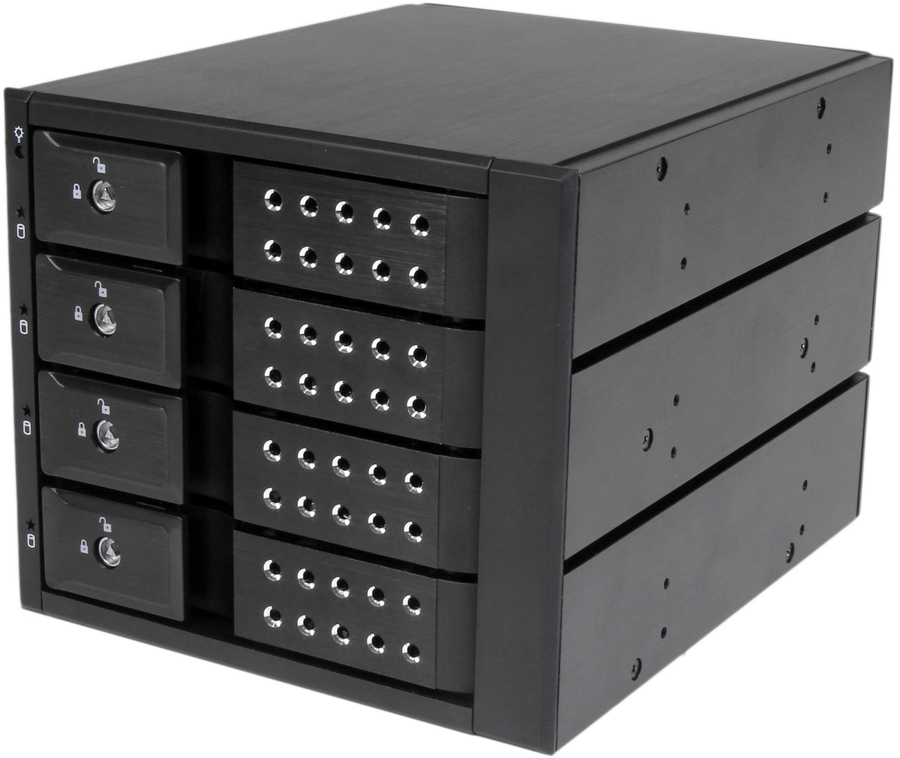

Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps
The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

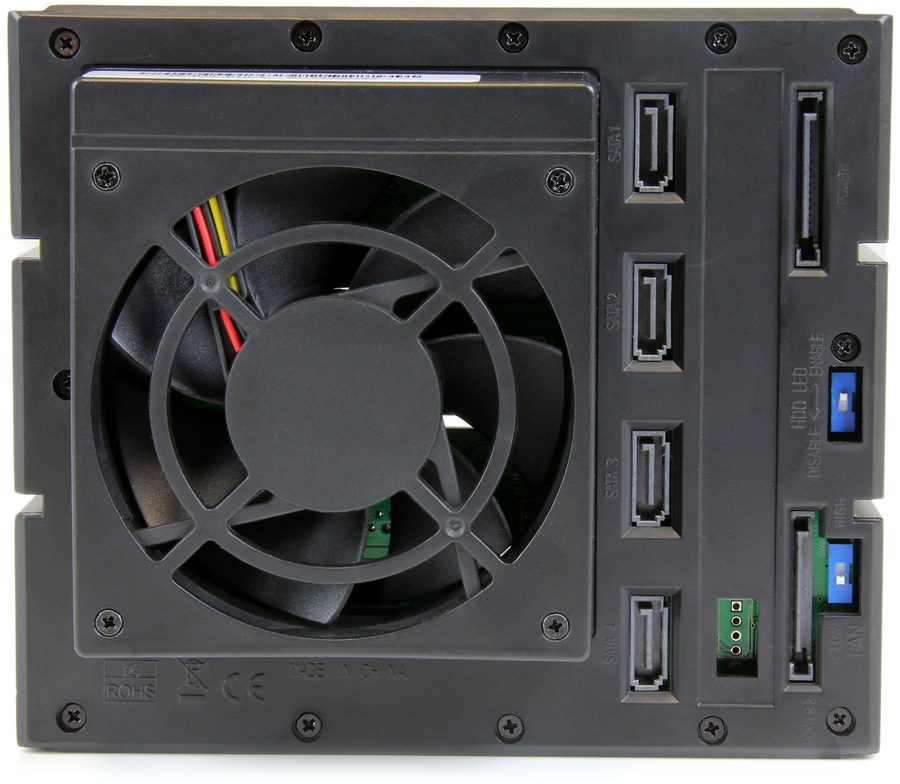

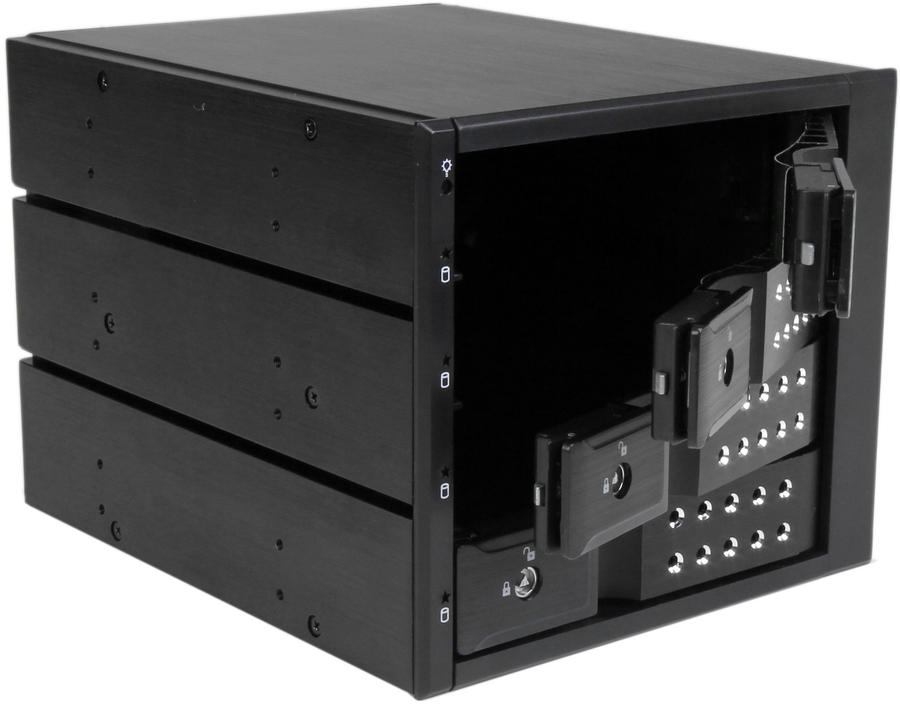

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
|
|
Features |
|
Product colour |
Black |
|
Material |
Aluminium |
|
Hot-swap |
Yes |
|
Number of fans |
1 fan(s) |
|
Fan diameter |
7 cm |
|
Data transfer rate |
6 Gbit/s |
|
LED indicators |
Activity, Power |
|
Key lock |
Yes |
|
Certification |
CE, FCC |
|
Ports & interfaces |
|
External SATA ports quantity |
4 |
|
Weight & dimensions |
|
Width |
145 mm |
|
Depth |
197 mm |
|
Height |
124 mm |
|
Weight |
1.3 kg |
|
Packaging data |
|
Package width |
254 mm |
|
Package depth |
164 mm |
|
Package height |
180 mm |
|
Package weight |
1.59 kg |
|

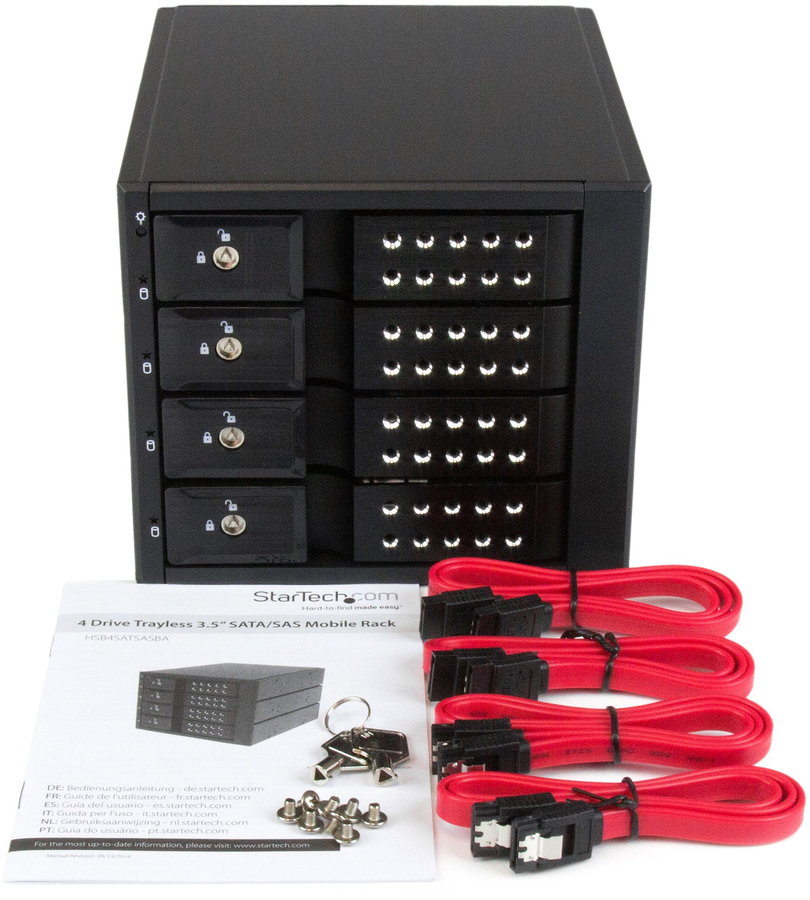

Packaging content |
|
Cables included |
SATA |
|
Screws included |
Yes |
|
Manual |
Yes |
|
Operational conditions |
|
Storage temperature (T-T) |
-20 - 65 °C |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Operating relative humidity (H-H) |
5 - 85% |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
6 pc(s) |
|
Master (outer) case width |
385 mm |
|
Master (outer) case length |
516 mm |
|
Master (outer) case height |
281 mm |
|
Harmonized System (HS) code |
84733080 |
