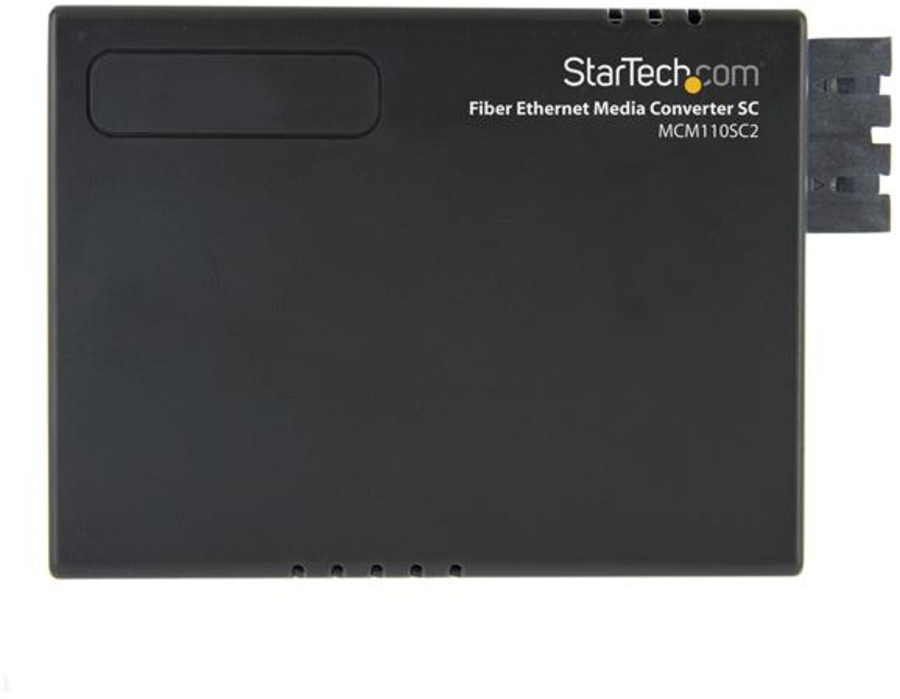

StarTech 6561.68-Foot 10/100 Fiber to Ethernet Media Converter Multi Mode SC
|
|
Price: $105.00
Manufacturer:
StarTech
StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58123388
|
MCM110SC2
|
65030835626 |
Active
|
Details
|
General Information |
|
Summary |
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion |
|
Network |
|
Maximum data transfer rate |
100 Mbit/s |
|
Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Flow control support |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Auto-negotiation |
Yes |
|
Duplex system |
Full, Half |
|
Performance |
|
Maximum transfer distance |
2000 m |
|
Wavelength |
1310 nm |
|
Wavelength-division multiplexing (WDM) |
No |
|
Fiber mode structure |
Multi-mode |
|
Mean time between failures (MTBF) |
65000 h |
|
Features |
|
Internal |
No |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
Ports & interfaces |
|
Fiber optic connector |
SC |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|

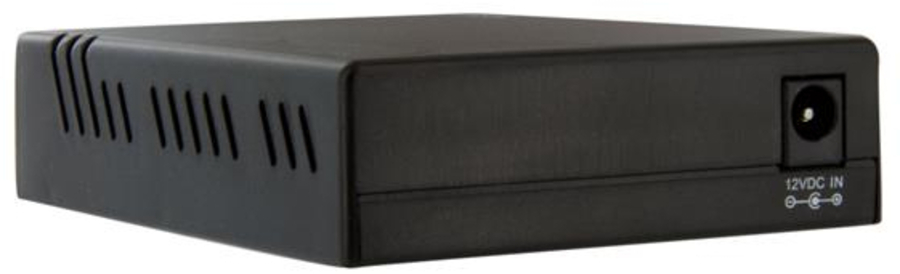

DC-in jack |
Yes |
|
Power |
|
Input voltage |
115 V |
|
Output voltage |
12 V |
|
Output current |
0.2 A |
|
Power over Ethernet (PoE) |
No |
|
Power plug type |
Type M |
|
Weight & dimensions |
|
Width |
75 mm |
|
Depth |
95 mm |
|
Height |
20 mm |
|
Weight |
90.5 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|

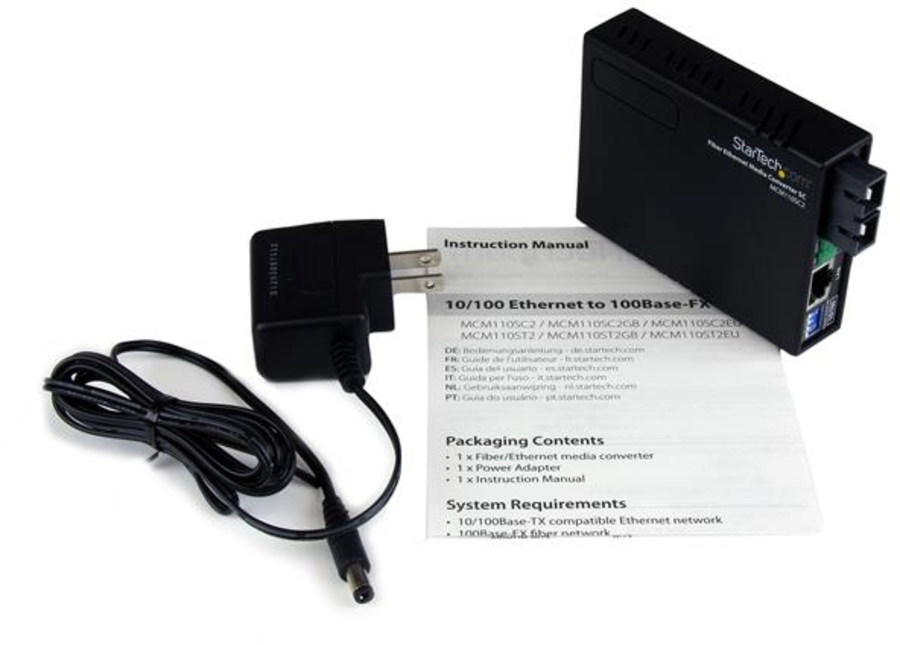

Packaging content |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Packaging data |
|
Package width |
63 mm |
|
Package depth |
148 mm |
|
Package height |
145 mm |
|
Package weight |
400 g |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
CE, FCC |
|
