StarTech 6561.68-Foot 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST
|
|
Price: $105.00
Manufacturer:
StarTech

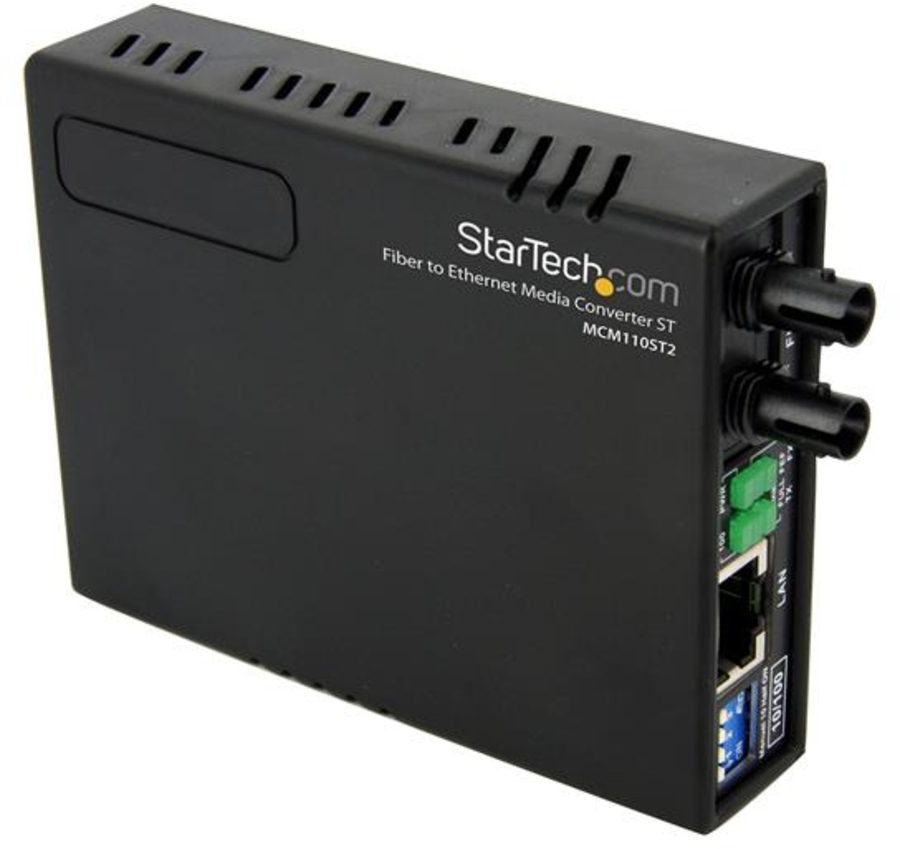

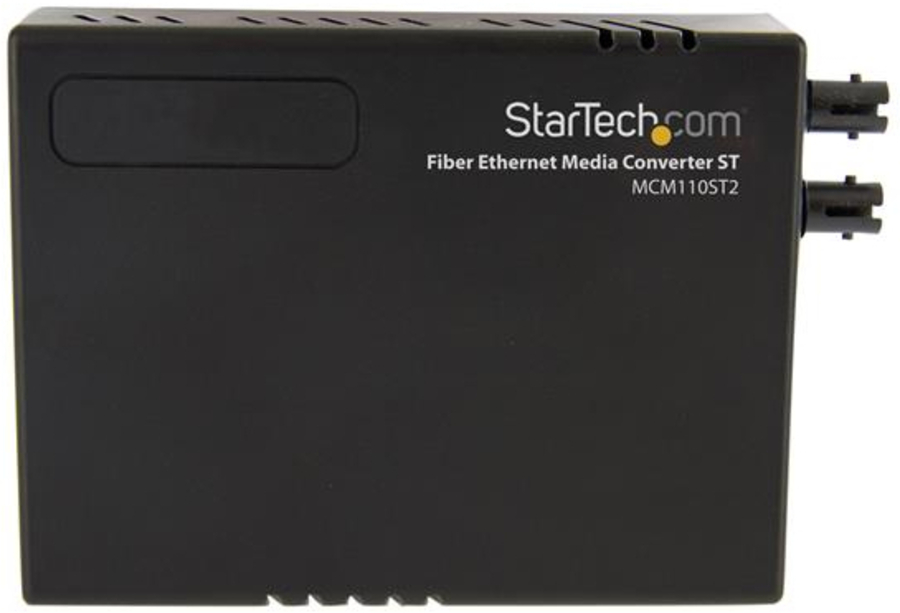

StarTech.com 10/100 Mbps Ethernet to Fiber Optic Media Converter - ST Multimode - 1310nm - 2km - Full/Half Duplex (MCM110ST2)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58123390
|
MCM110ST2
|
65030835633 |
Active
|
Details
|
General Information |
|
Summary |
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

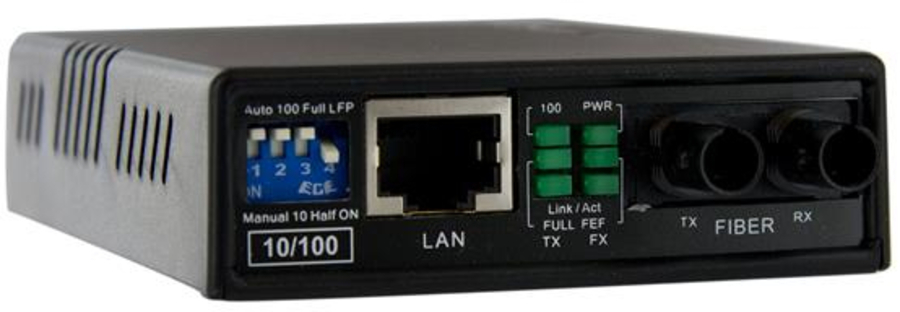

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion |
|
Network |
|
Maximum data transfer rate |
100 Mbit/s |
|
Converter input interface |
10Base-T, 100BASE-FX, 100Base-TX |
|
Networking standards |
IEEE 802.3, IEEE 802.3u |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Data transfer rate |
100 Mbit/s |
|
Duplex system |
Full, Half |
|
Performance |
|
Maximum transfer distance |
2000 m |
|
Wavelength |
1310 nm |
|
Wavelength-division multiplexing (WDM) |
No |
|
Sensitivity |
-31 dBmW |
|
Link budget |
11 dB |
|
Mean time between failures (MTBF) |
65000 h |
|
Features |
|
Internal |
No |
|
LED indicators |
Yes |
|
Housing material |
Plastic |
|
Ports & interfaces |
|
Fiber optic connector |
ST |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|

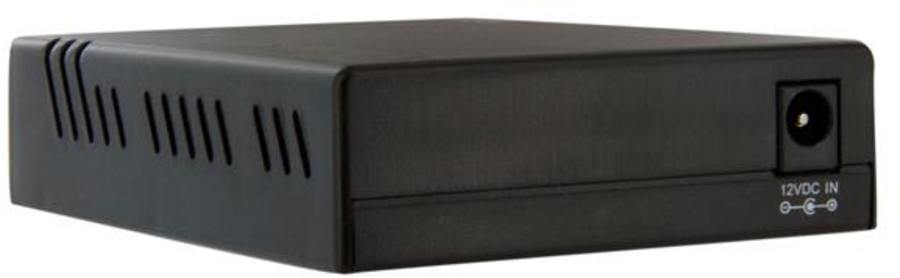

Power |
|
Input voltage |
100 - 240 V |
|
Output voltage |
12 V |
|
Output current |
0.2 A |
|
Power consumption (typical) |
2.4 W |
|
Power over Ethernet (PoE) |
No |
|
Power plug type |
Type M |
|
Weight & dimensions |
|
Width |
75 mm |
|
Depth |
95 mm |
|
Height |
20 mm |
|
Weight |
82 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|

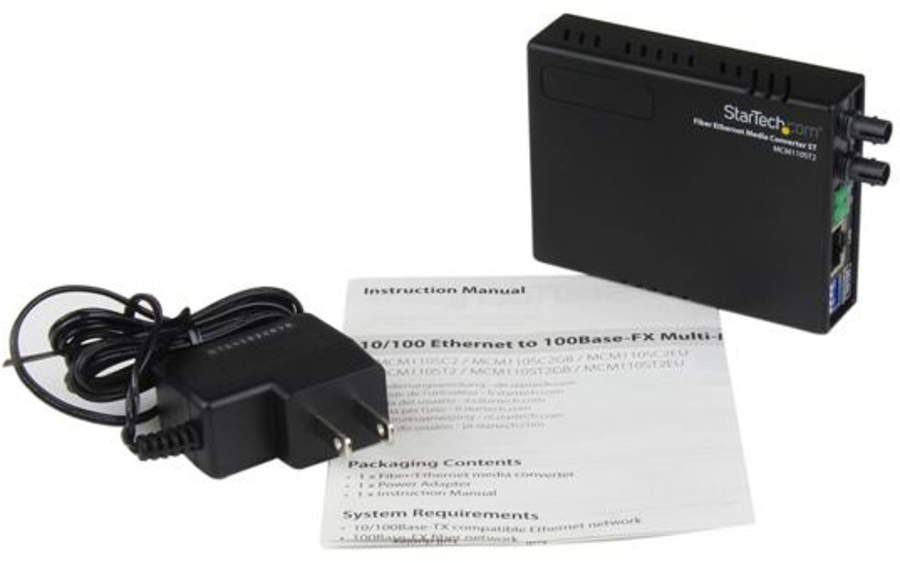

Packaging content |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Packaging data |
|
Package width |
145 mm |
|
Package depth |
175 mm |
|
Package height |
61 mm |
|
Package weight |
273 g |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
CE, FCC, TAA, REACH |
|
