External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA I/II/III

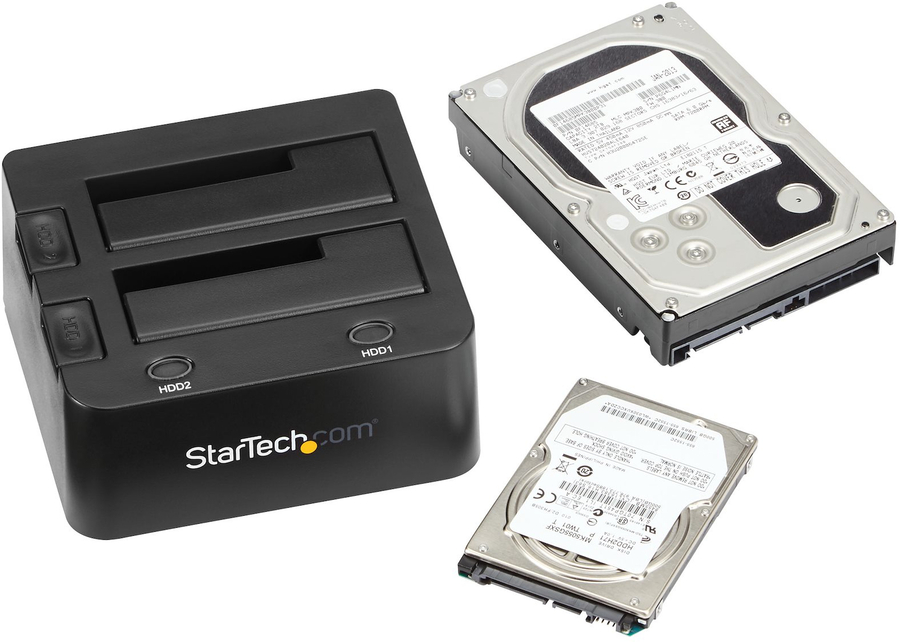

Our SDOCK2U33 Dual-Bay USB 3.0 to SATA Hard Drive Docking Station enables access to two 2.5/3.5" SATA drives from your desktop or laptop computer over USB 3.2 Gen 1 (5 Gbps).
The hard drive dock features power buttons for each individual drive, ensuring you can operate each hard drive separately. This gives you the freedom to hot-swap an idle drive while transferring data to another, saving you time.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
Compatible with Any Capacity or File Format
Compatible with 2.5" and/or 3.5" SATA HDDs and SSDs of any capacity and file format recognized by your host system. This dock works with any Operating System. Drivers and software are not required.
SDOCK2U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
|
|
Hard drive |
|
Storage media type |
HDD, SSD |
|
Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III |
|
Storage drive sizes supported |
2.5,3.5" |
|
Number of storage drives supported |
2 |
|
Maximum storage capacity |
8 TB |
|
Ports & interfaces |
|
Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
|
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity |
1 |
|
DC-in jack |
Yes |
|
Features |
|
Product colour |
Black |
|
Material |
Plastic |
|
Maximum data transfer rate |
6 Gbit/s |
|
Plug and Play |
Yes |
|
Number of connectivity cycles |
15000 |
|
LED indicators |
Activity, Power |
|
UASP support |
Yes |
|
Certification |
CE, FCC, REACH |
|
Cooling |
|
Built-in fan |
No |
|
Power |
|
AC input voltage |
100 - 240 V |
|
Input current |
1.3 A |
|
Output voltage |
12 V |
|
Output current |
3 A |
|
Software |
|
Windows operating systems supported |
Windows 2000, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home |
|
Linux operating systems supported |
Yes |
|
Mac operating systems supported |
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
|
Weight & dimensions |
|
Width |
132 mm |
|
Depth |
148 mm |
|
Height |
70 mm |
|
Weight |
513 g |
|
Packaging data |
|
Package width |
189 mm |
|
Package depth |
122 mm |
|
Package height |
212 mm |
|
Package weight |
1 kg |
|

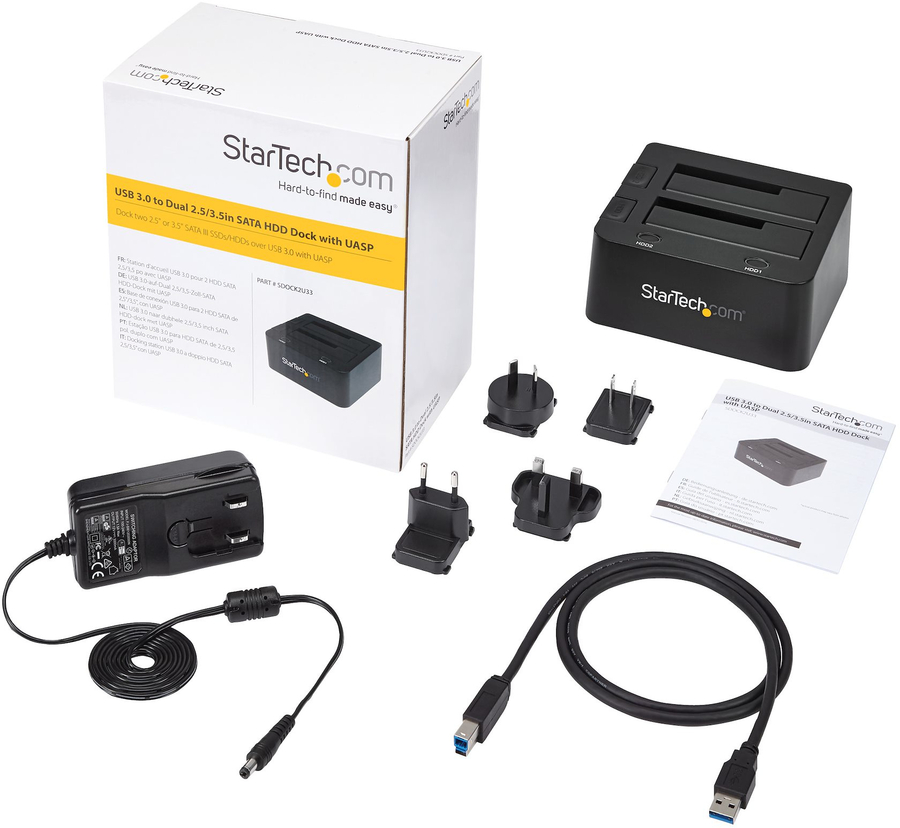

Packaging content |
|
AC adapter included |
Yes |
|
Cables included |
USB |
|
Manual |
Yes |
|
Included power plug types |
EU, NA, UK |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Storage temperature (T-T) |
-20 - 50 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Other features |
|
Chipset |
VIA/VLI – VL812, ASMedia ASM1053E |
|
Mean time between failures (MTBF) |
30000 h |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Master (outer) case width |
207 mm |
|
Master (outer) case length |
613 mm |
|
Master (outer) case height |
464 mm |
|
Products per master (outer) case |
10 pc(s) |
