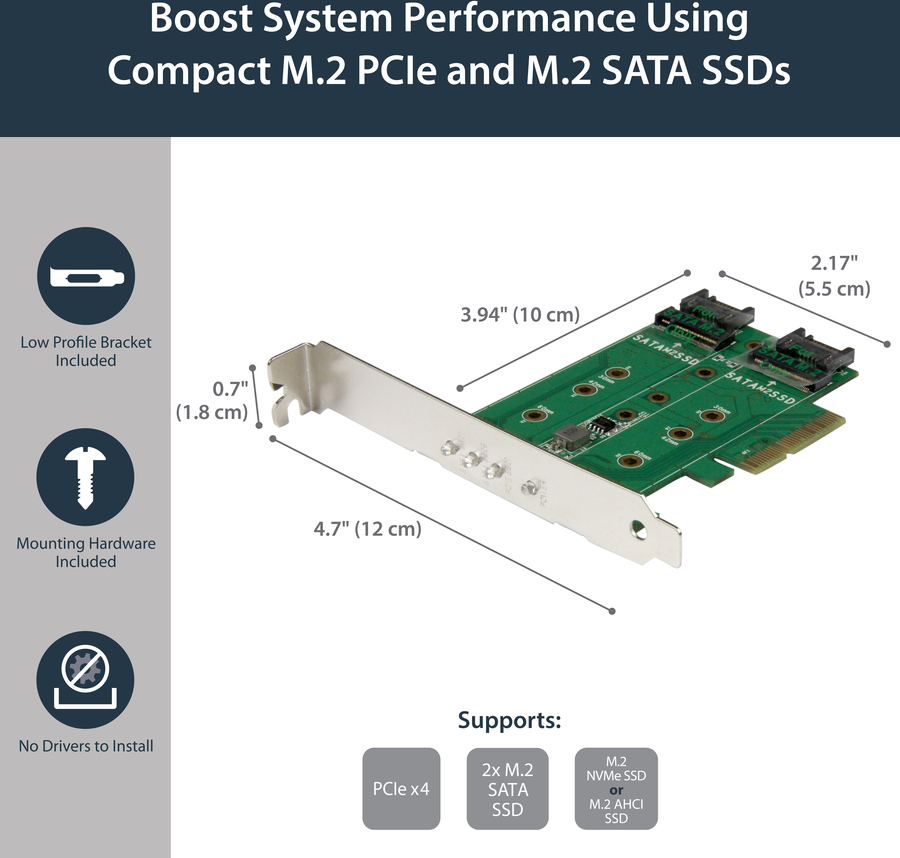

StarTech 3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe) M.2, 2 x SATA III M.2 - PCIe 3.0

Home :: I/O Devices :: Storage Controllers ::

Price: $53.00

Manufacturer: StarTech

StarTech.com M.2 Adapter - 3 Port - 1 x PCIe (NVMe) M.2 - 2 x SATA III M.2 - SSD PCIE M.2 Adapter - M2 SSD - PCI Express SSD

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
58123536	PEXM2SAT32N1	65030865708	Active

Details

General Information
Summary	Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer. Increase the storage of your desktop PC If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using. Optimize your computer’s performance When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time. Peace of mind, with simple and cost-effective data recovery Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes. Leverage the size and speed of M.2 drives This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case. Supports a wide range of drives You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230. The PEXM2SAT32N1 is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage
Ports & interfaces
Host interface	PCIe
Output interface	M.2, SATA
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 3.0
SATA revision	3.0
Internal SATA ports quantity	2
Port multiplier	No
Design
Internal	Yes

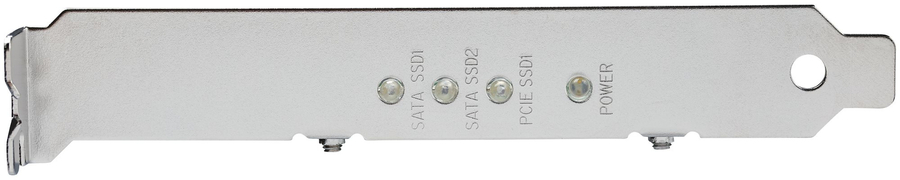

LED indicators	Yes
Mean time between failures (MTBF)	50000 h
Certification	CE, FCC, TAA, REACH
Features
Data transfer rate (max)	6 Gbit/s
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	20 mm
Depth	120 mm
Height	120 mm
Weight	65 g
Packaging data

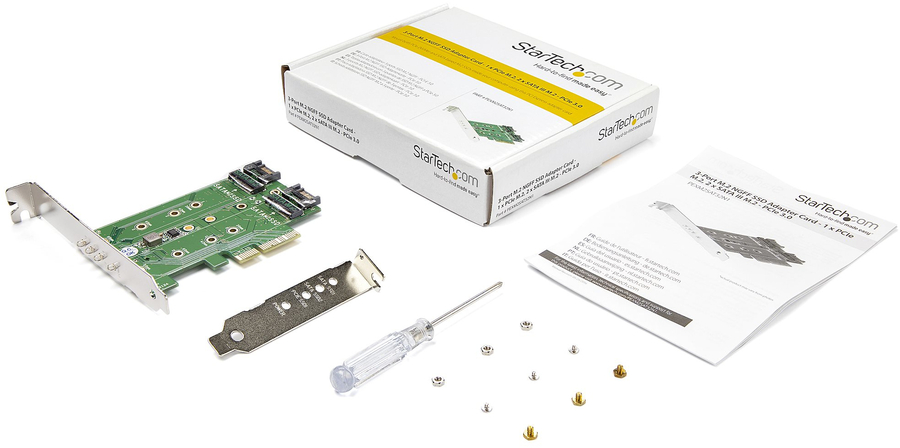

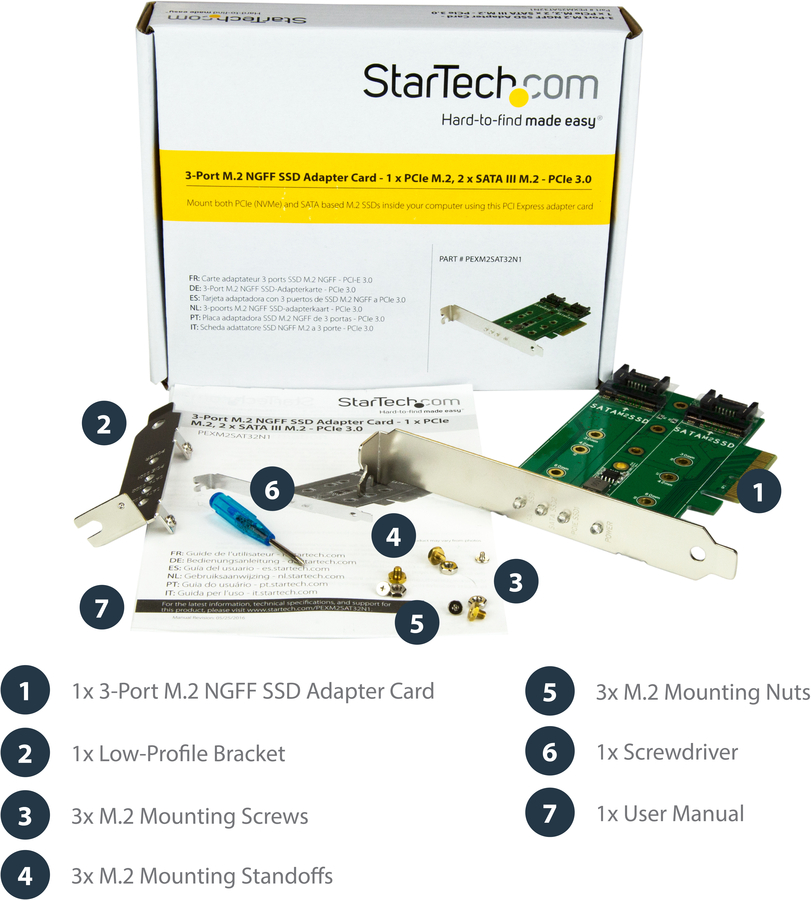

Mounting brackets included	Yes
Screws included	Yes
Quick installation guide	Yes
Package width	162 mm
Package depth	130 mm
Package height	32 mm
Package weight	127 g
Logistics data
Harmonized System (HS) code	84733020
Products per master (outer) case	100 pc(s)
Master (outer) case width	485 mm
Master (outer) case length	551 mm
Master (outer) case height	335 mm
