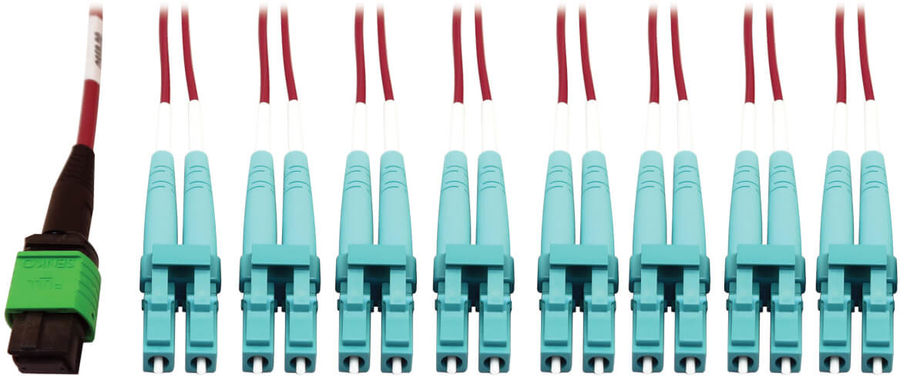

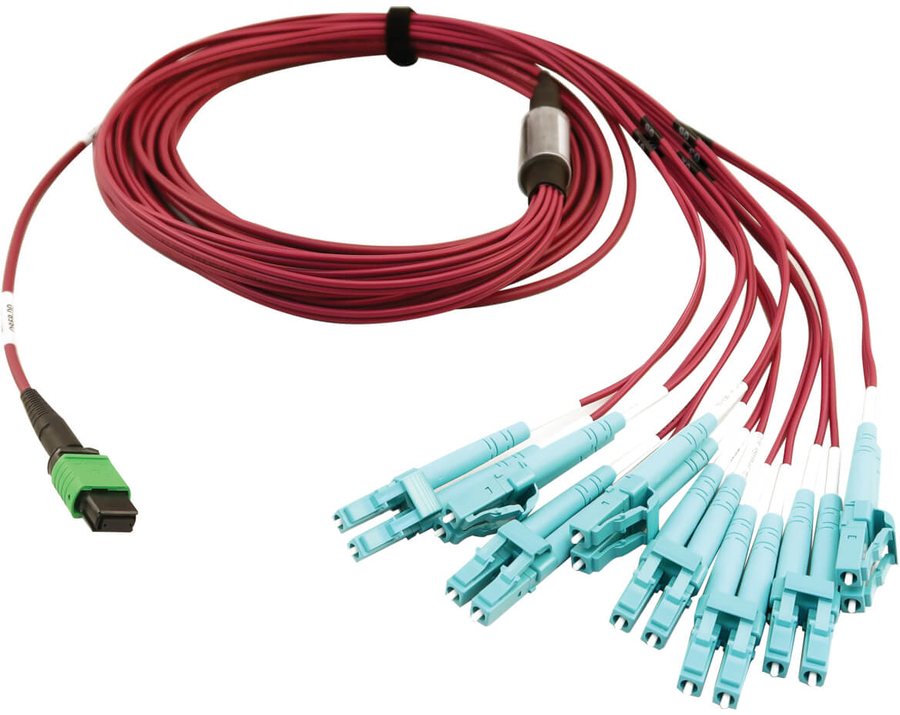

Tripp Lite 16.4-Foot 400G Multimode 50/125 OM4 Plenum Fiber Optic Breakout Cable, 16F MTP/MPO-APC to (x8) LC Duplex (F/M), Magenta
|
|
Price: $378.00
Manufacturer:
Tripp Lite
400G Multimode 50/125 OM4 Plenum Fiber Optic Breakout Cable, 16F MTP/MPO-APC to (x4) LC Duplex (F/M), Magenta, 5 m
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58123913
|
N846D-05M-16EMG
|
37332258366 |
Active
|
Details
|
General Information |
|
Summary |
400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 breakout cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards.

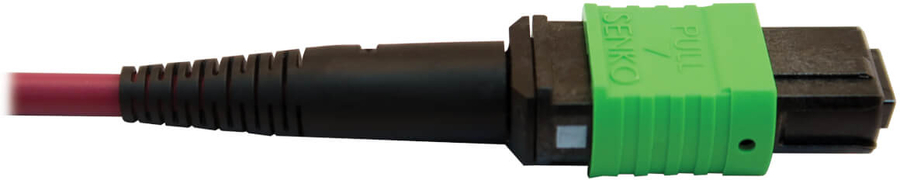

16-Fiber MTP/MPO Connector Designed for the Latest QSFP-DD Transceivers

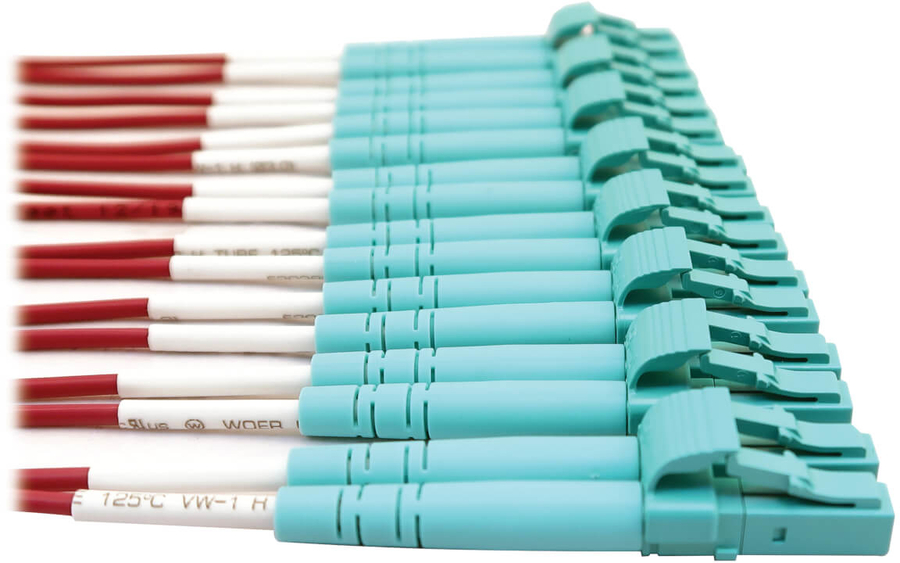

The MPO connector has a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers, making this cable an excellent solution for your high-density network application. The MPO connector is the same size as a standard SC connector, but 12 times denser, allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand. The LC duplex connectors are recommended for high-density feed-through cassettes with no splicing required.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts. |
|
Features |
|
Cable length |
5 m |
|
Cable type |
OFNP |
|
Connector 1 |
MTP |
|
Connector 2 |
8x LC |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Product colour |
Magenta |
|
Fibre optic type |
OM4 |
|
Full duplex |
Yes |
|
Core diameter |
50 µm |
|
Cladding diameter |
125 µm |
|
Fiber mode structure |
Multi-mode |
|
Data transfer rate |
400000 Gbit/s |
|
Certificates |
|
Compliance certificates |
REACH, RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Weight & dimensions |
|
Bending radius |
2 cm |
|
Packaging data |
|
Package width |
177.8 mm |
|
Package depth |
12.7 mm |
|
Package height |
228.6 mm |
|
Package weight |
130 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
10037332258363 |
|
Country of origin |
China |
|
Master (outer) case width |
154.9 mm |
|
Harmonized System (HS) code |
8544.70.0000 |
|
Master (outer) case length |
185.4 mm |
|
Master (outer) case height |
149.9 mm |
|
Master (outer) case gross weight |
1.39 kg |
|
Products per master (outer) case |
10 pc(s) |
|
