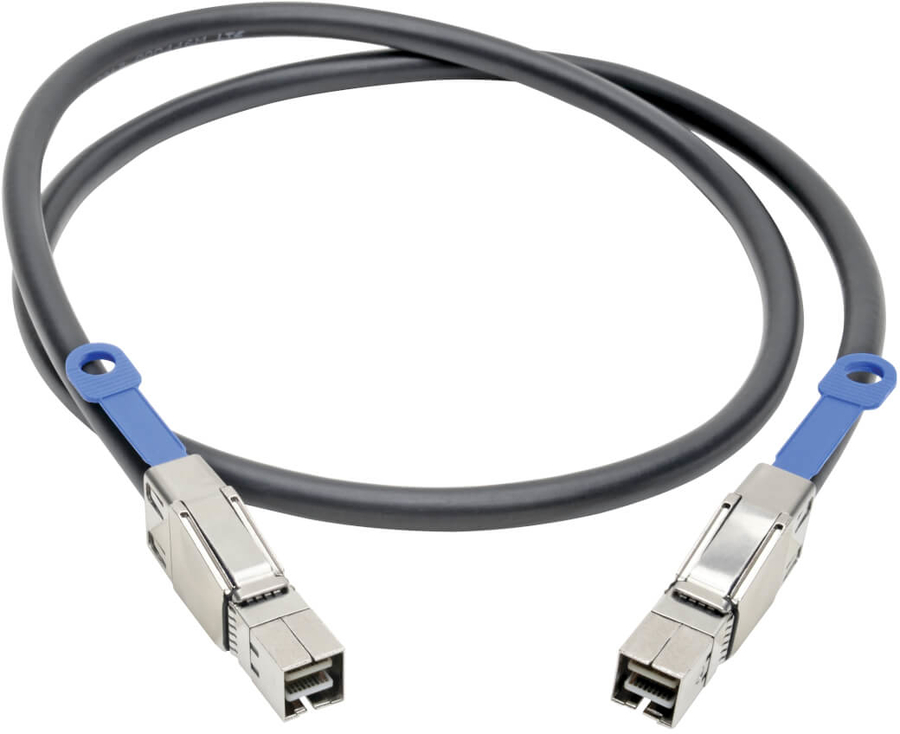

Tripp Lite 3.3-Foot Mini-SAS External HD Cable - SFF-8644 to SFF-8644, 12 Gbps
|
|
Regularly: $137.00
On Sale: $131.52
Sale Ends:
August 2nd, 2025
Manufacturer:
Tripp Lite
Mini-SAS External HD Cable - SFF-8644 to SFF-8644, 12 Gbps, 1M (3.28 ft.)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58123964
|
S528-01M
|
37332222305 |
Active
|
Details
|
General Information |
|
Summary |
High-Performance Mini-SAS External HD Cable for Connecting SAN Devices

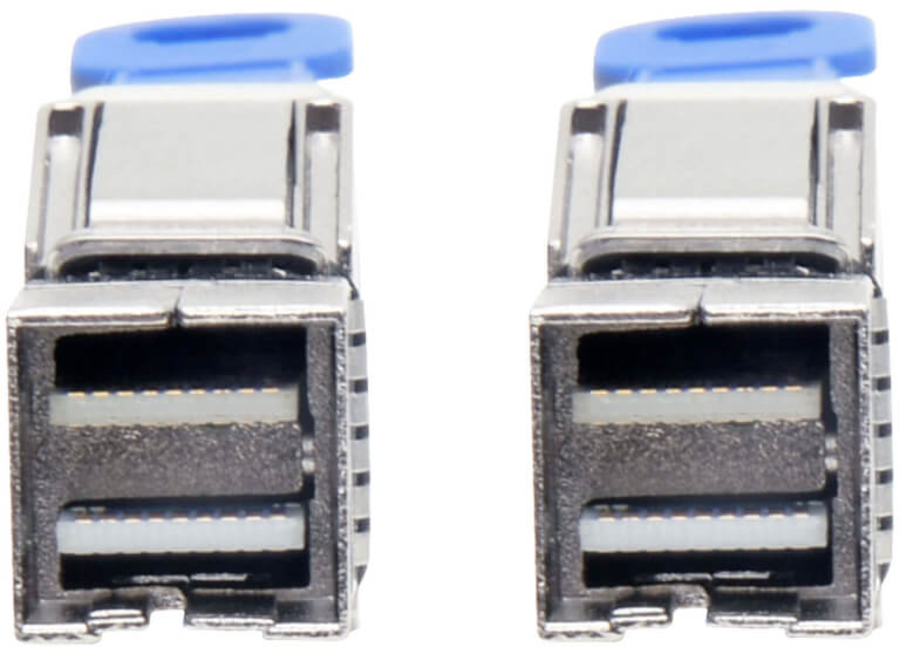

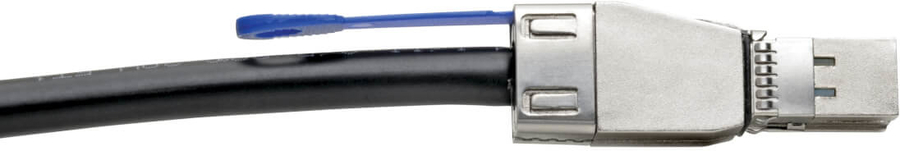

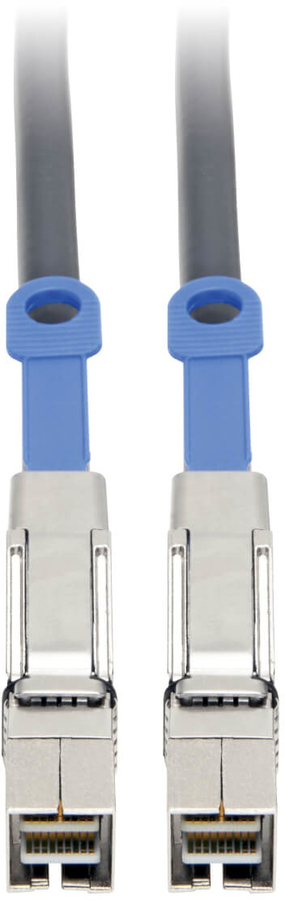

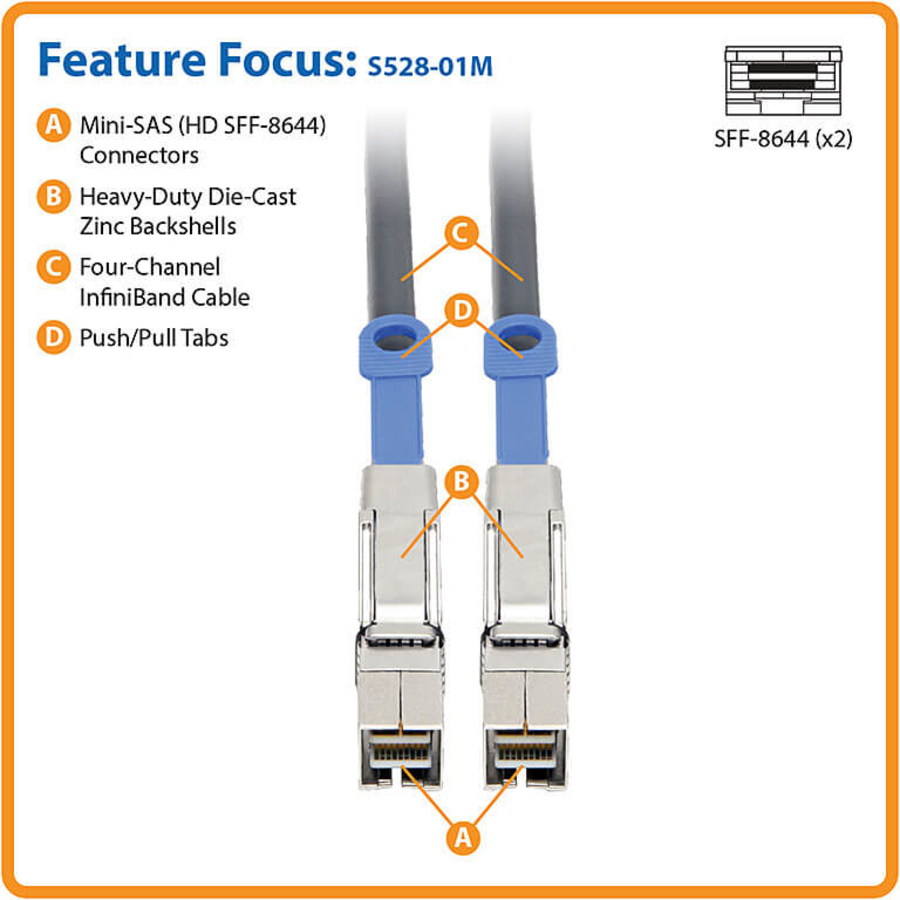

This four-channel InfiniBand cable connects two storage devices with external mini-SAS HD SFF-8644 connectors, such as 12G RAID controllers, SATA hard drives, enclosures and JBOD devices. It supports data transfer rates up to 12 Gbps, which is faster than eSATA, USB 3.0 and Thunderbolt cables. The high-density connectors are surrounded by durable die-cast zinc that is compatible with shielded external connectors. Protective caps defend the connectors against dust and damage. Convenient pull-tabs make it easy to disconnect the cable in crowded racks and other applications. The S528-01M is backward compatible with previous SAS versions to ensure compatibility with your devices. |
|
Features |
|
Cable length |
1 m |
|
Connector 1 |
SFF-8644 |
|
Connector 2 |
SFF-8644 |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector gender |
Male/Male |
|
Data transfer rate (max) |
12 Gbit/s |
|
Product colour |
Black, Blue, Metallic |
|
AWG wire size |
28 |
|
Weight |
140 g |
|
Packaging data |
|
Package width |
100 mm |
|
Package depth |
12.7 mm |
|
Package height |
135 mm |
|
Package weight |
140 g |
|
Logistics data |
|
Harmonized System (HS) code |
8544.42.9090 |
|
Country of origin |
China |
|
Master (outer) case GTIN (EAN/UPC) |
10037332222302 |
|
Master (outer) case width |
190 mm |
|
Master (outer) case length |
25.4 mm |
|
Master (outer) case height |
300 mm |
|
Master (outer) case gross weight |
1.42 kg |
|
Products per master (outer) case |
10 pc(s) |
|
