Projector |
|
Projector brightness |
3200 ANSI lumens |
|
Projection technology |
DMD |
|
Projector native resolution |
UHD 4K (3840x2160) |
|
Contrast ratio (typical) |
12000:1 |
|
Screen size compatibility |
762 - 7620 mm (30 - 300") |
|
Projection distance |
1 - 10.96 m |
|
Number of colours |
1.07 billion colours |
|
Horizontal scan range |
15 - 129 kHz |
|
Vertical scan range |
23 - 240 Hz |
|
Keystone correction, vertical |
-40 - 40° |
|
Matrix type |
DMD |
|
Light source |
|
Light source type |
Lamp |
|
Service life of light source |
6000 h |
|
Service life of light source (economic mode) |
20000 h |
|
Lamp power |
203 W |
|

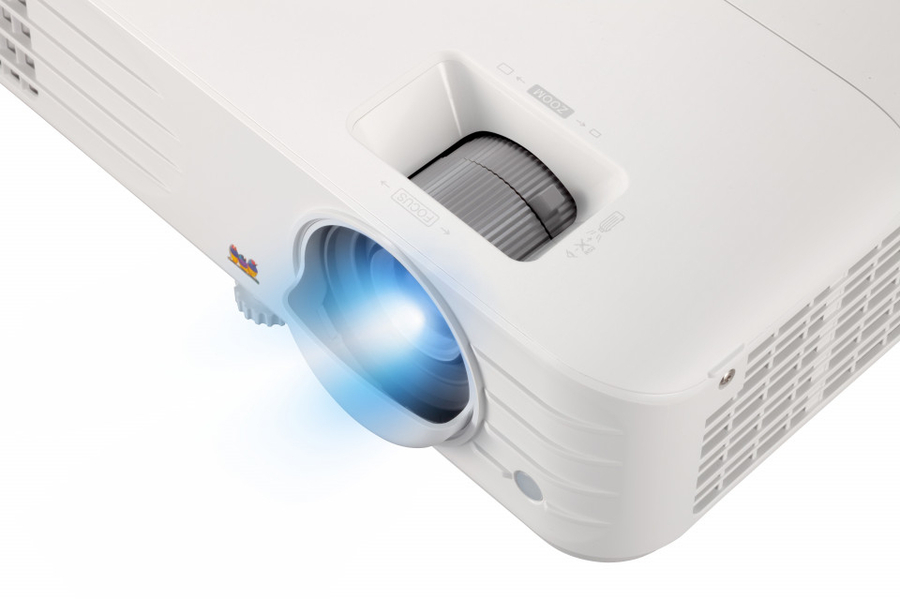

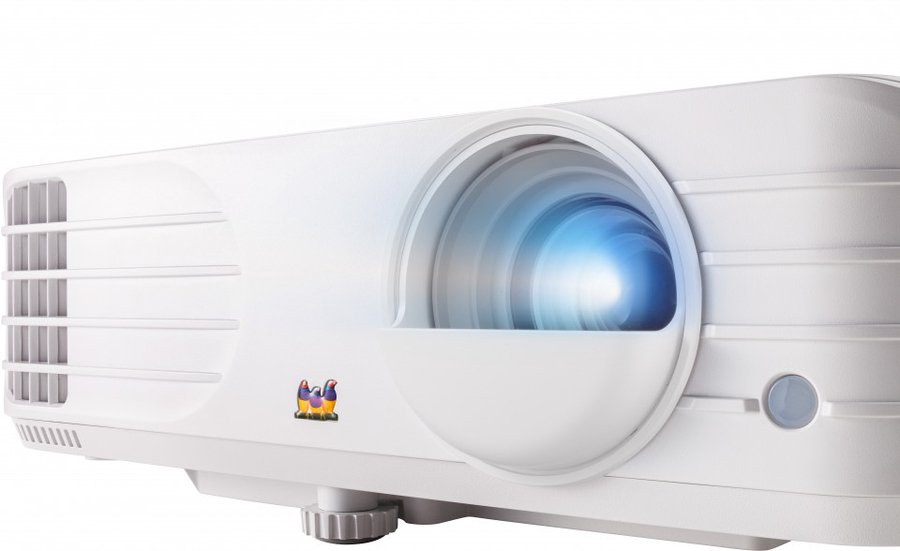

Lens system |
|
Focus |
Auto |
|
Focal length range |
15.843 - 17.445 mm |
|
Aperture range (F-F) |
2 - 2.05 |
|
Zoom capability |
Yes |
|
Zoom ratio |
1.1:1 |
|
Digital zoom |
2x |
|
Optical zoom |
1.1x |
|
Throw ratio |
1.5-1.65 |
|
Offset |
120% |
|
Video |
|
Analog signal format system |
NTSC, PAL, SECAM |
|
Full HD |
Yes |
|
3D |
No |
|
Supported graphics resolutions |
640 x 480 (VGA), 1920 x 1200 (WUXGA), 3840 x 2160 |
|
Supported video modes |
720p, 1080i, 1080p, 2160p |
|

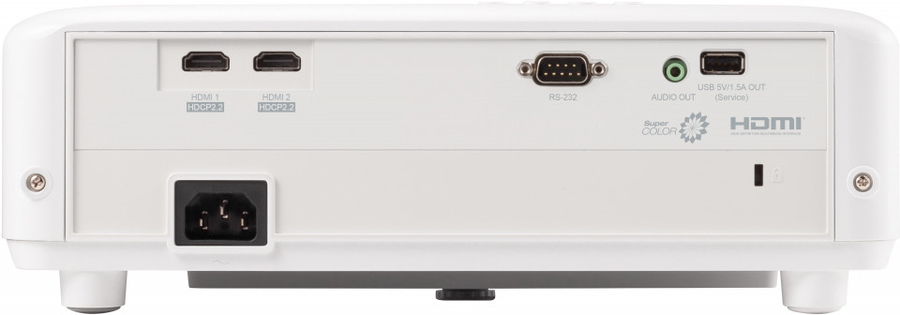

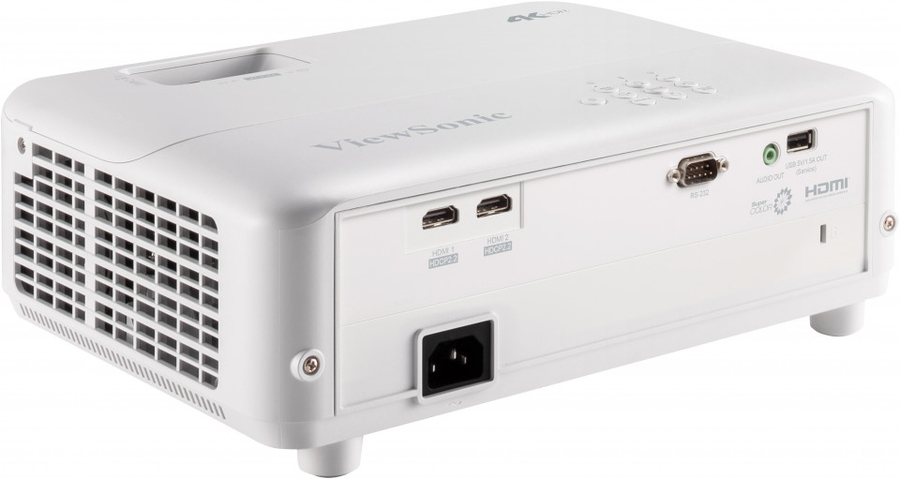

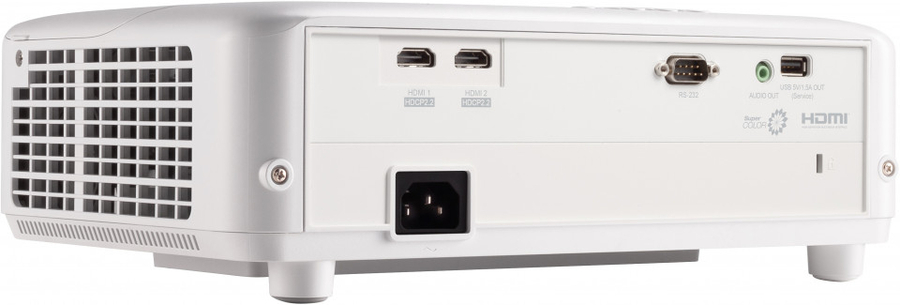

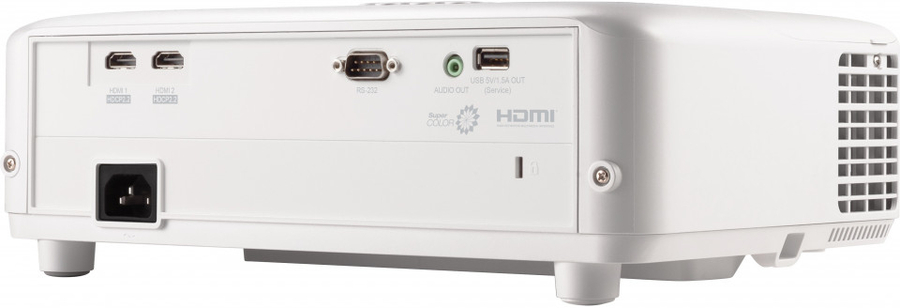

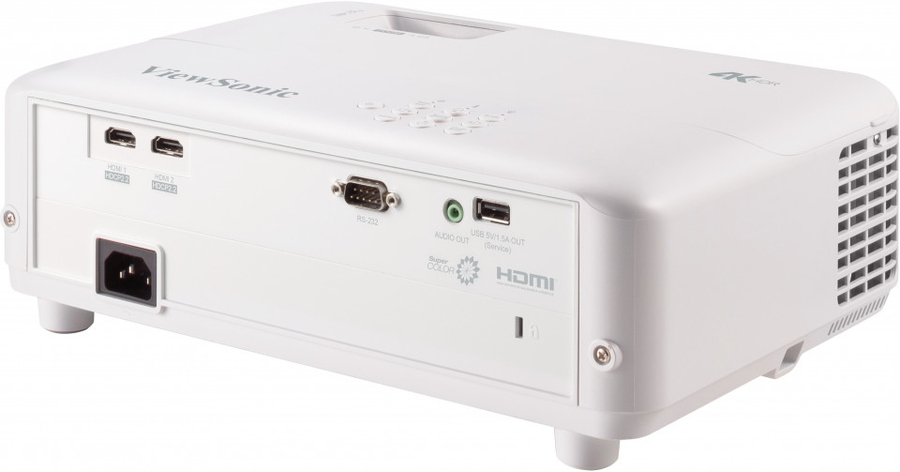

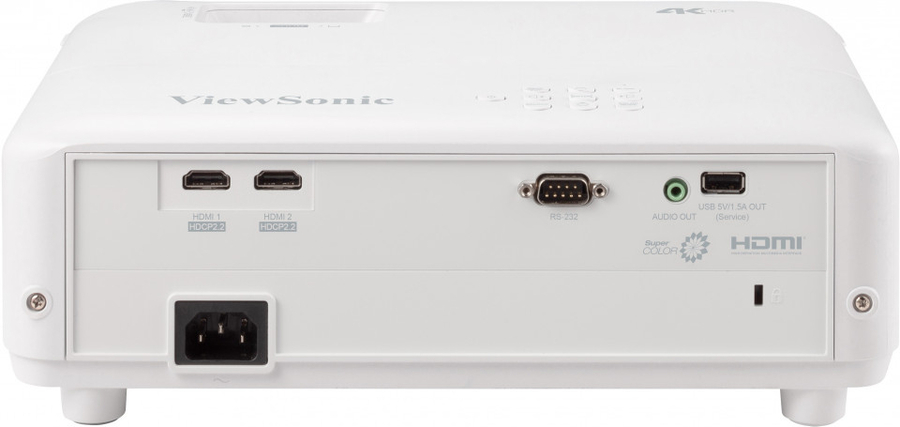

Ports & interfaces |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
2 |
|
Composite video in |
0 |
|
Component video (YPbPr/YCbCr) in |
0 |
|
DVI port |
No |
|
Audio (L/R) in |
0 |
|
Serial interface type |
RS-232 |
|
HDMI connector type |
Full-size |
|
HDMI version |
2.0b |
|
S-Video inputs quantity |
0 |
|
USB 2.0 ports quantity |
1 |
|
PC Audio out |
Yes |
|
Mobile High-Definition Link (MHL) |
No |
|
AC (power) in |
Yes |
|
Network |
|
Smart TV |
No |
|
Ethernet LAN |
No |
|
Wi-Fi |
No |
|
Storage |
|
Card reader integrated |
No |
|
Features |
|
Noise level |
31 dB |
|
Noise level (economic mode) |
27 dB |
|
HDCP |
Yes |
|
On Screen Display (OSD) |
Yes |
|
On Screen Display (OSD) languages |
Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
|
Number of OSD languages |
23 |
|
Separate H/V sync |
Yes |
|
High Dynamic Range (HDR) supported |
Yes |
|
High Dynamic Range (HDR) technology |
Hybrid Log-Gamma (HLG) |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
RMS rated power |
10 W |
|
Design |
|
Product type |
Standard throw projector |
|
Market positioning |
Gaming |
|
Product colour |
White |
|
Placement |
Desktop |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
290 W |
|
Power consumption (standby) |
0.5 W |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50 - 60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Weight & dimensions |
|
Weight |
2.8 kg |
|
Width |
312 mm |
|
Depth |
222 mm |
|
Height |
108 mm |
|
Packaging content |
|

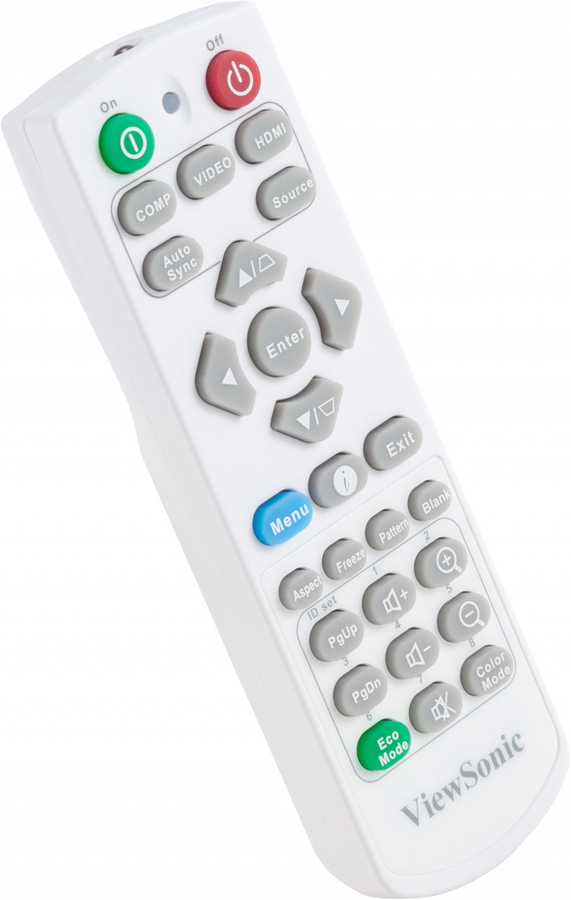

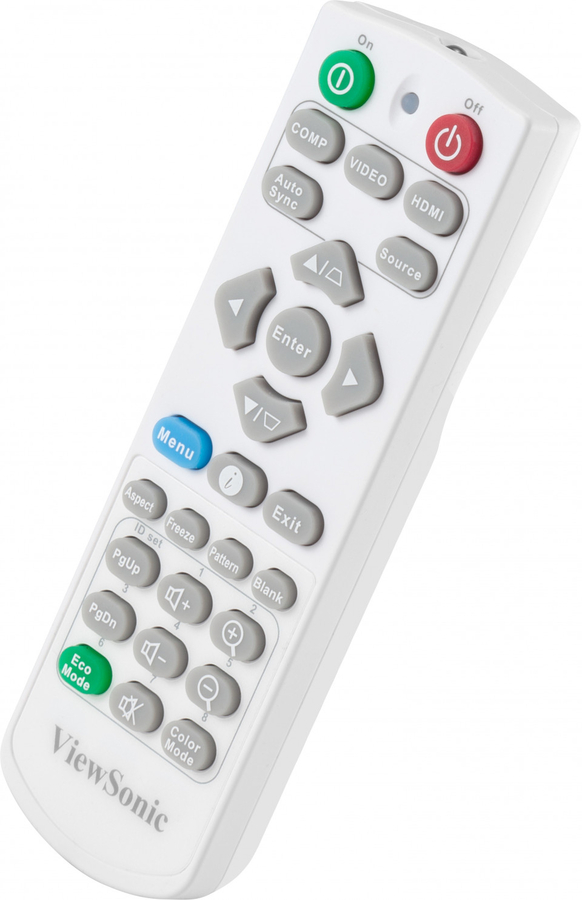

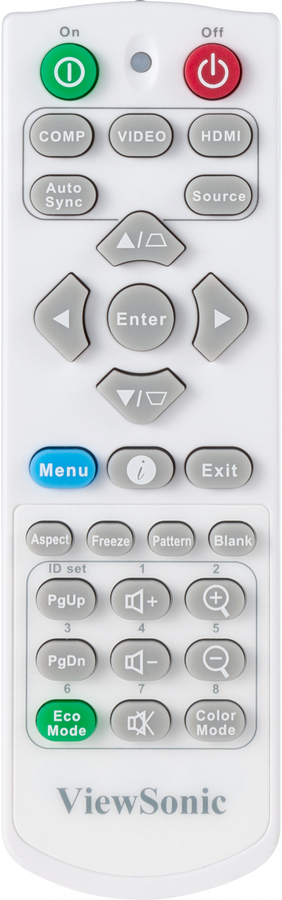

Remote control included |
Yes |
|
Cables included |
AC |
|
Logistics data |
|
Quantity per pack |
1 pc(s) |
|
Harmonized System (HS) code |
85286200 |
|
Technical details |
|
Refresh rates |
240 Hz |
