General Information |
|
Summary |

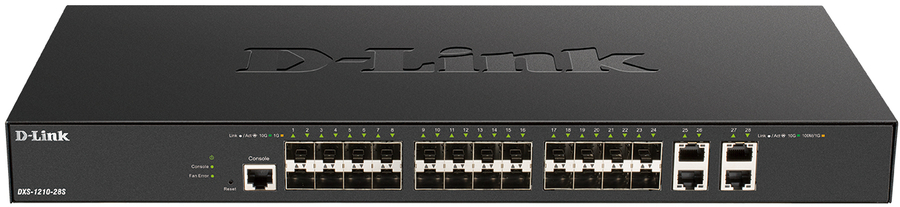

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
4 |
|
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
|
10G Ethernet (copper) ports quantity |
4 |
|
SFP+ module slots quantity |
24 |
|
Console port |
RJ-45 |
|
Network |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
|
10G support |
Yes |
|
Cable types supported |
Cat6, Cat6a, Cat7 |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Spanning tree protocol |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
4094 |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
560 Gbit/s |
|
Throughput |
416.64 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Security |
|
Access Control List (ACL) |
Yes |
|
Access Control List (ACL) rules |
256 |
|
IGMP snooping |
Yes |
|
Protocols |
|
Management protocols |
SNMP v1/v2c/v3 |
|
GARP VLAN Registration Protocol (GVRP) |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
No |
|
Form factor |
1U |
|
Product colour |
Black |
|
LED indicators |
Activity, Link, Speed |
|
Number of fans |
2 fan(s) |
|
Power |
|
AC input voltage |
100 - 240 V |
|
Power consumption (max) |
85.7 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
441 mm |
|
Depth |
209.5 mm |
|
Height |
44 mm |
|
Weight |
3.27 kg |
|
Packaging content |
|
Manual |
Yes |
|
Certificates |
|
Certification |
CE Class A
FCC Class A
VCCI Class A
IC
BSMI |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
