CyberPower OL6KSTF Rack UPS
|
|
Price: $2937.00
Manufacturer:
CyberPower
OL6KSTF, 6 kVA, 6 kW, 200-240 V, 50-60 Hz, 6x NEMA 5-20R, 1x Hardwire Terminal Block, 2U
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58124497
|
OL6KSTF
|
649532620180 |
Active
|
Details
|
General Information |
|
Summary |

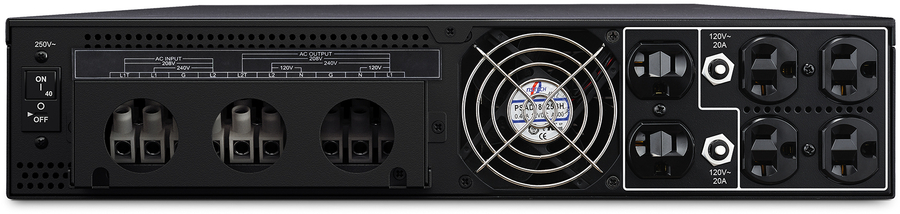

The CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 208 V input voltage originating from utility power, a UPS, or a generator to 120 V output. The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters. The OL6KSTF has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.
A Three Year Warranty ensures that this device has passed our highest quality standards in design, assembly, material and workmanship.
Step-Down Transformer
The step-down transformer provides IT managers the ability to support both 120 V and 208 V output requirements. With six (6) NEMA 5-20R outlets available, users will have sufficient outlets to connect multiple 120 V devices running at 15 A and/or 20 A. If additional outlets are needed, CyberPower has a number of different Power Distribution Units (PDU) making it easy to address your specific outlet needs.
NEMA L6-30P Plug
A 6 foot, 3 wire, power cord with a NEMA L6-30P plug to ROJ (removed outer jacket) is included.
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.
Frequency Supported
The OL6KSTF has the flexibility to support both 50 Hz and 60 Hz output.
Over Temperature Protection
Protects the OL6KSTF from damage if the internal heat exceeds safe operating parameters.
Resettable Input and Output Circuit Breakers
Convenient, resettable switches that provide protection from an input or output overload and faults.
Three Year Warranty
CyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details. |
|
Features |
|
AC outlets quantity |
7 AC outlet(s) |
|
AC input voltage |
200 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
AC output voltage |
120, 208 V |
|
Input current (max) |
30 A |
|
Overheat protection |
Yes |
|
Load capacity |
6000 VA |
|
Housing colour |
Black |
|
Rack mounting |
Yes |
|
Rack capacity |
2U |
|
Brand compatibility |
CyberPower |
|
Compatible products |
OL3000RTXL2UHV
OL6KRT
OL6000RT3UPDU
OL6KRT3UHW
OL8000RT3U
OL8000RT3UPDU
OL8KRT3UHW
OL10000RT3U
OL10000RT3UPDU
OL10KRTHW
PR5000LCDRTXL5U |
|
Certification |
UL 1778 5th Ed., CSA C22.2 NO.107.3-05 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 15000 m |
|
Weight & dimensions |
|
Width |
433 mm |
|
Depth |
609 mm |
|
Height |
88 mm |
|
Weight |
43.3 kg |
|
Package width |
599 mm |
|
Package depth |
899 mm |
|
Package height |
330 mm |
|
Package weight |
58.1 kg |
|
Technical details |
|
Compliance certificates |
RoHS |
|
