Extended Cable | DP 1.2 | HBR2 | Thunderbolt 3 Compatible

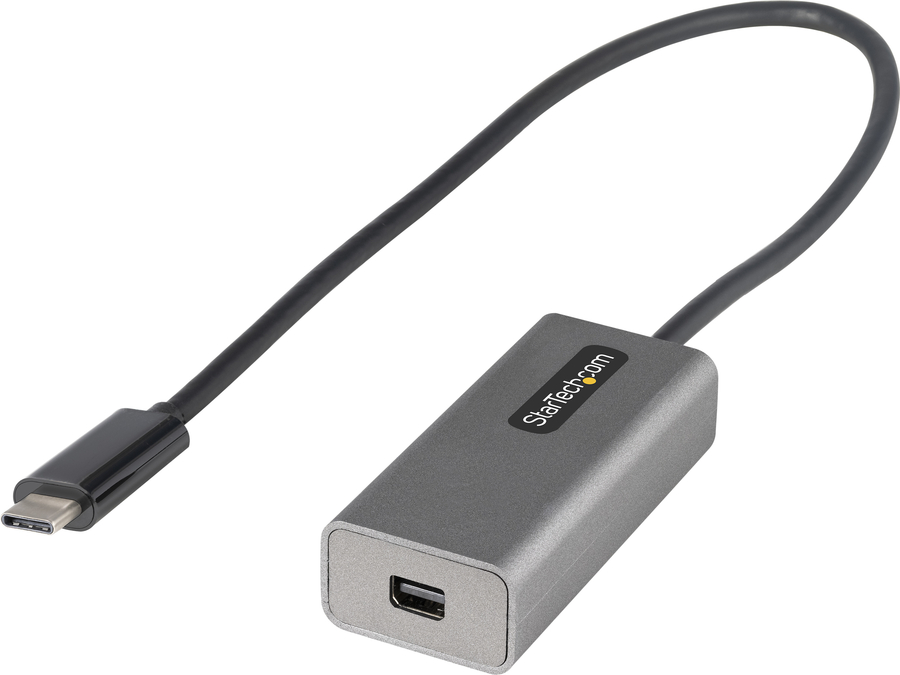

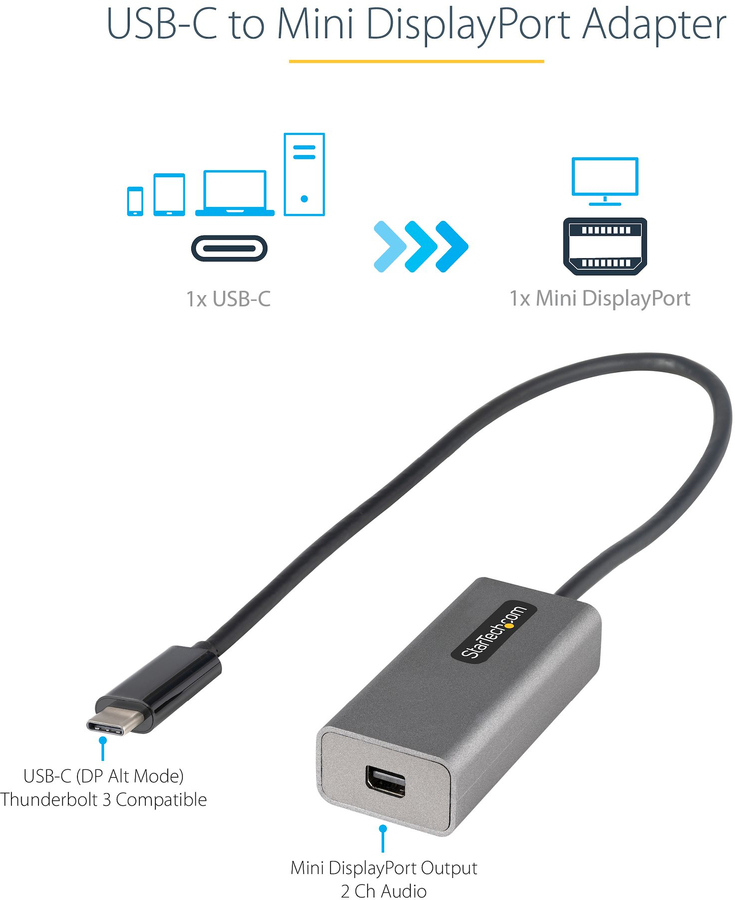

This USB-C™ to Mini DisplayPort™ adapter enables you to output mDP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.

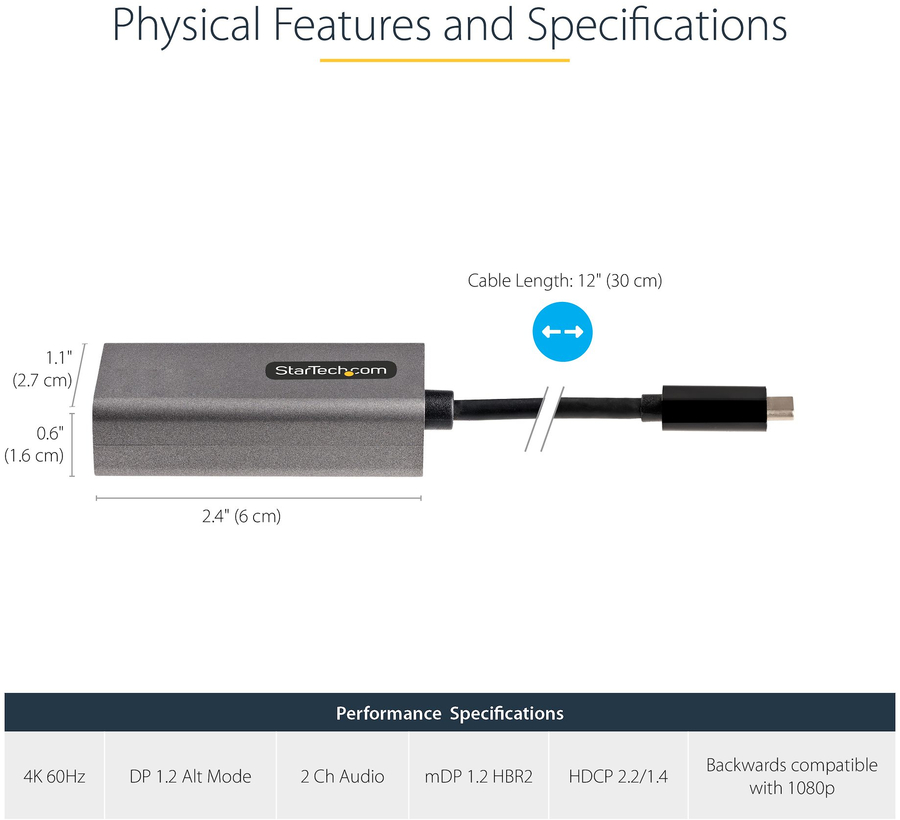

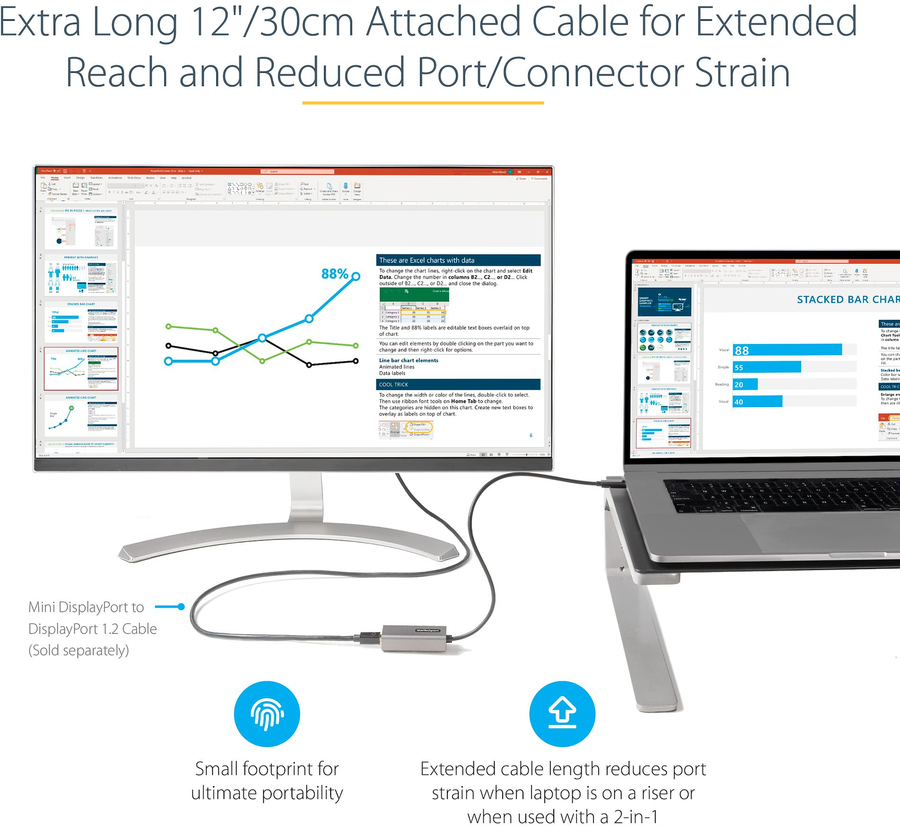

Extended Cable Length
This USB C adapter dongle is equipped with an extra-long 12" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.
Ultra HD 4K Resolution
The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.
Plus, the USB-C to Mini DP adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
Ultimate Portability
This USB C to mDP video converter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.
The CDP2MDPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:

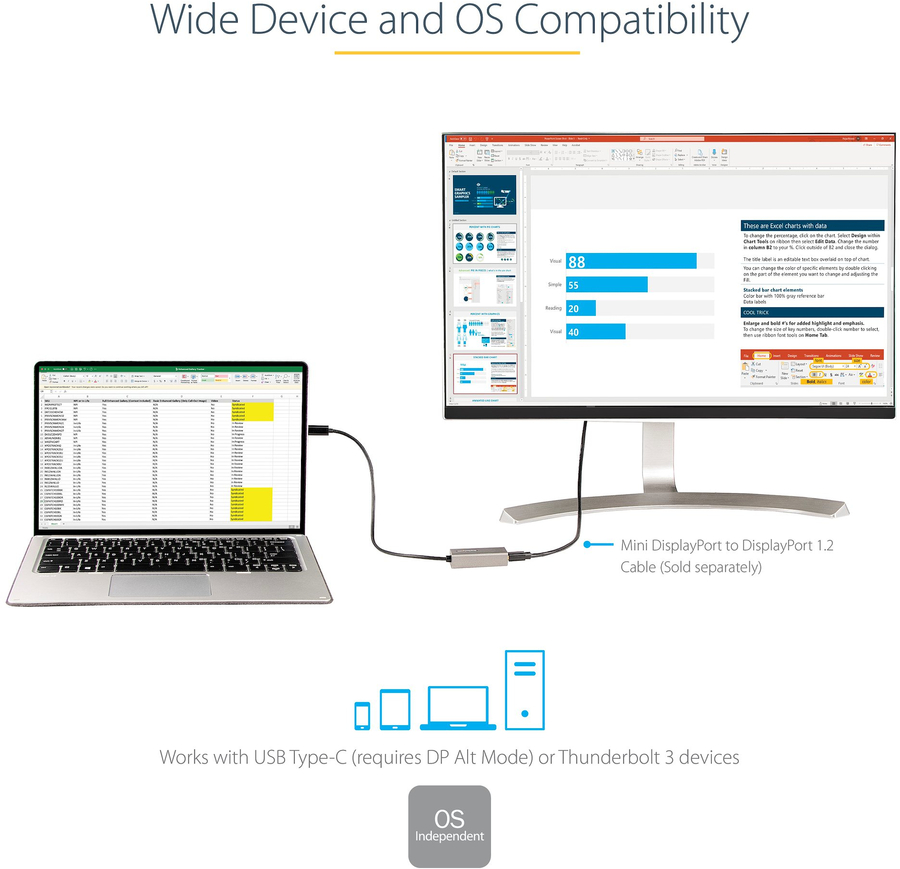

• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
The StarTech.com Advantage
|
|
Performance |
|
DVI output |
No |
|
HDMI output |
No |
|
DisplayPort output |
No |
|
Number of displays supported |
1 |
|
USB connector type |
USB Type-C |
|
USB connector gender |
Male |
|
USB connector form factor |
Straight |
|
Mini DisplayPorts quantity |
1 |
|
HDCP |
Yes |
|
DisplayPort version |
1.2 |
|
Maximum resolution |
3840 x 2160 pixels |
|
Refresh rate at maximum resolution |
60 Hz |
|
Audio output channels |
2.0 channels |
|
Design |
|
Product colour |
White |
|
Housing material |
Plastic |
|
Integrated USB cable |
Yes |
|
Weight & dimensions |
|
Width |
27 mm |
|
Depth |
400 mm |
|
Height |
16 mm |
|
Weight |
28 g |
|
USB cable length |
0.306 m |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Packaging data |
|
Package width |
125 mm |
|
Package depth |
225 mm |
|
Package height |
18 mm |
|
Package weight |
31 g |
|
Technical details |
|
Compliance certificates |
CE, RoHS |
|
Sustainability compliance |
Yes |
|
Logistics data |
|
Products per master (outer) case |
200 pc(s) |
|
Master (outer) case width |
325 mm |
|
Master (outer) case length |
500 mm |
|
Master (outer) case height |
210 mm |
|
Harmonized System (HS) code |
84733020 |
