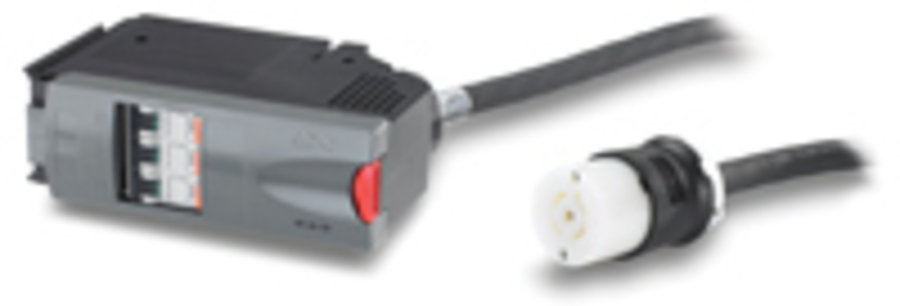

APC 34-Foot IT Power Distribution Module 3 Pole 5 Wire 20A L21-20

Home :: Cables ::


Regularly: $993.00
On Sale: $953.28    Sale Ends: May 26th, 2024

Manufacturer: APC

208V In / 120V Out, 20A, NEMA L21-20 Out, 1040cm

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58125576 PDM3520L2120-1040 - Active

Details

General Information
Summary APC IT Power Distribution Module 3 Pole 5 Wire 20A L21-20 1040cm

A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.

Built-in Web/SNMP management

Full-featured management via a Web browser as well as comprehensive management from a Network Management System.

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Smallest footprint

Minimizes your real estate expenses

System mobility

PDU equipment can easily be relocated to accommodate a changing data center environment.

Local and web-based monitoring

Status available to customers both in the data center and remotely

Multiple distribution options

Superior design flexibility enables a wide range of customer requirements to be addressed.

LED status indicators

Quickly understand unit and power status with visual indicators.

Modular Power Accessories Features & Benefits

Safety

Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection

Manageability

Power monitoring

Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost

Quick status information LEDs

Access status information about the performance of the Power Distribution Module

Convenience

Toolless installation of breakers

Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required

Global product offering

Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world
Design
PDU types Metered, Monitored
Product colour Black
Ports & interfaces
AC outlets quantity 1 AC outlet(s)
Output connections 1 x NEMA L21-20
Features
LED indicators Yes
Cable length 10.4 m
Certification UL
Management features
Management platform Web/SNMP
Power
Nominal input voltage 208 V
AC input frequency 60 Hz
Nominal output voltage 120 V
Maximum input current per phase 20 A
Maximum total current draw per phase 20 A
Weight & dimensions
Dimensions (WxDxH) 445 x 406 x 127 mm
Weight 4.29 kg
Packaging data
Package dimensions (WxDxH) 445 x 406 x 127 mm
Package weight 5.2 kg
Technical details
Sustainability certificates RoHS
