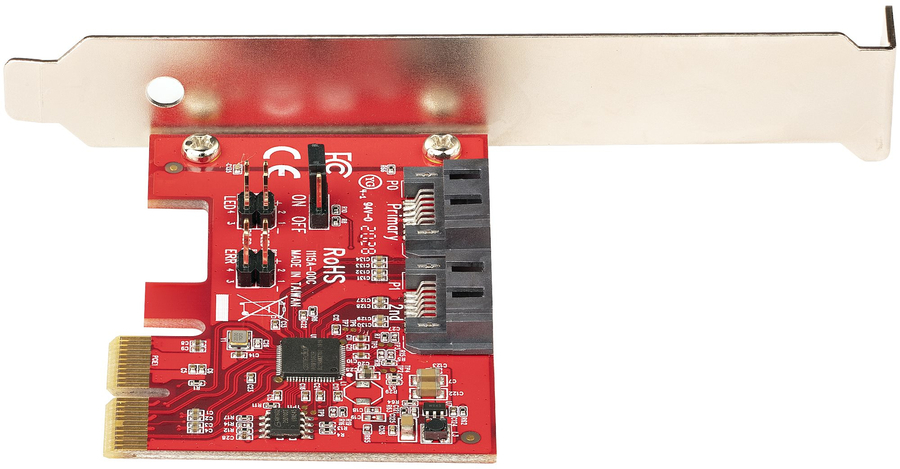

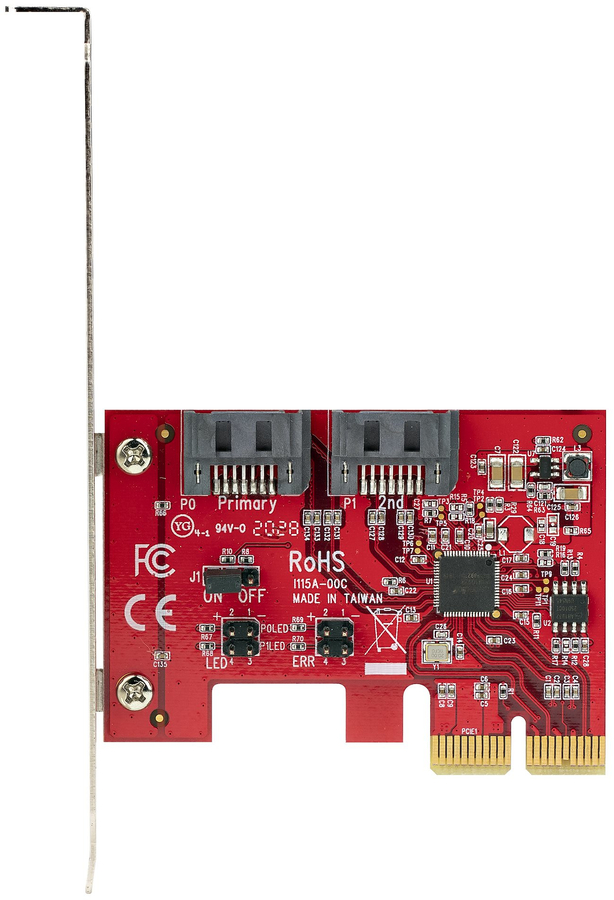

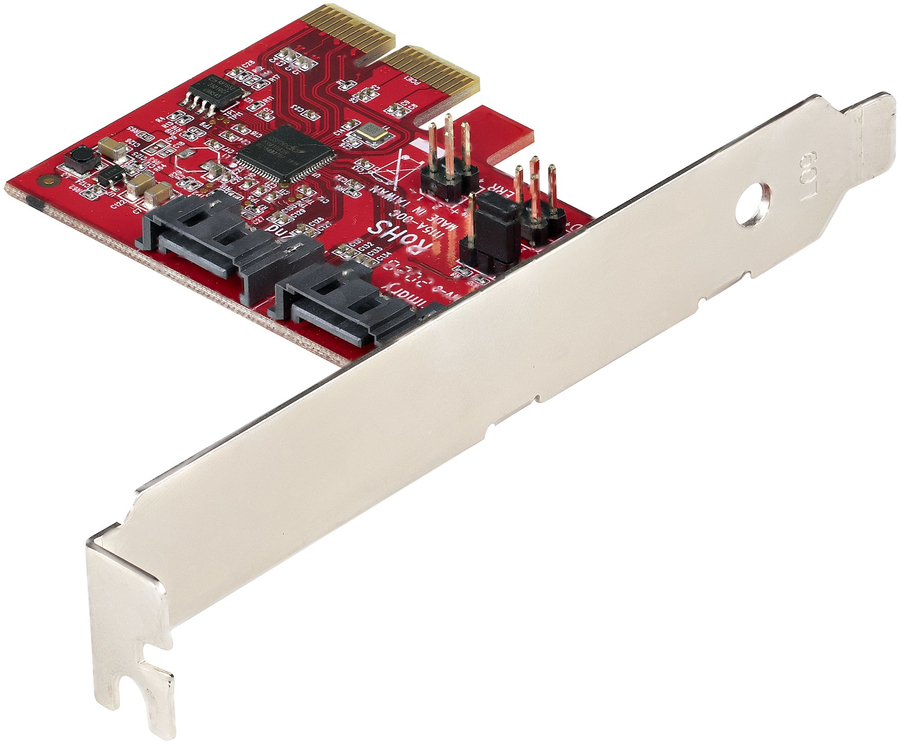

StarTech 2 Port SATA 6 Gbps PCI Express SATA Controller Card

Home :: I/O Devices :: Storage Controllers ::

Regularly: ~~$76.00~~
On Sale: $72.96 Sale Ends: April 26th, 2024

Manufacturer: StarTech

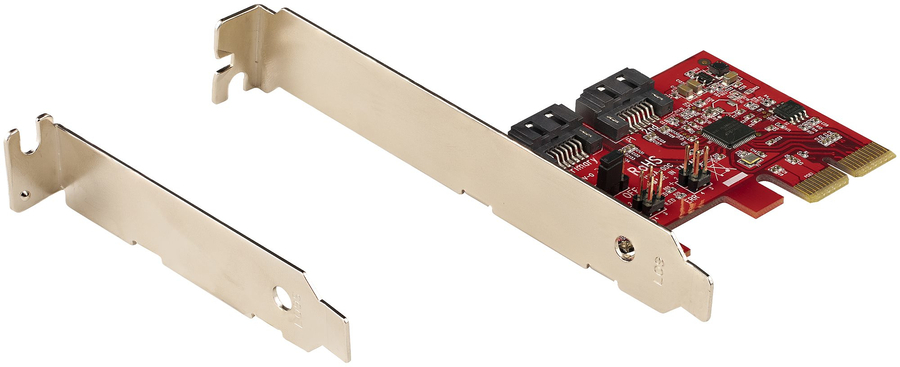

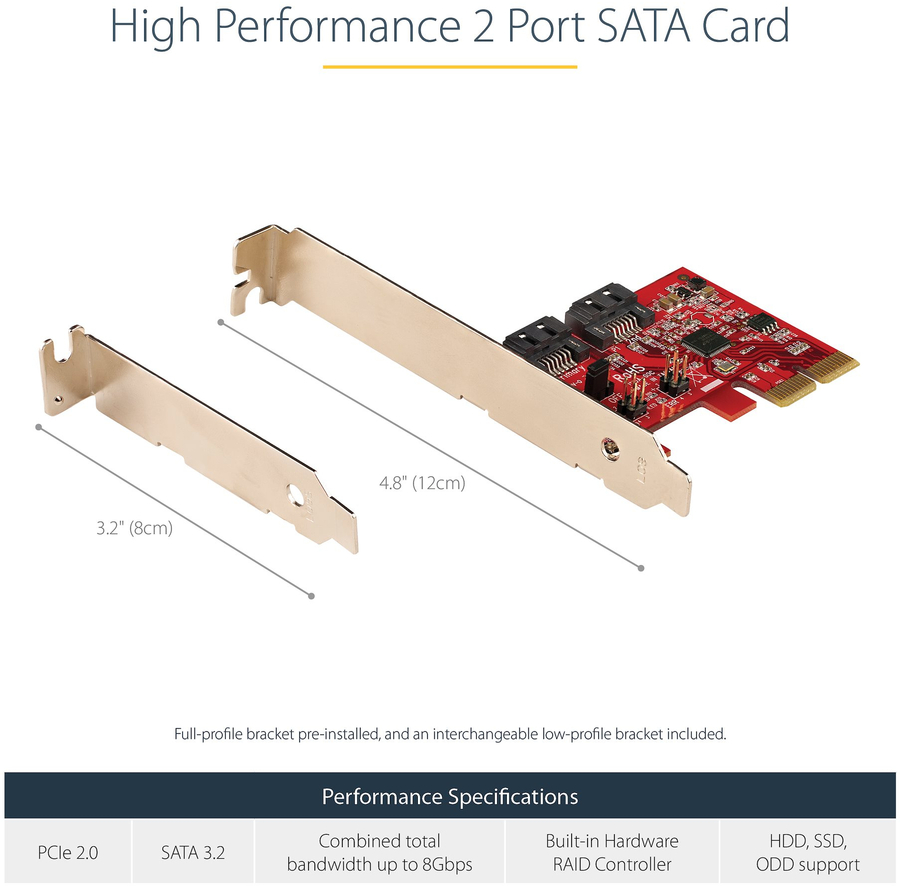

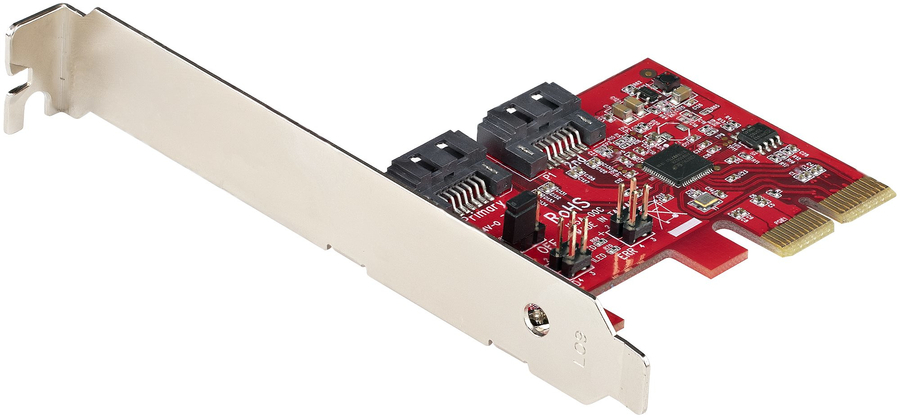

StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1062R SATA RAID - PCIe to SATA Converter (2P6GR-PCIE-SATA-CARD)

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
58125621	2P6GR-PCIE-SATA-CARD	65030893169	Active

Details

General Information

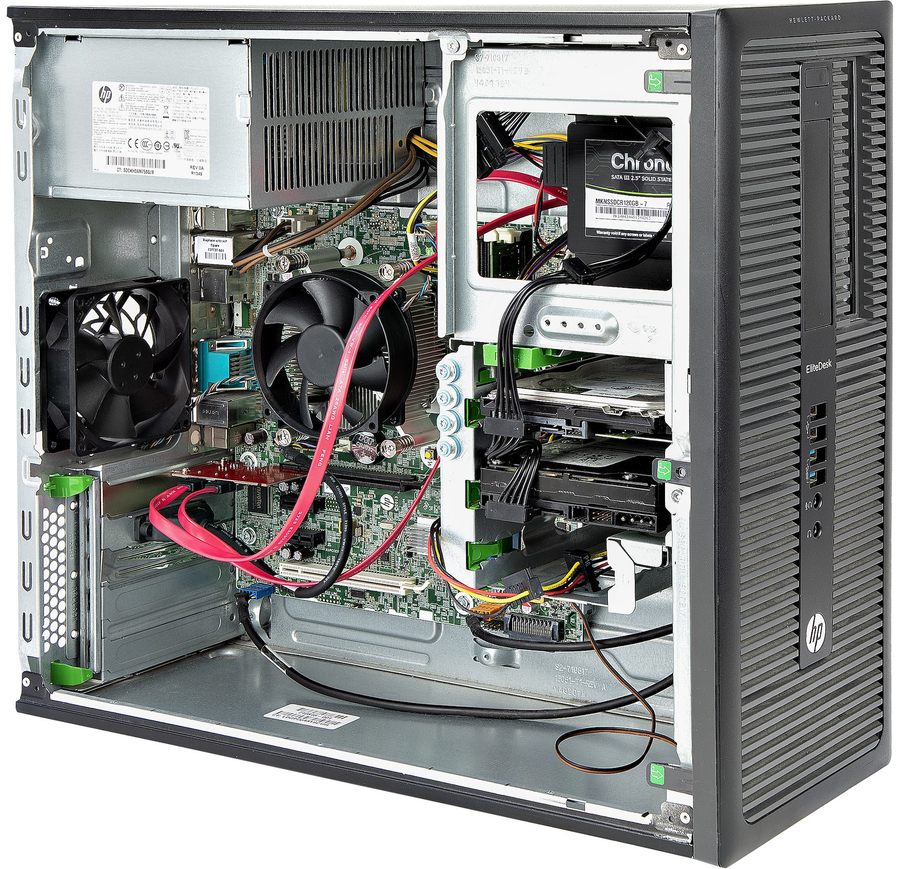

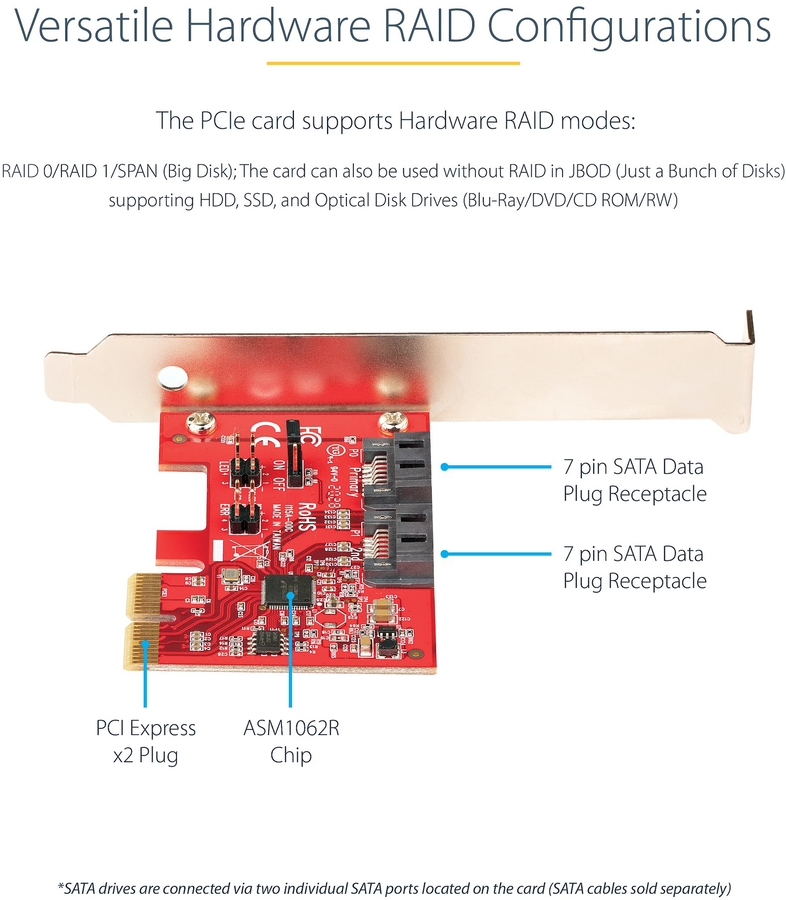

Summary	SATA III (6Gbps) \| Hardware RAID \| PCI Express 2.0 \| PCIe x1 Slot \| 2x SATA Connectors \| 2-Year WarrantyThis 2-port SATA III (6Gbps) controller with RAID enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot, and build the disks into a hardware RAID array. The card supports SATA III and PCI-Express 2.0 Specifications, and can also be used to add optical disk drives (ODD) like CD/DVD/Blu-ray to your computer.Versatile Hardware RAID ConfigurationsThis RAID controller supports different hardware RAID configurations to meet your specific application:• RAID 0 (striped) - Splits your data evenly across both drives to increase read/write performance, while also increasing the size of your volume storage capacity to the combined total of both drives.• RAID 1 (mirrored) - Exactly copies your data on both drives to provide data redundancy, so your data will be safely backed-up should one of the drives fail.• SPAN (big) - Combines both drives into a single array to increase the size of your volume storage capacity to the combined total of both drives.• JBOD (Just a bunch of disks) - Exposes both drives as individual devices to be treated independently.ASM1062R to Deliver 2-Port SATA 6Gbps PerformanceFeaturing the ASM1062R controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.For managing and configuring RAID functionality, the card supports OS booting on Windows & Linux for BIOS level RAID setup & configuration, and includes an application on Windows for OS level RAID setup, configuration & monitoring. On macOS only software RAID is supported using RAID Assistant.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included.2P6GR-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.The StarTech.com Advantage
Ports & interfaces
Host interface	PCIe
Output interface	SATA
Expansion card standard	PCIe 2.0
SATA revision	3.0
Internal SATA ports quantity	2
Port multiplier	Yes
Design
Internal	Yes
Product colour	Red
LED indicators	Yes
Features
Chipset	ASMedia - ASM1062R
Data transfer rate (max)	6 Gbit/s
S.M.A.R.T. support	Yes
TRIM support	Yes
RAID levels	0, 1, BIG, JBOD
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	20 - 80%

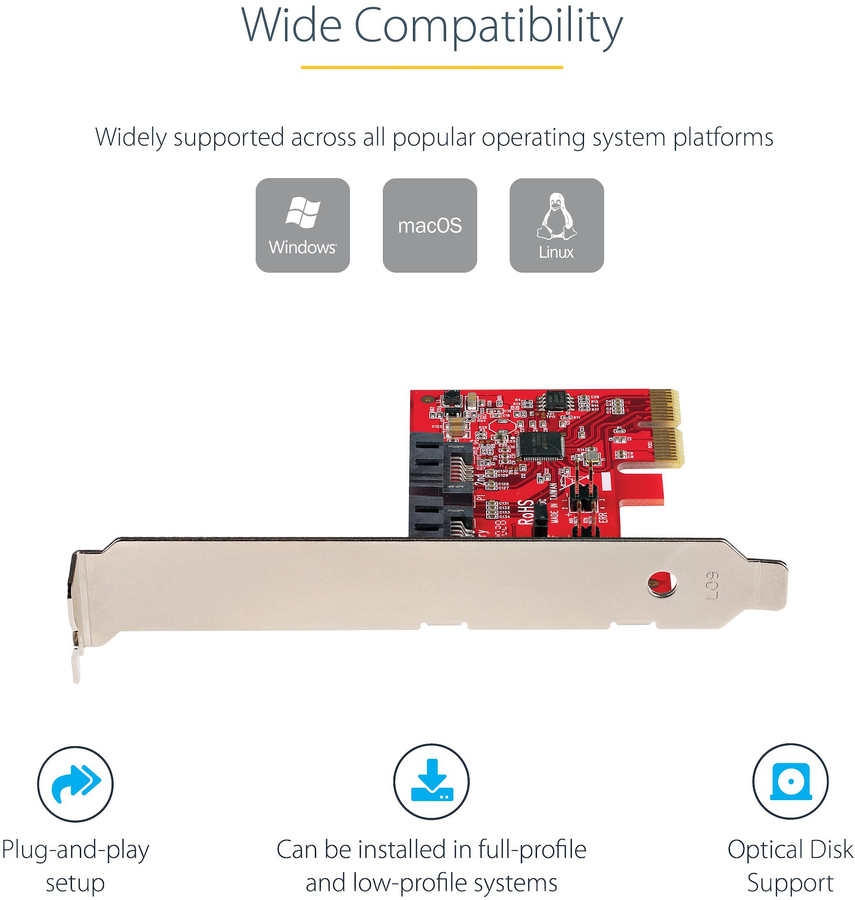

System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Sustainability certificates	RoHS

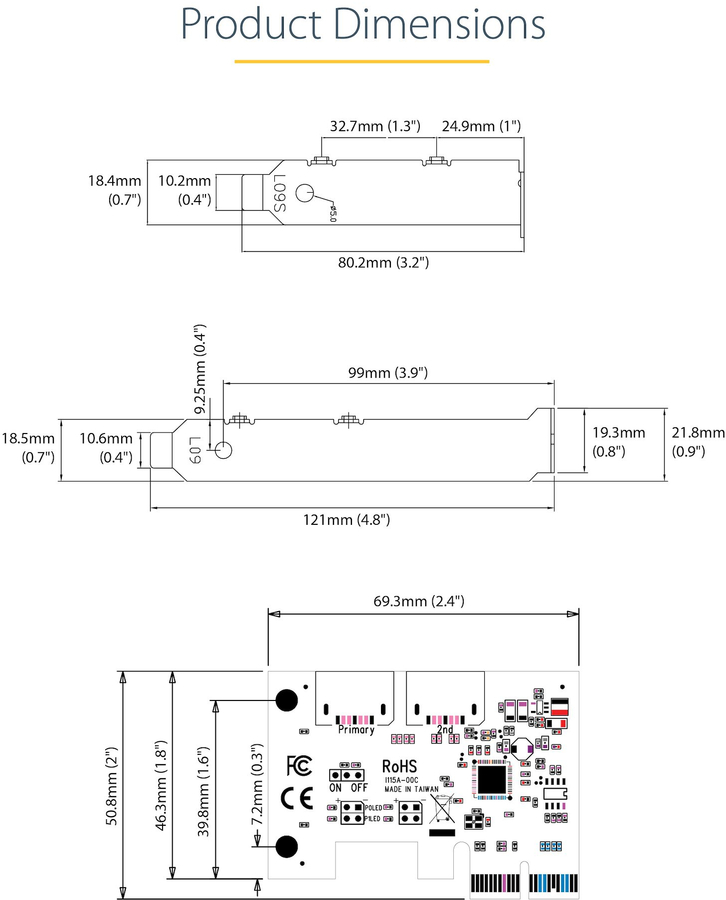

Weight & dimensions
Width	69 mm
Depth	22 mm
Height	121 mm
Weight	35 g
Packaging data
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	142 mm
Package depth	175 mm
Package height	30 mm
Package weight	126 g
Logistics data
Harmonized System (HS) code	84733020
Products per master (outer) case	60 pc(s)
Master (outer) case width	500 mm
Master (outer) case length	370 mm
Master (outer) case height	310 mm
