Aruba AP-635 Access Point
|
|
Regularly: $1514.00
On Sale: $1468.58
Sale Ends:
September 21st, 2025
Manufacturer:
Aruba

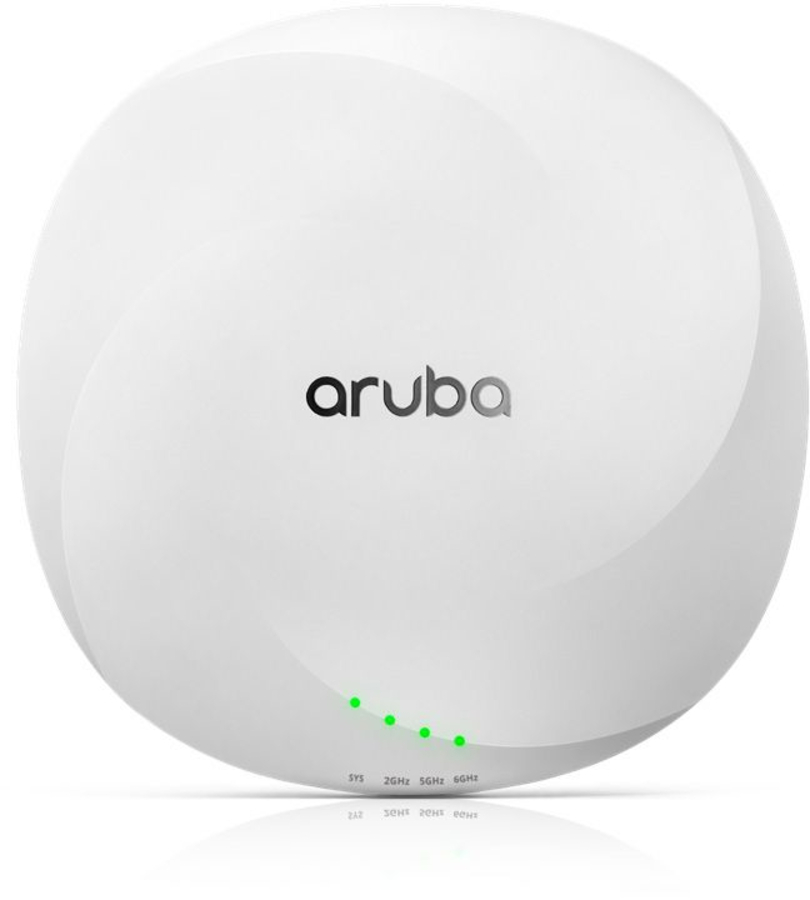

Aruba Networking AP-635 (RW) Tri Radio 2x2 802.11ax Wi-Fi 6E Internal Antennas Campus AP
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58125694
|
R7J27A
|
190017492834 |
Active
|
Details
|
General Information |
|
Summary |
HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled allowing enterprises to meet the today needs and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables. The 630 Series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor use. With up to seven 160 MHz channels, the 630 APs maximizes performance for low-latency, bandwidth-hungry applications. The ultra tri-band filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 Series includes dual port hitless failover for ethernet and power.
What is new supporting point:
Unique filtering capabilities to mitigates gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands.
Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band –unlocking up to 1200 MHz of spectrum.
Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E once it is approved in country.
Wider channels and less interference to deliver faster speeds for ow-latency, bandwidth-hungry applications like high-definition video and augmented reality/virtual reality.
High availability with hitless failover for Ethernet and power to help ensure business continuity. |
|
Features |
|
2.4 GHz |
Yes |
|
5 GHz |
Yes |
|
6 GHz |
Yes |
|
Maximum data transfer rate |
2400 Mbit/s |
|
Ethernet LAN data rates |
100,1000,2500 Mbit/s |
|
Frequency band |
2.4/5/6 GHz |
|
Networking standards |
IEEE 802.15.4 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0 |
|
MIMO |
Yes |
|
Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
|
GPS (satellite) |
Yes |
|
GLONASS |
Yes |
|
Security |
|
Security algorithms |
WPA, WPA2, WPA3 |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB 2.0 ports quantity |
1 |
|
Power |
|
Power over Ethernet (PoE) |
Yes |
|
Design |
|
Placement |
Ceiling |
|
Product colour |
White |
|
Antenna |
|
Antenna type |
Internal |
|
Antenna direction type |
Omni-directional |
|
Antenna features |
Integrated antenna |
|
Antenna gain level (max) |
7 dBi |
|
Certificates |
|
Compliance certificates |
Low Voltage Directive (LVD) |
|
Certification |
None |
|
Weight & dimensions |
|
Width |
220 mm |
|
Depth |
220 mm |
|
Height |
51 mm |
|
Weight |
1.3 kg |
|
Operational conditions |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-25 - 55 °C |
|
Storage relative humidity (H-H) |
10 - 100% |
|
