General Information |
|
Summary |
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking

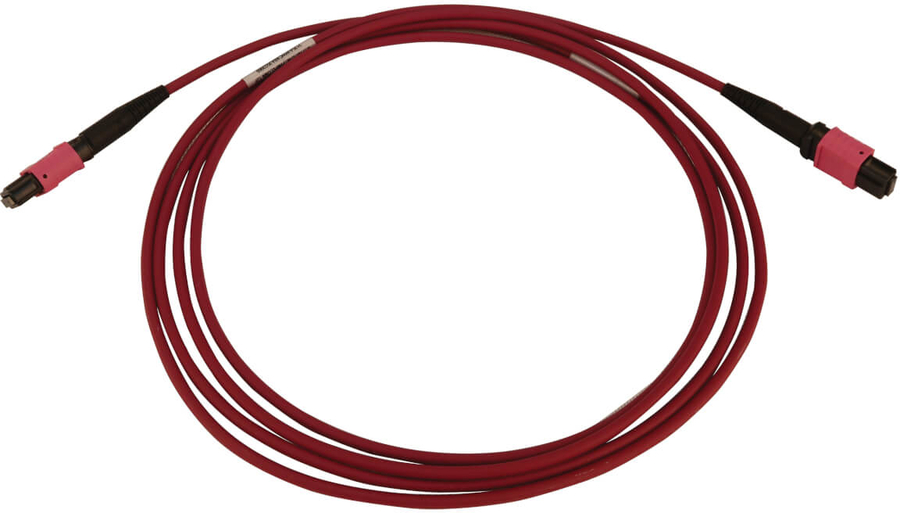

As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

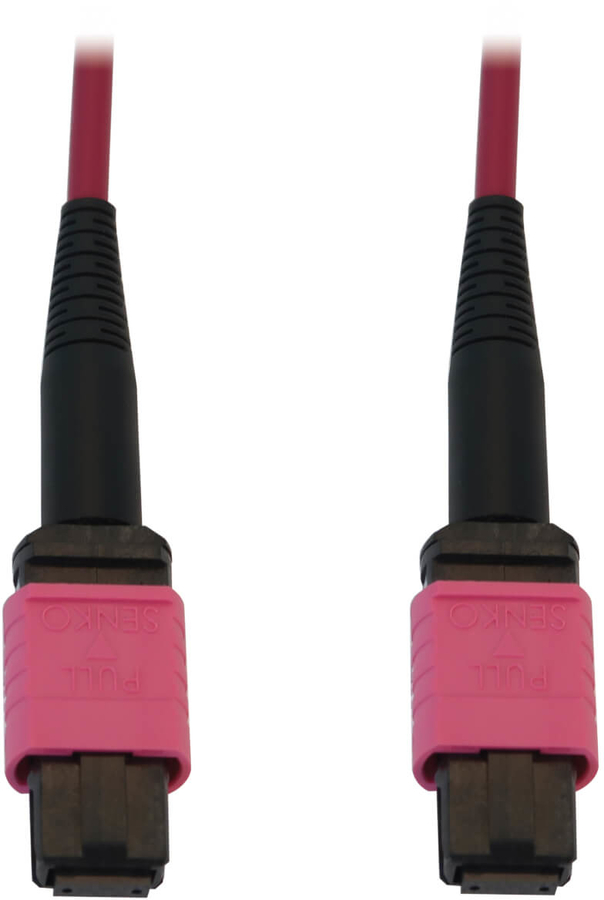

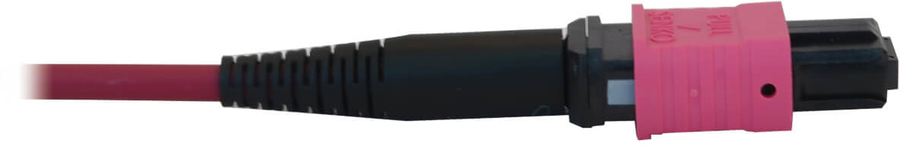

The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors’ slim boots allow easy one-handed installation and removal of the cable. |
|
Features |
|
Cable length |
2 m |
|
Cable type |
OFNR |
|

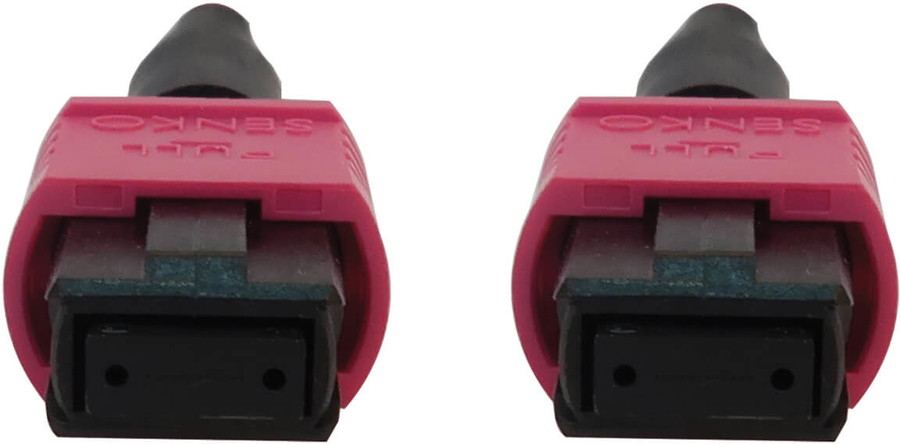

Connector 1 |
MPO/MTP |
|
Connector 2 |
MPO/MTP |
|
Connector 1 gender |
Female |
|
Connector 2 gender |
Female |
|
Product colour |
Black, Magenta |
|
Jacket material |
Low smoke zero halogen (LSZH) |
|
Fibre optic type |
OM4 |
|
Connector polish type |
PC |
|
Core diameter |
50 µm |
|
Cladding diameter |
125 µm |
|
Fiber mode structure |
Multi-mode |
|
Data transfer rate |
100 Gbit/s |
|
Insertion loss |
0.35 dB |
|
Sustainability |
|
Sustainability certificates |
UL ECOLOGO |
|
Sustainability compliance |
Yes |
|
Certificates |
|
Compliance certificates |
CE, REACH, RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Weight & dimensions |
|
Bending radius |
2 cm |
|
Packaging data |
|
Package width |
177.8 mm |
|
Package depth |
12.7 mm |
|
Package height |
228.6 mm |
|
Package weight |
30 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
10037332272246 |
|
Country of origin |
China |
|
Master (outer) case width |
101.6 mm |
|
Harmonized System (HS) code |
8544.70.0000 |
|
Master (outer) case length |
149.9 mm |
|
Master (outer) case height |
185.4 mm |
|
Master (outer) case gross weight |
360 g |
|
Products per master (outer) case |
10 pc(s) |
