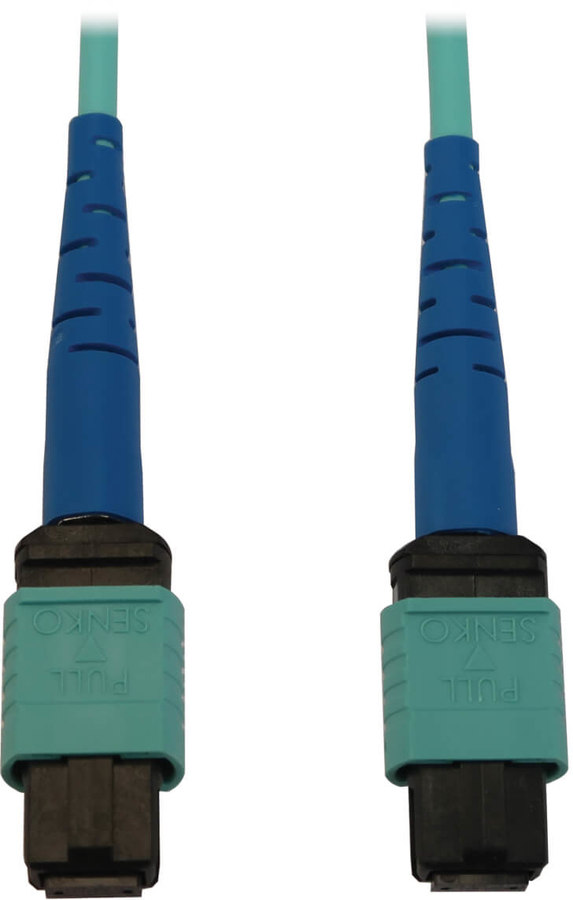

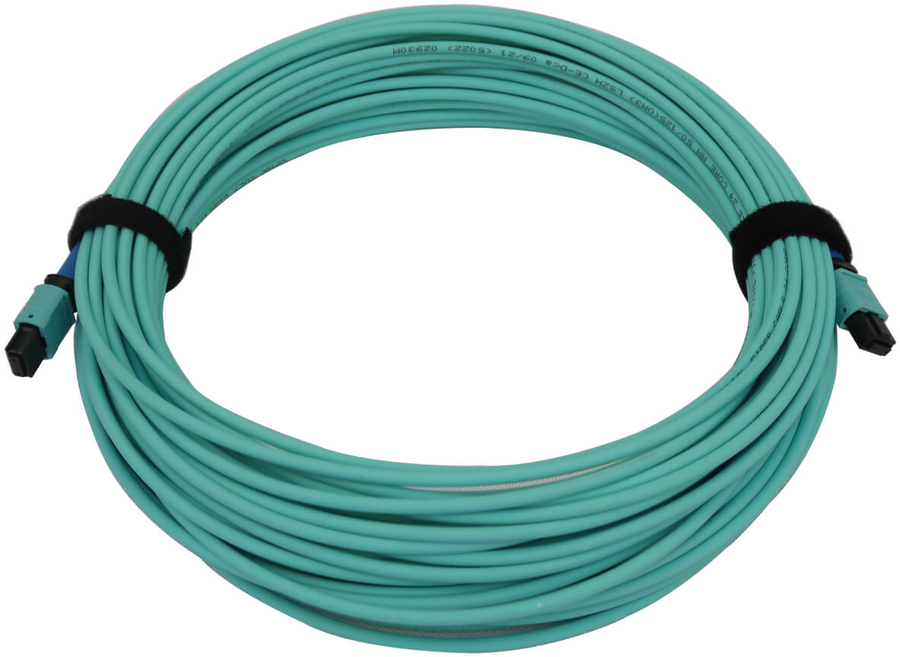

Tripp Lite 65.6-Foot 40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (24F MTP/MPO-PC F/F), LSZH, Aqua
|
|
Price: $610.00
Manufacturer:
Tripp Lite
40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (24F MTP/MPO-PC F/F), LSZH, Aqua, 20 m (65.6 ft.)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58126026
|
N846B-20M-24-P
|
37332271747 |
Active
|
Details
|
General Information |
|
Summary |
40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking
The N846B-20M-24-P is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM3 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb, 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
100% Tested for Low Insertion Loss and Attenuation Loss

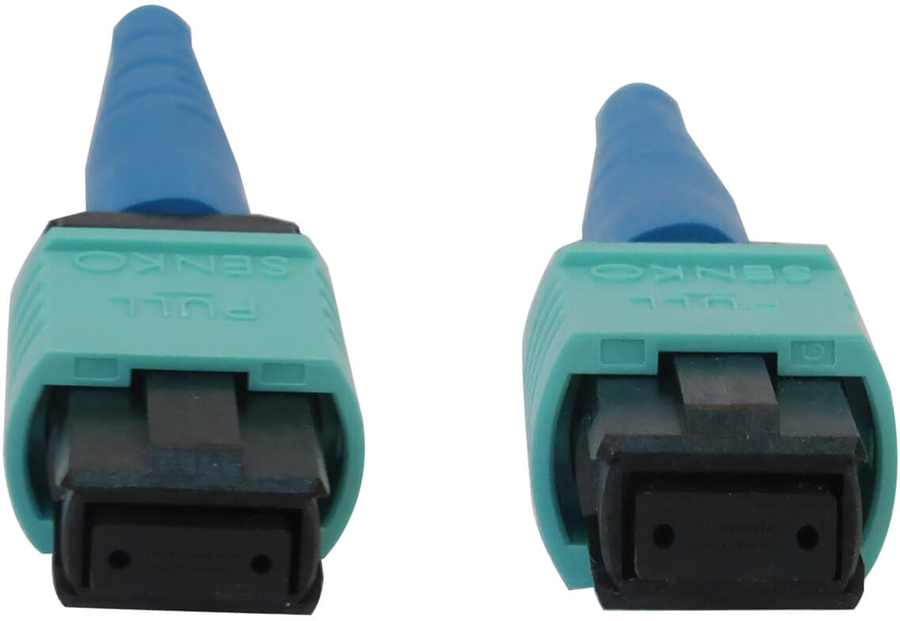

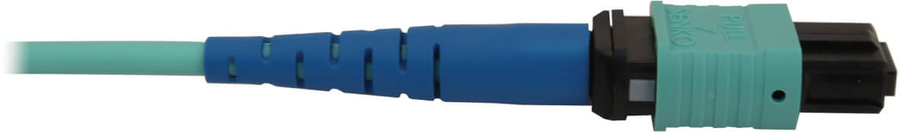

The cable is tested for low insertion loss on the factory-terminated 24-fiber MTP/MPO connectors and attenuation loss that meets or exceeds current standards. The connectors’ slim boots allow easy one-handed installation and removal of the cable.
Aqua-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM3-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. |
|
Features |
|
Cable length |
20 m |
|
Cable type |
OFNR |
|
Connector 1 |
MPO/MTP |
|
Connector 2 |
MPO/MTP |
|
Connector 1 gender |
Female |
|
Connector 2 gender |
Female |
|
Product colour |
Aqua colour, Black, Blue |
|
Jacket material |
Low smoke zero halogen (LSZH) |
|
Fibre optic type |
OM3 |
|
Connector polish type |
PC |
|
Core diameter |
50 µm |
|
Cladding diameter |
125 µm |
|
Fiber mode structure |
Multi-mode |
|
Wavelengths supported |
850,1300 nm |
|
Ethernet interface type |
40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet |
|
Data transfer rate |
400 Gbit/s |
|
Insertion loss |
0.35 dB |
|
Sustainability |
|
Sustainability certificates |
UL ECOLOGO |
|
Sustainability compliance |
Yes |
|
Certificates |
|
Compliance certificates |
RoHS, CE, REACH |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 60 °C |
|
Storage temperature (T-T) |
-10 - 60 °C |
|
Weight & dimensions |
|
Cable diameter |
3 mm |
|
Bending radius |
2 cm |
|
Packaging data |
|
Package width |
266.7 mm |
|
Package depth |
12.7 mm |
|
Package height |
304.8 mm |
|
Package weight |
180 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
10037332271744 |
|
Country of origin |
China |
|
Master (outer) case width |
375.9 mm |
|
Harmonized System (HS) code |
8544.70.0000 |
|
Master (outer) case length |
154.9 mm |
|
Master (outer) case height |
149.9 mm |
|
Master (outer) case gross weight |
1.96 kg |
|
Products per master (outer) case |
10 pc(s) |
|
