40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking

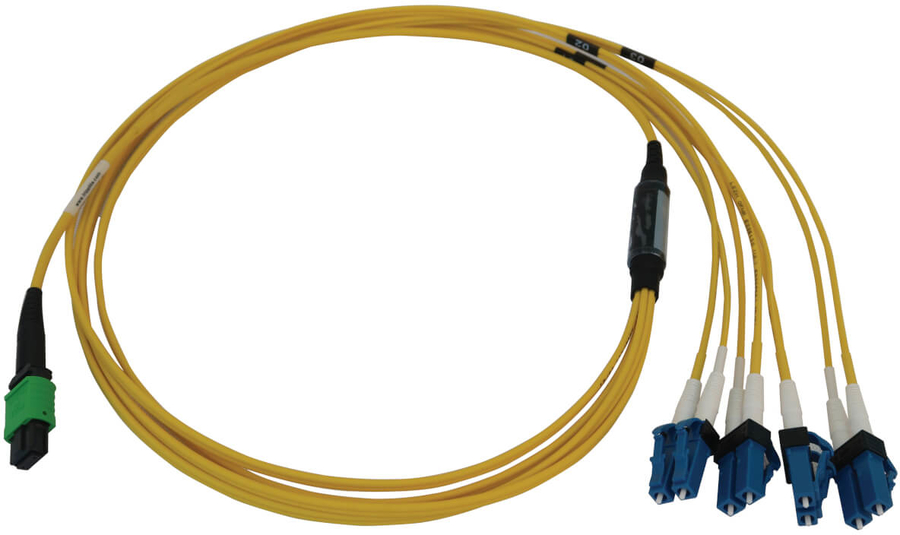

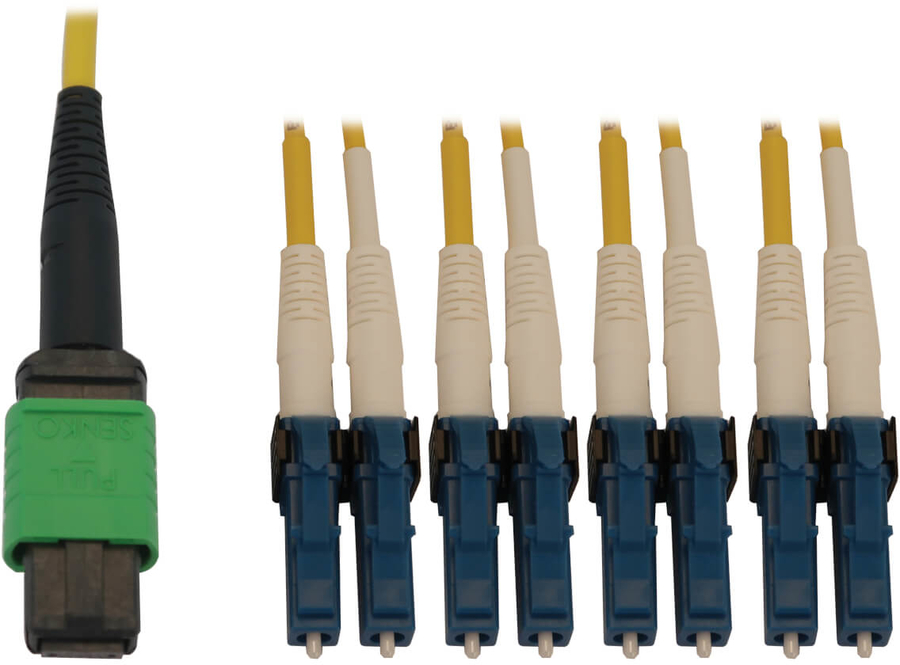

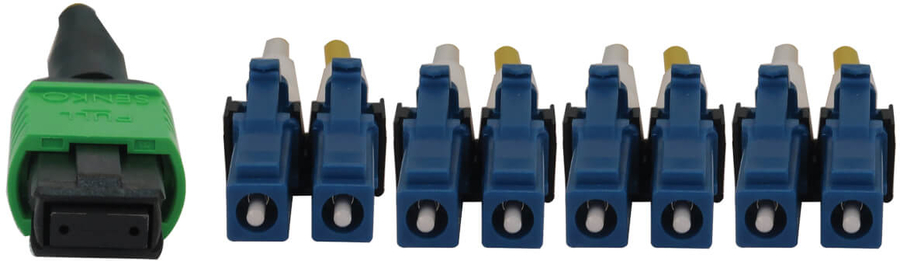

The N390X-01M-8L-AP is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 1550 nm. The breakout cable also eliminates the need for long fan-out cables or long individual duplex cable runs.
Switchable Connectors Allow Easy Polarity Conversions

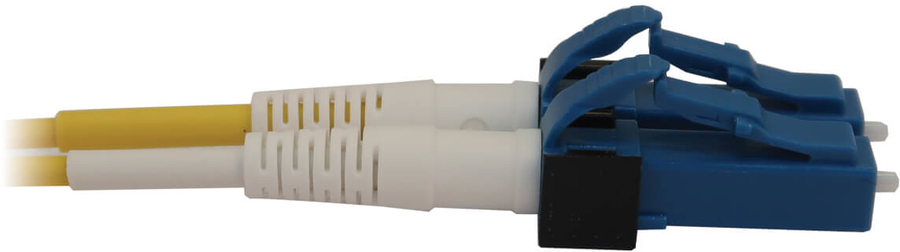

The switchable LC/UPC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors.
100% Tested for Low Insertion Loss and Back Reflection

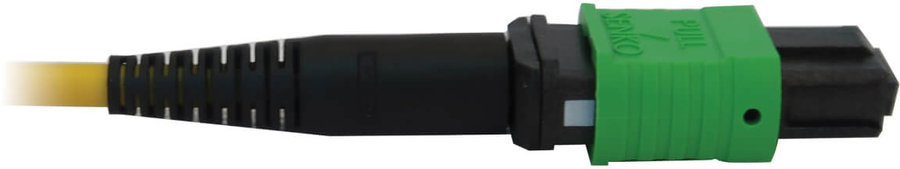

The 12-fiber MTP/MPO APC connector with a green housing helps minimize back reflection with low insertion loss. The connector’s slim boot is designed for easy cable management.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. |
|
Features |
|
Cable length |
1 m |
|
Cable type |
OFNR |
|
Connector 1 |
MPO/MTP |
|
Connector 2 |
4x LC |
|
Connector 1 gender |
Female |
|
Connector 2 gender |
Male |
|
Product colour |
Black, Blue, Green, Yellow |
|
Jacket material |
Low smoke zero halogen (LSZH) |
|
Fibre optic type |
OS2 |
|
Core diameter |
9 µm |
|
Cladding diameter |
125 µm |
|
Fiber mode structure |
Single-mode |
|
Wavelengths supported |
1310,1550 nm |
|
Ethernet interface type |
10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet |
|
Data transfer rate |
400 Gbit/s |
|
Insertion loss |
0.7 dB |
|
Sustainability |
|
Sustainability certificates |
UL ECOLOGO |
|
Sustainability compliance |
Yes |
|
Certificates |
|
Compliance certificates |
RoHS, CE, REACH |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 60 °C |
|
Storage temperature (T-T) |
-10 - 60 °C |
|
Weight & dimensions |
|
Bending radius |
2 cm |
|
Packaging data |
|
Package width |
177.8 mm |
|
Package depth |
12.7 mm |
|
Package height |
228.6 mm |
|
Package weight |
60 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
10037332272376 |
|
Country of origin |
China |
|
Master (outer) case width |
101.6 mm |
|
Harmonized System (HS) code |
8544.70.0000 |
|
Master (outer) case length |
149.9 mm |
|
Master (outer) case height |
185.4 mm |
|
Master (outer) case gross weight |
690 g |
|
Products per master (outer) case |
10 pc(s) |
