General Information |
|
Summary |
2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot

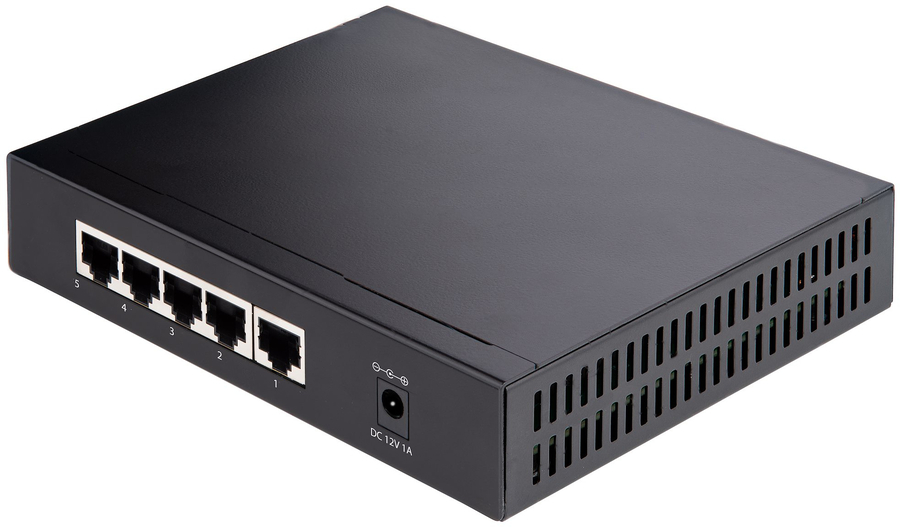

The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.
Enhance your network

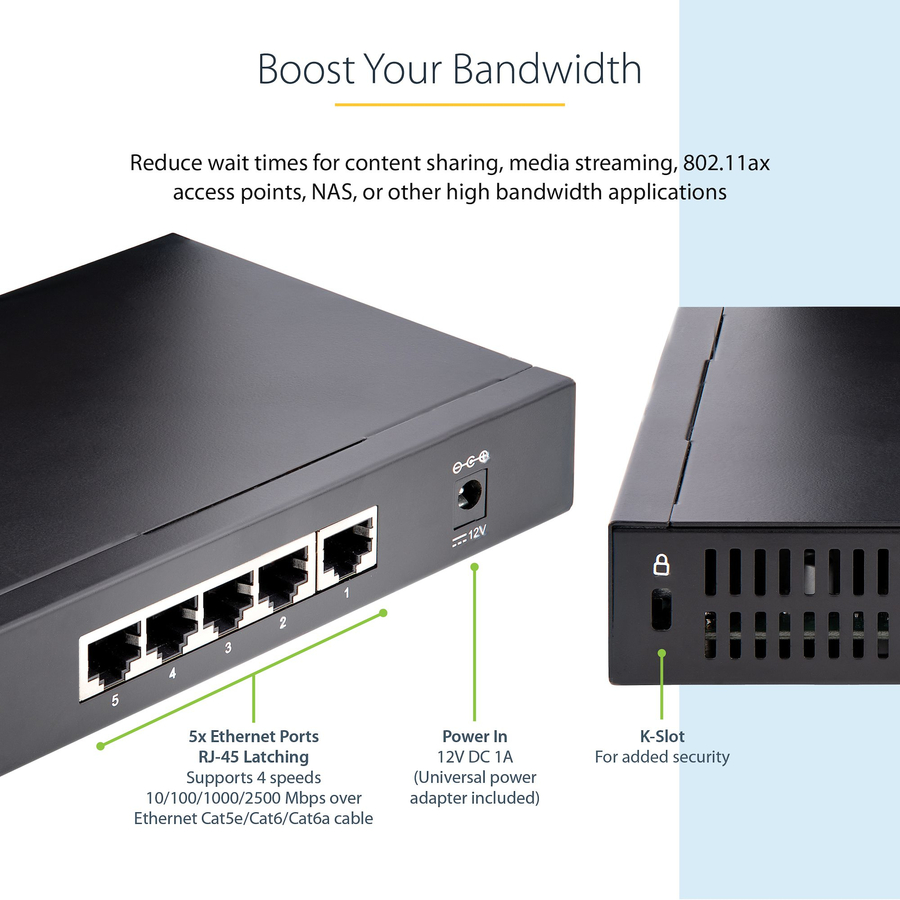

This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.
Secure and versatile

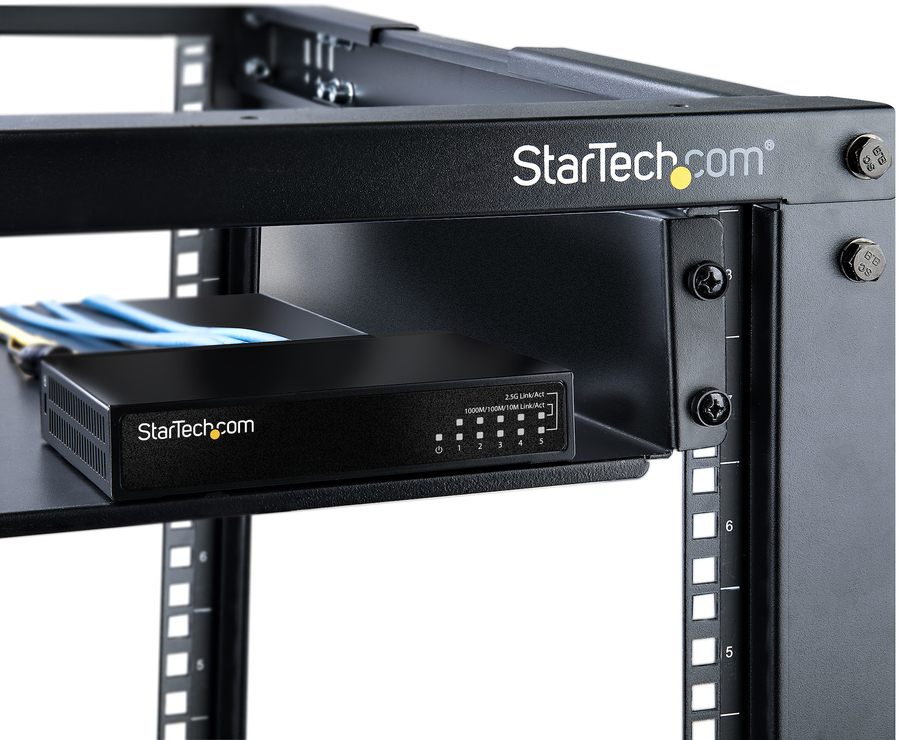

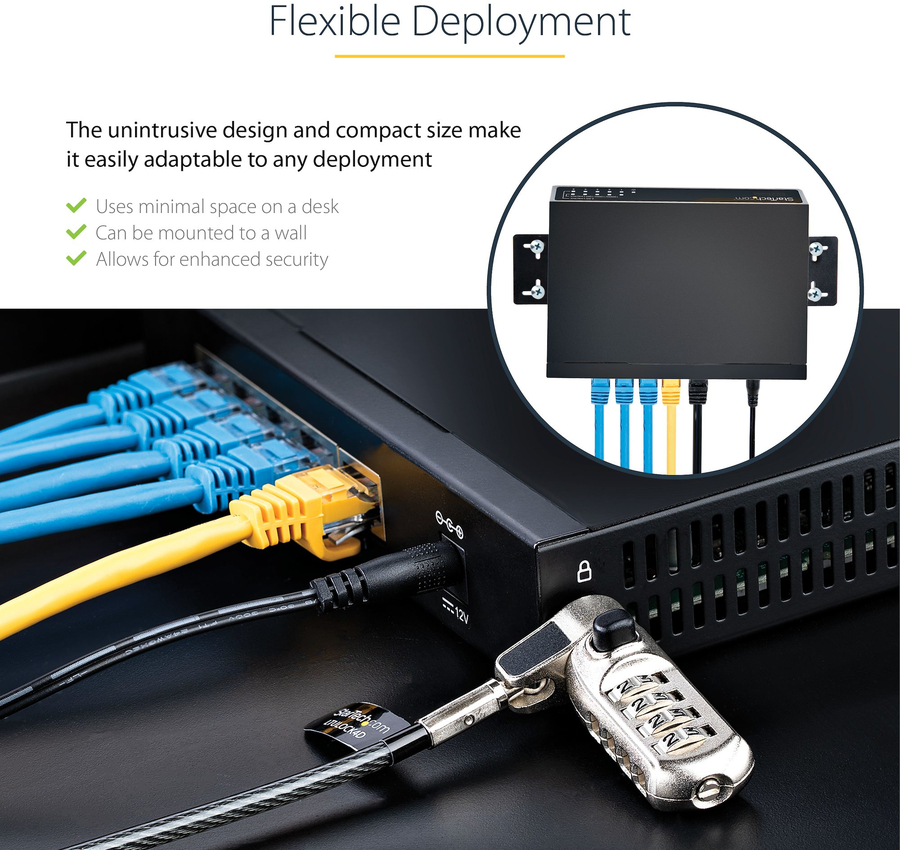

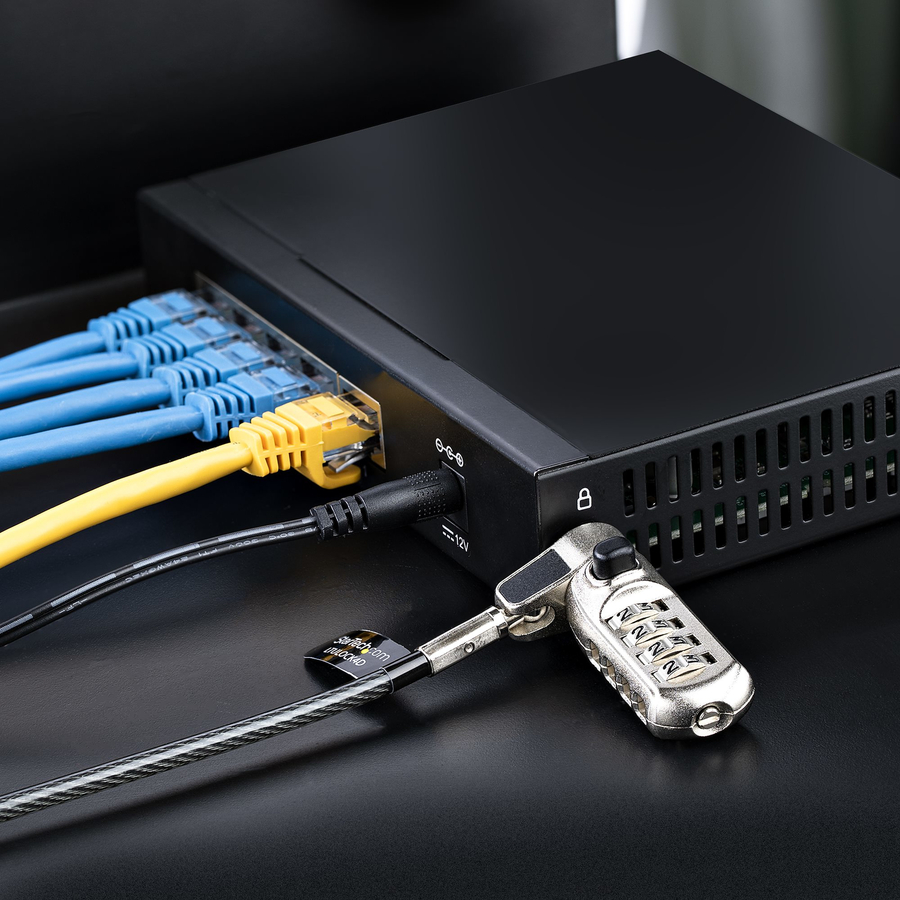

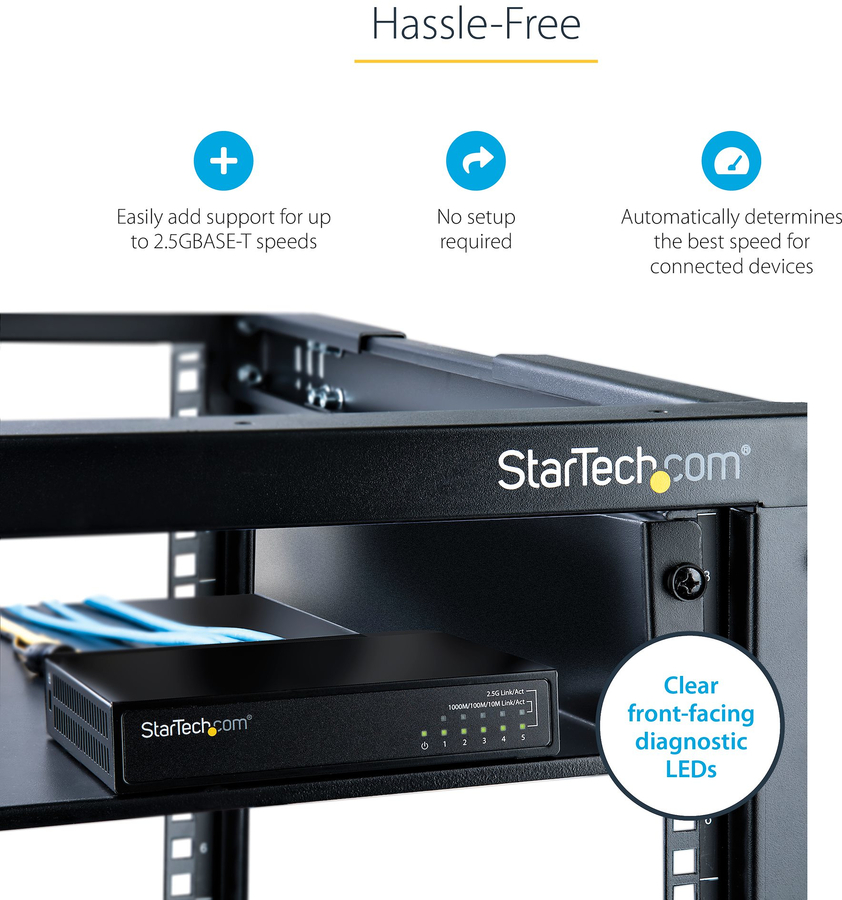

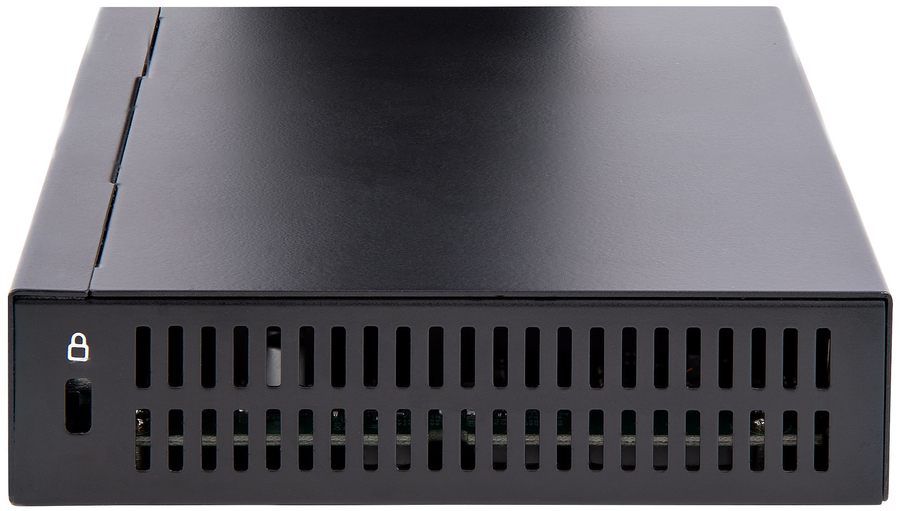

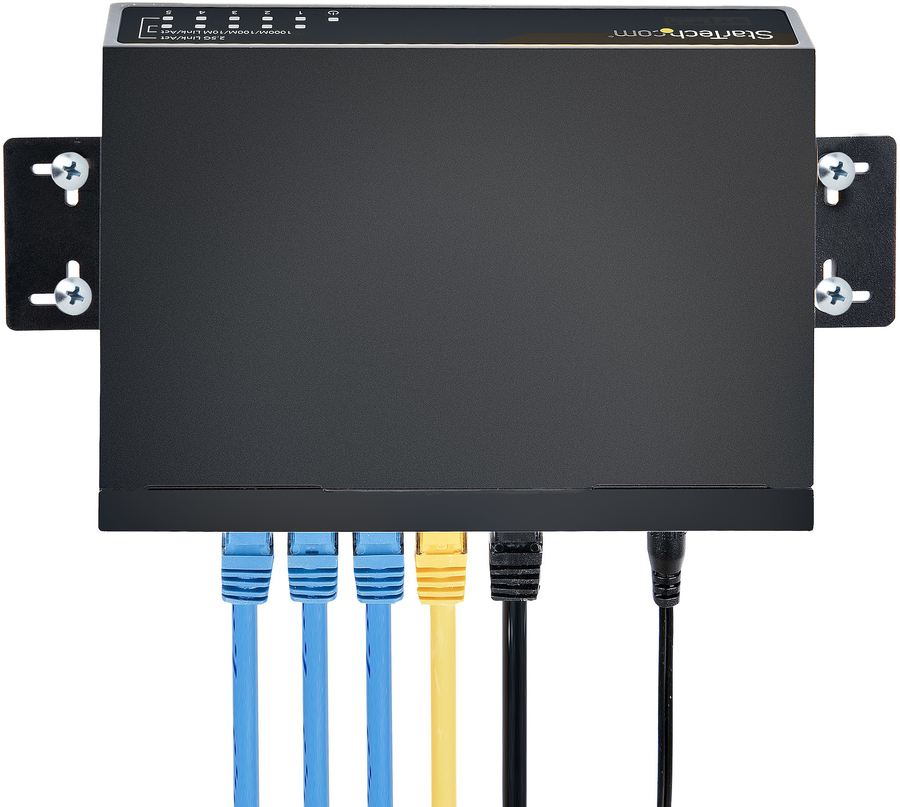

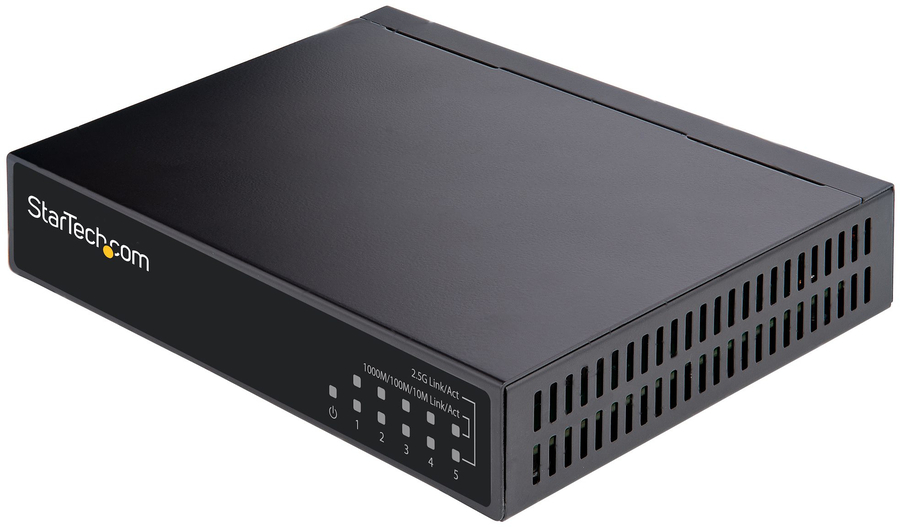

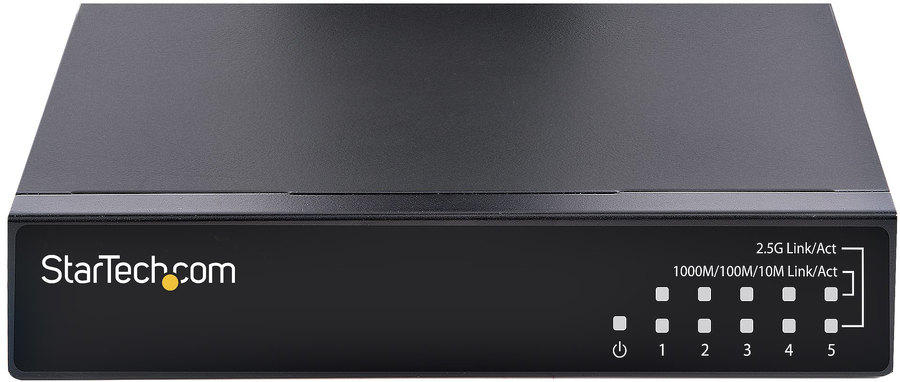

The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.
The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
|
|
Management features |
|
Switch type |
Unmanaged |
|
Quality of Service (QoS) support |
Yes |
|
Ports & interfaces |
|

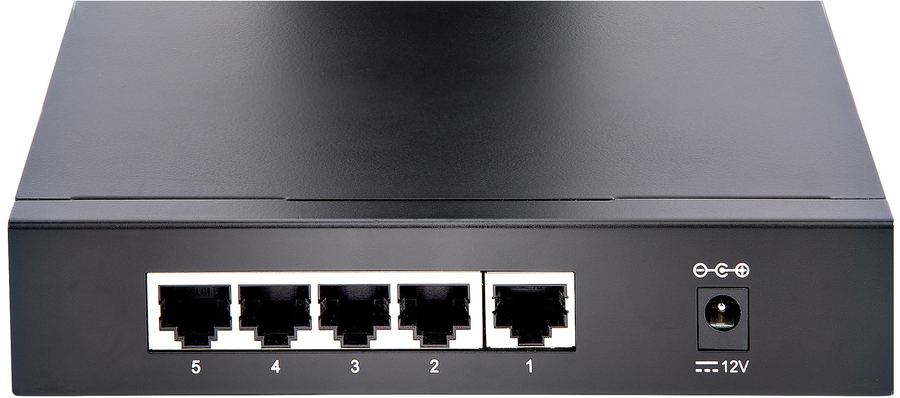

Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
2.5G Ethernet (copper) ports quantity |
5 |
|
Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Copper ethernet cabling technology |
10BASE-T, 1000BASE-TX, 2500BASE-T |
|
Cable types supported |
Cat5e, Cat6, Cat6a |
|
Full duplex |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Data transmission |
|
Switching capacity |
2.5 Gbit/s |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Steel |
|
LED indicators |
Yes |
|
Wall mountable |
Yes |
|
Performance |
|
Maximum cable length |
100 m |
|
Power |
|
Power source |
AC/DC |
|
Power supply included |
Yes |
|
AC input voltage |
100 - 240 V |
|
Input current |
0.5 A |
|
Output voltage |
12 V |
|
Output current |
1 A |
|
Power plug type |
Type M |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|

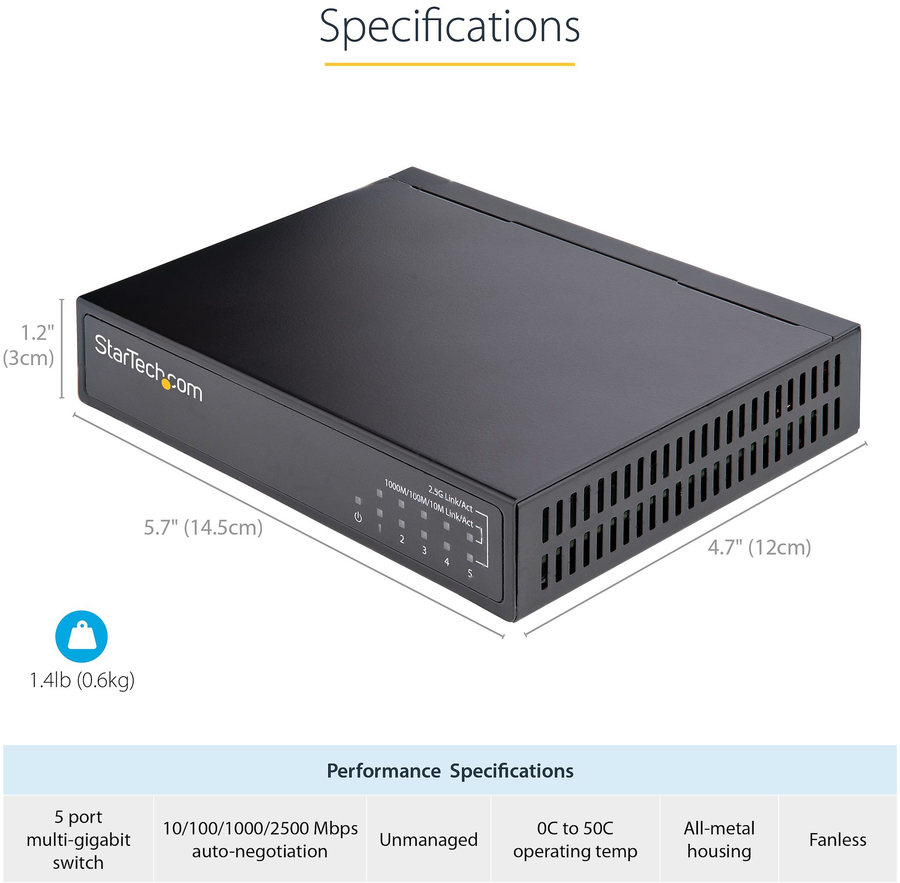

Weight & dimensions |
|
Width |
120 mm |
|
Depth |
145 mm |
|
Height |
30 mm |
|
Weight |
600 g |
|

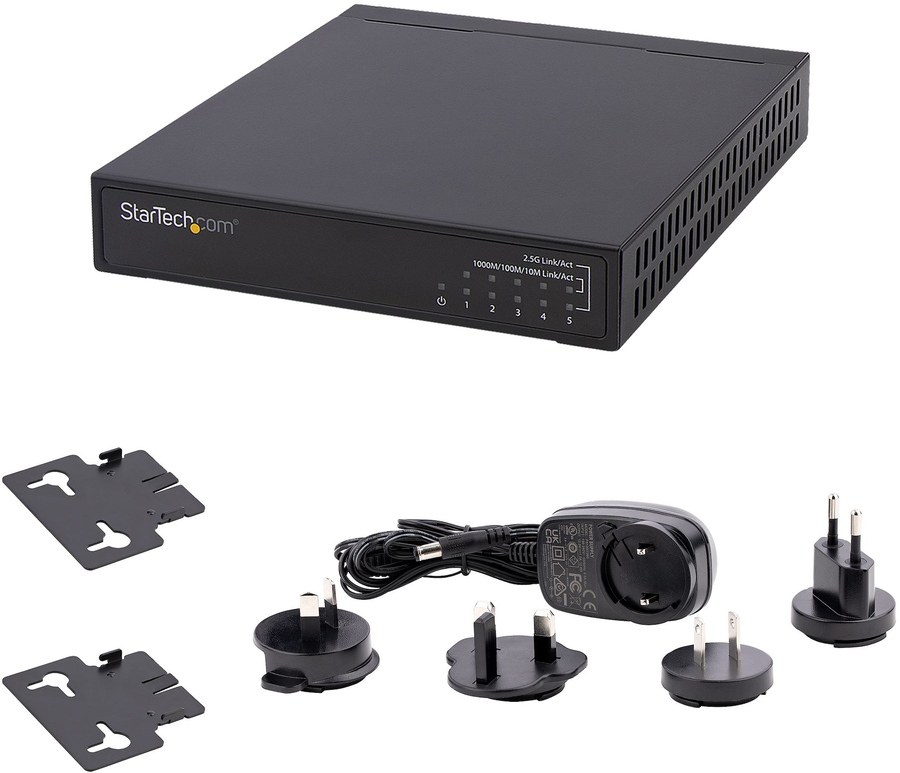

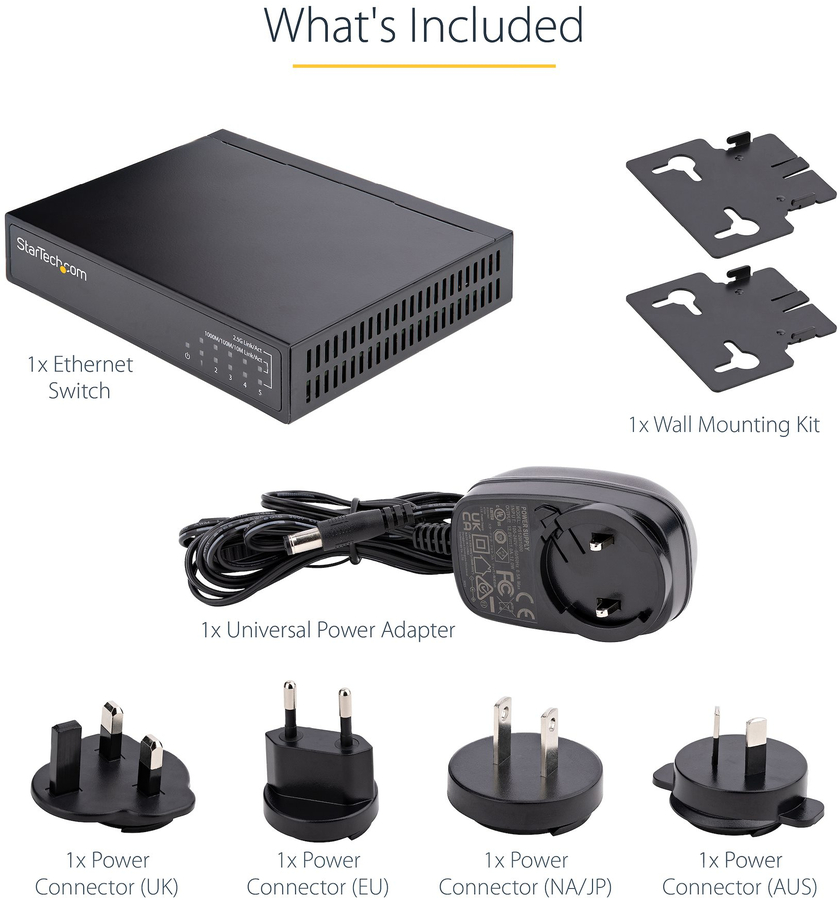

Packaging content |
|
Quick start guide |
Yes |
|
Packaging data |
|
Wall mounting kit |
Yes |
|
AC adapter included |
Yes |
|
Package width |
285 mm |
|
Package depth |
135 mm |
|
Package height |
70 mm |
|
Package weight |
700 g |
|
Certificates |
|
Compliance certificates |
CE, RoHS |
|
Logistics data |
|
Master (outer) case width |
305 mm |
|
Master (outer) case length |
370 mm |
|
Master (outer) case height |
290 mm |
|
Harmonized System (HS) code |
85176990 |
|
Products per master (outer) case |
10 pc(s) |
