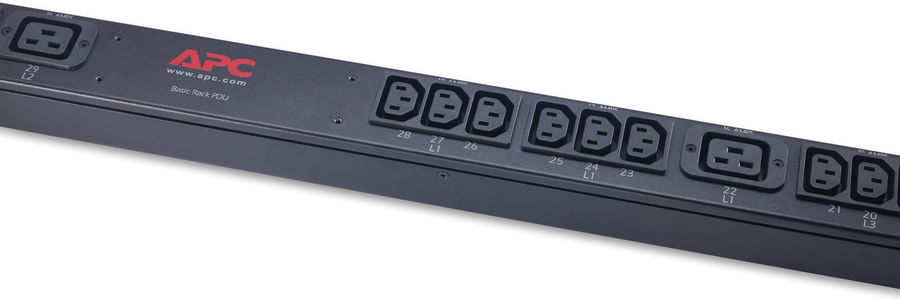

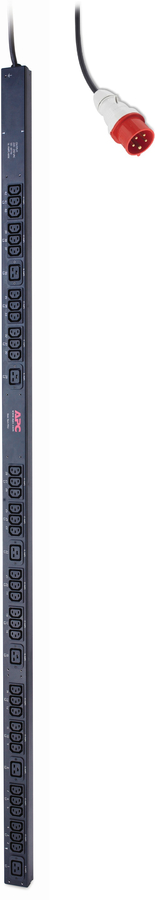

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19
|
|
Regularly: $1146.00
On Sale: $1100.16
Sale Ends:
May 4th, 2025
Manufacturer:
APC
Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58214925
|
AP7557
|
731304254102 |
Active
|
Details
|
General Information |
|
Summary |
APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.
- Low Cost Power Distribution.
- Vertical mounting capability.
- Toolless mounting capability.
- Multi-branch power input. |
|
Design |
|
PDU types |
Basic |
|
Rack capacity |
0U |
|
Mounting |
Vertical |
|
Product colour |
Black |
|
Ports & interfaces |
|
AC outlets quantity |
42 AC outlet(s) |
|
AC outlet types |
C13 coupler, C19 coupler |
|
Input connection type |
IEC 309 16A 3P+N+PE |
|
Output connections |
(36) IEC 320 C13
(6) IEC 320 C19 |
|
Features |
|
Cable length |
0.91 m |
|
Power |
|
Nominal input voltage |
400 V |
|
AC input frequency |
47/63 Hz |
|
Nominal output voltage |
230 V |
|
Load capacity |
11040 VA |
|
Maximum input current per phase |
16 A |
|
Maximum total current draw per phase |
16 A |
|
Maximum power |
11000 W |
|
Certificates |
|
Certification |
C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 45 °C |
|
Storage temperature (T-T) |
-25 - 65 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
56 mm |
|
Depth |
44 mm |
|
Height |
1619 mm |
|
Weight |
5.45 kg |
|
