General Information |
|
Summary |

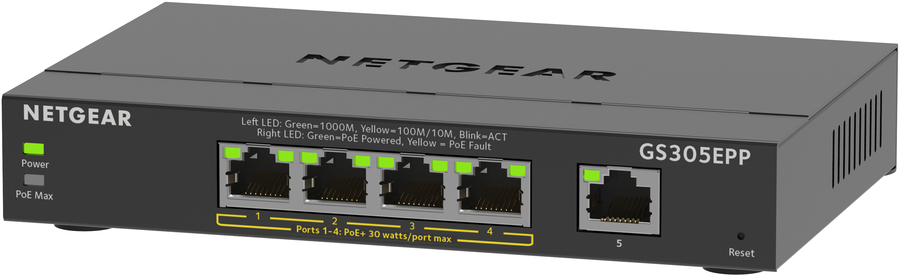

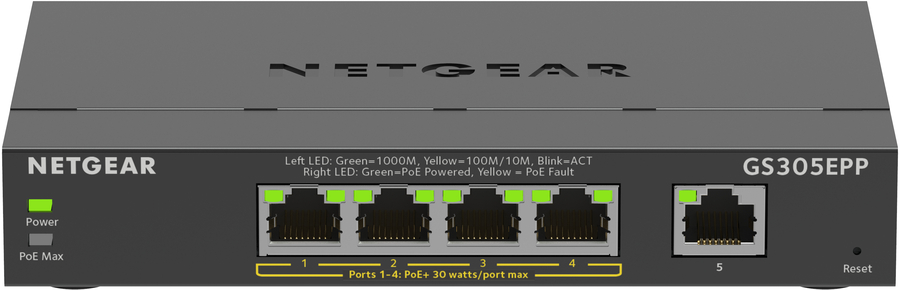

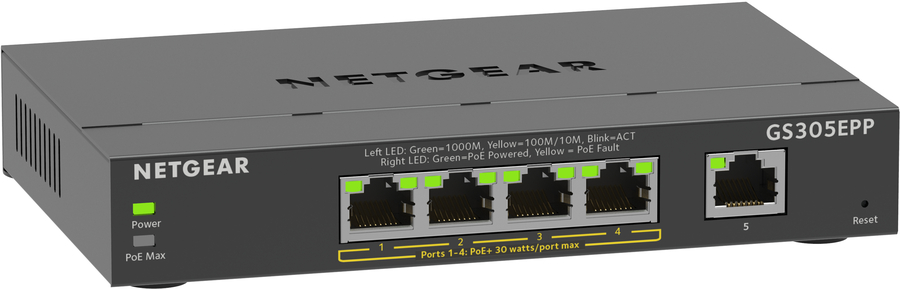

5PT GE PLUS SWCH W/ HI-PWR POE+ |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Ethernet LAN data rates |
100 Mbit/s |
|
VLAN support |
Yes |
|
Number of VLANs |
64 |
|
Data transmission |
|
MAC address table |
4000 entries |
|
Switching capacity |
10 Gbit/s |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9216 |
|
Packet buffer memory |
0.192 MB |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Password protection |
Yes |
|
Queue scheduling algorithms |
Weighted Round Robin (WRR) |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Product colour |
Black |
|
LED indicators |

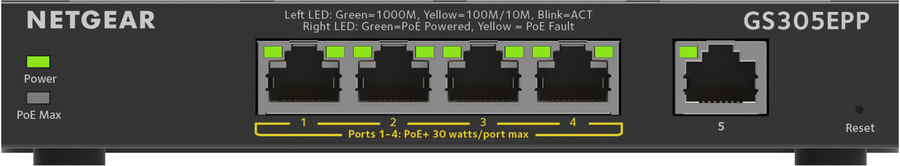

Activity, Link, PoE, Power, Speed, System |
|
Wall mountable |
Yes |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
|
Performance |
|
Fanless |
Yes |
|
Mean time between failures (MTBF) |
853770 h |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) ports quantity |
4 |
|
Power over Ethernet plus (PoE+) ports quantity |
4 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
158 mm |
|
Depth |
101 mm |
|
Height |
27 mm |
|
Weight |
400 g |
|
Packaging data |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
