General Information |
|
Summary |

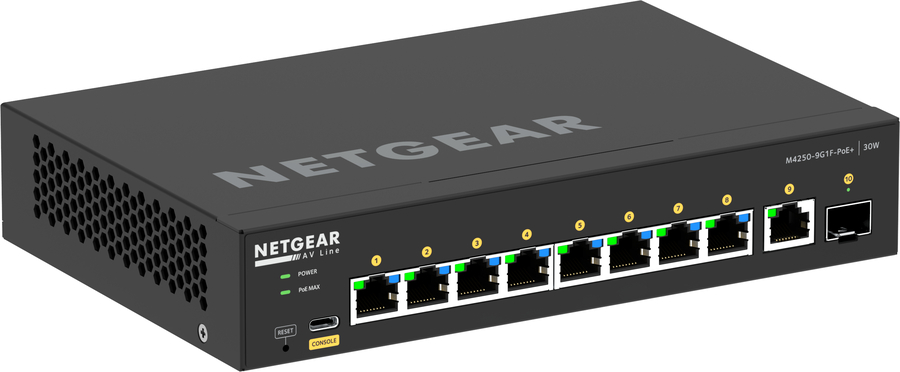

Powerful AV Line M4250 switches now in a desktop form factor. Simplify your AV multicast deployments with automatic multi-switch configuration and easy, profile-based setups for conference rooms, mobile studios, and more. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|

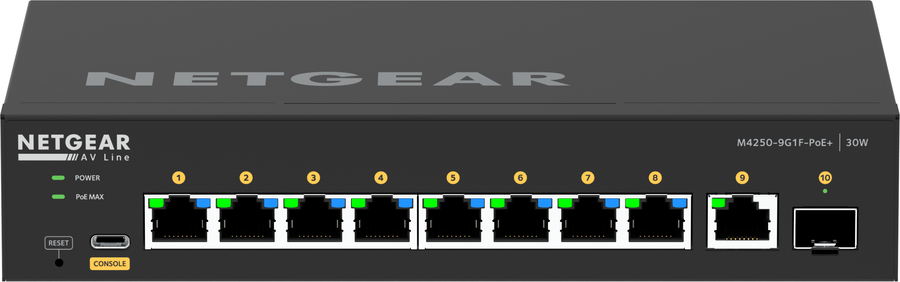

Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
|
Full duplex |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Rate limiting |
Yes |
|
Spanning tree protocol |
Yes |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
24 Gbit/s |
|
Store-and-forward |
Yes |
|
Security |
|
DHCP features |
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
SSH/SSL support |
Yes |
|
Loop protection |
Yes |
|
BPDU filtering/protection |
Yes |
|
Authentication |
MAC-based authentication |
|
Authentication type |
RADIUS |
|
Multicast features |
|
Multicast support |
Yes |
|
IPv4 multicast entries |
2000 |
|
Design |
|

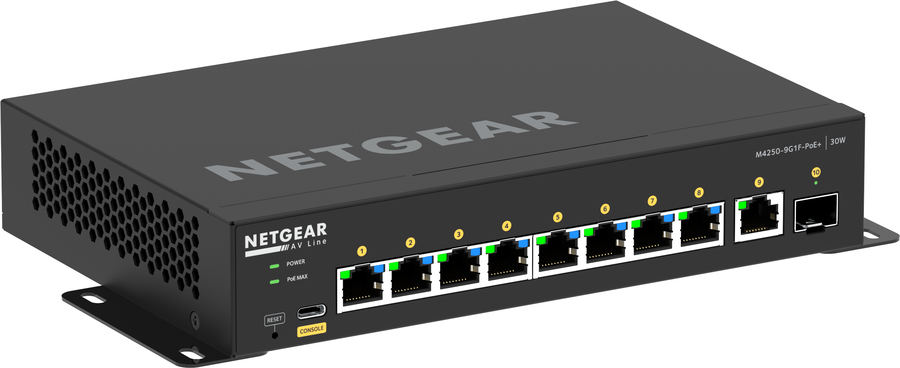

Rack mounting |
Yes |
|
Product colour |
Black |
|
LED indicators |
PoE, Power, Status |
|
Performance |
|
Built-in processor |
Yes |
|
Processor model |
ARM Cortex-A9 |
|
Processor frequency |
1250 MHz |
|
Internal memory |
2048 MB |
|
Noise level |
30.06 dB |
|
Power |
|
Power source |
AC/DC |
|
Power supply included |
Yes |
|
AC input voltage |
220 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
8 |
|
Power over Ethernet (PoE) power per port |
30 W |
|
Total Power over Ethernet (PoE) budget |
110 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 3000 m |
|
Heat dissipation |
559.555 BTU/h |
|
Weight & dimensions |
|
Width |
210 mm |
|
Depth |
140 mm |
|
Height |
40 mm |
|
Weight |
967 g |
|
Packaging content |
|
User guide |
Yes |
|
Manual |
Yes |
