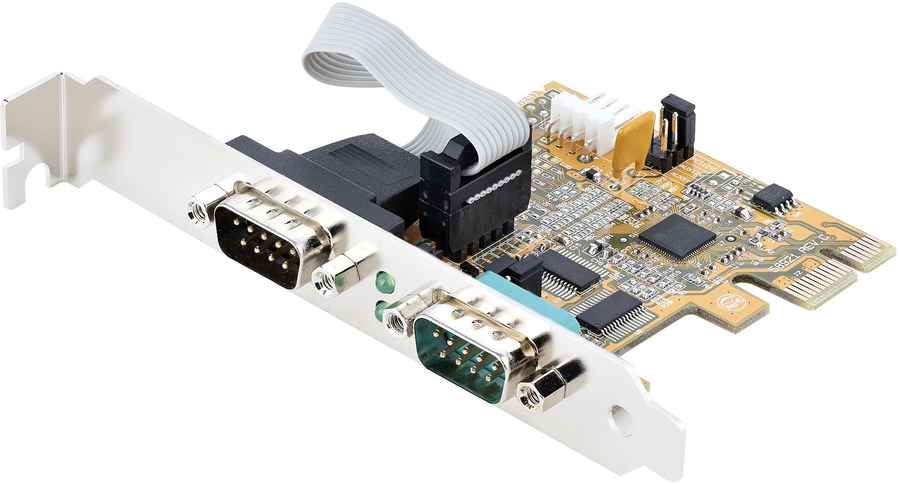

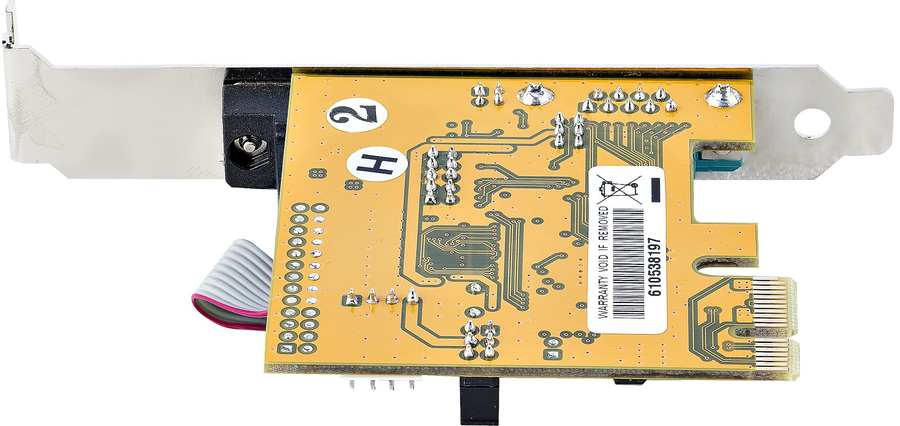

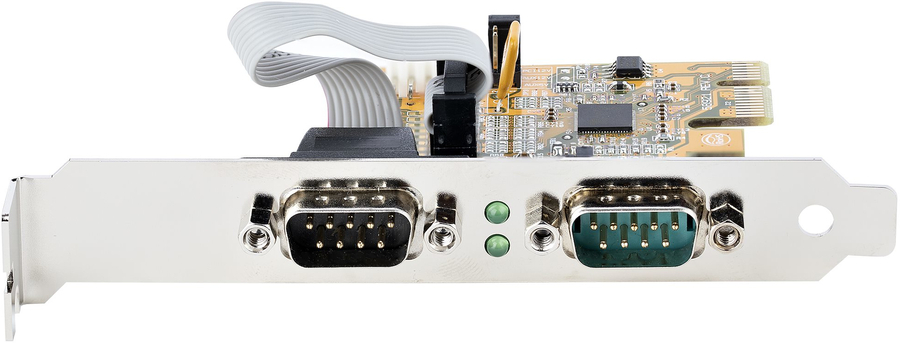

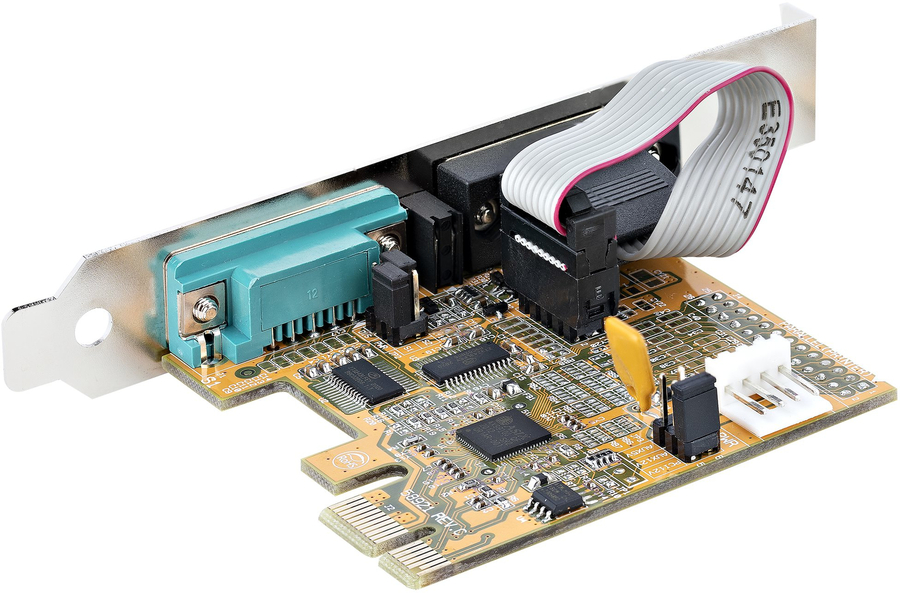

StarTech 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux

Home :: I/O Devices ::

Regularly: ~~$96.00~~
On Sale: $92.16 Sale Ends: April 26th, 2024

Manufacturer: StarTech

StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard/Low Profile Brackets, COM Retention, For Windows/Linux (21050-PC-SERIAL-CARD)

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
58387662	21050-PC-SERIAL-CARD	65030894760	Active

Details

General Information

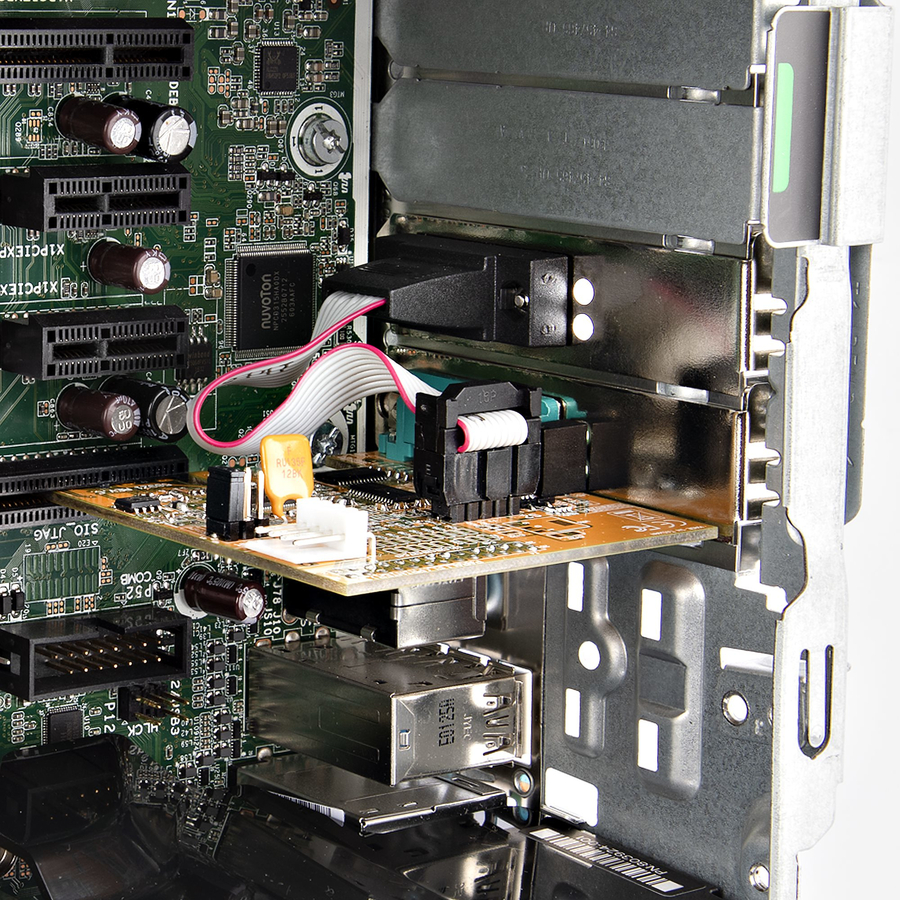

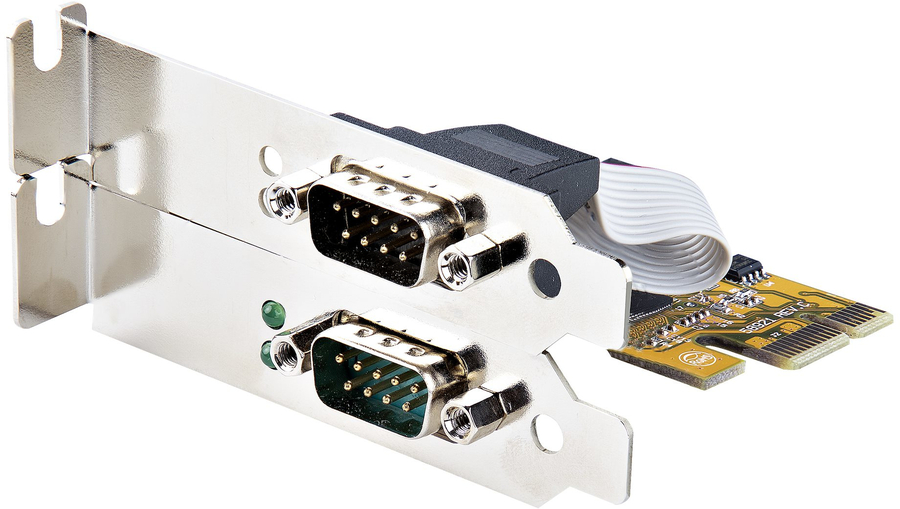

Summary	Baud Rate 921.6 Kbps per Port \| 256-byte FIFO \| PCIe 2.0 x1Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.Legacy ConnectivityInstall this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.Connect with EaseThe RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Ports & interfaces
Host interface	PCIe
Output interface	Serial
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCI 2.0
Serial ports quantity	2
Serial interface type	RS-232
Design
Internal	Yes
Product colour	Yellow
LED indicators	Activity
Features
Chipset	ASIX - AX99100, ASIX - ZT3243LFEY
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8, 9
Flow control support	Yes
Parity bit	Even, Mark, No, Odd, Space
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019
Technical details
Sustainability certificates	CE, RoHS
Weight & dimensions
Width	65 mm
Depth	67 mm
Height	18 mm
Weight	51 g
Packaging data

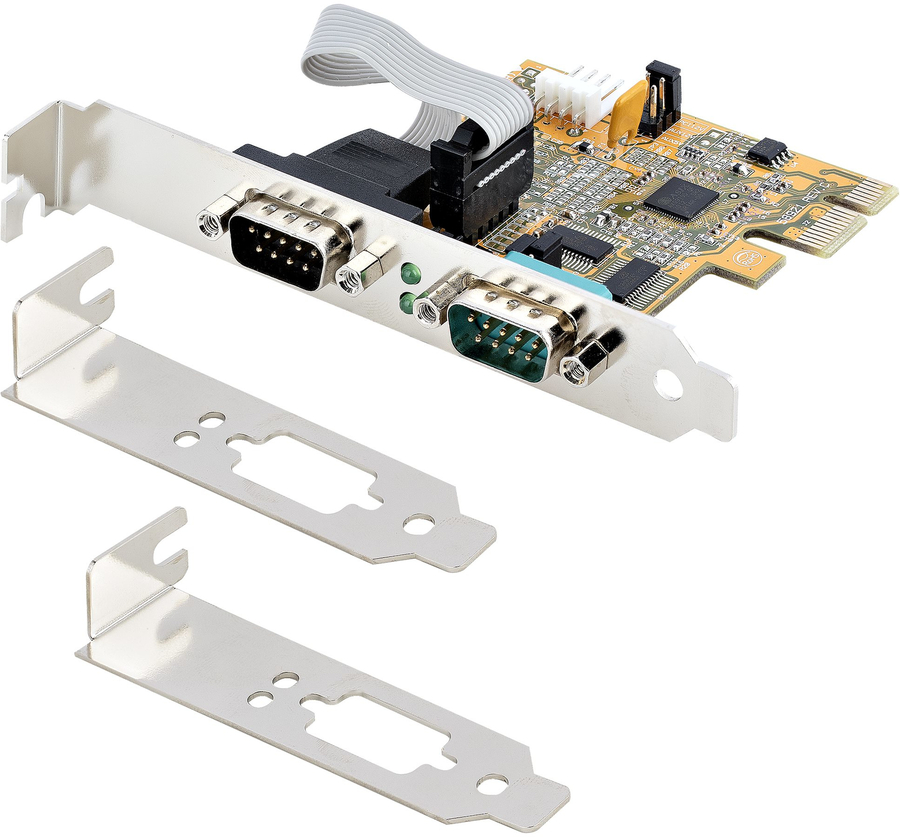

Mounting brackets included	Yes
Quick installation guide	Yes
Package width	207 mm
Package depth	144 mm
Package height	38 mm
Package weight	200 g
Logistics data
Harmonized System (HS) code	84733020
Products per master (outer) case	50 pc(s)
Master (outer) case width	530 mm
Master (outer) case length	440 mm
Master (outer) case height	340 mm
