StarTech Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs

Home :: I/O Devices :: Storage Controllers ::


Regularly: $258.00
On Sale: $247.68    Sale Ends: April 12th, 2024

Manufacturer: StarTech

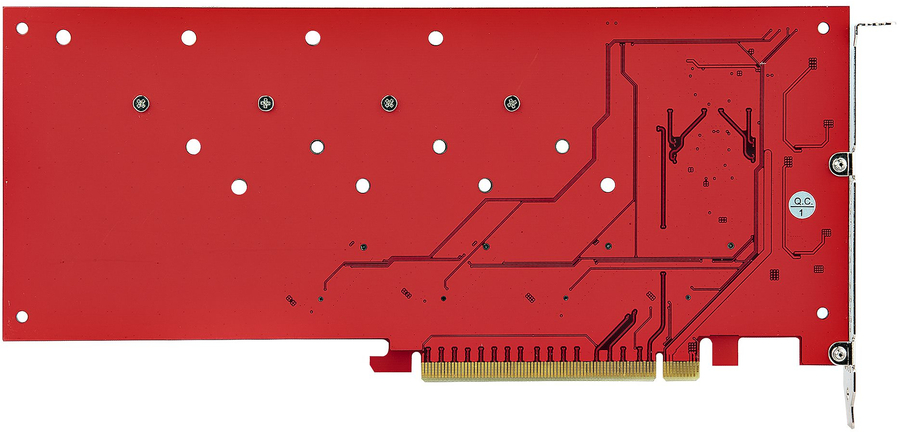

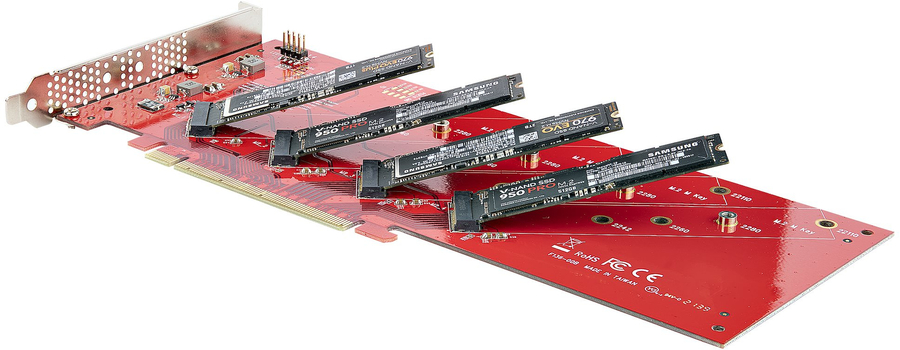

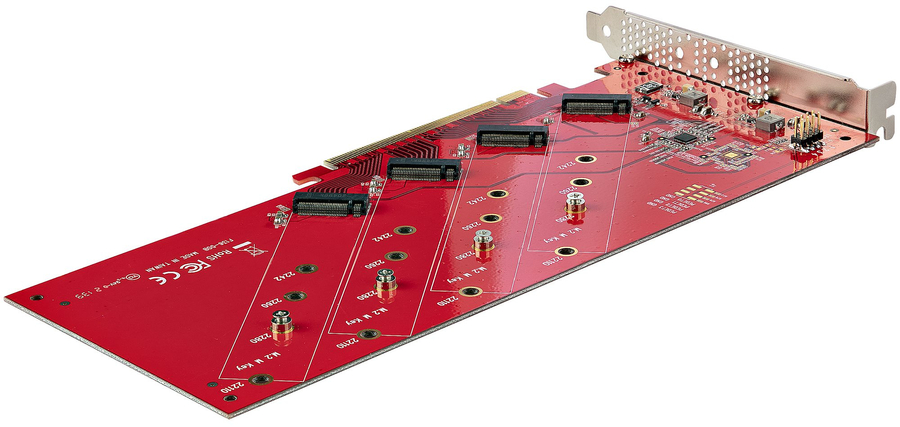

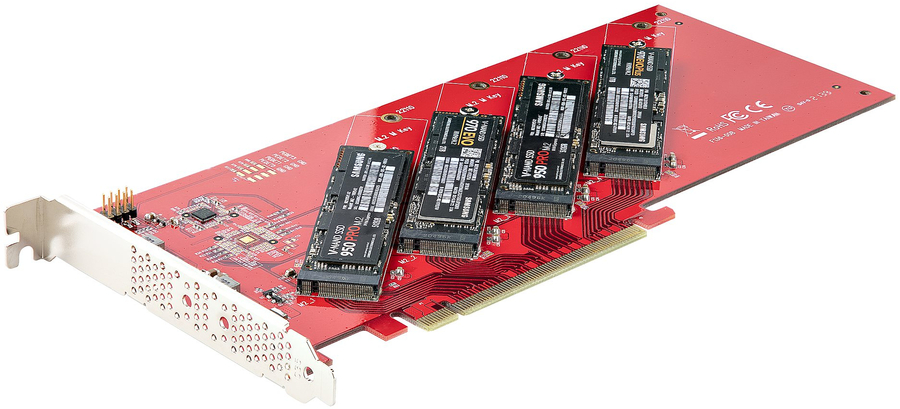

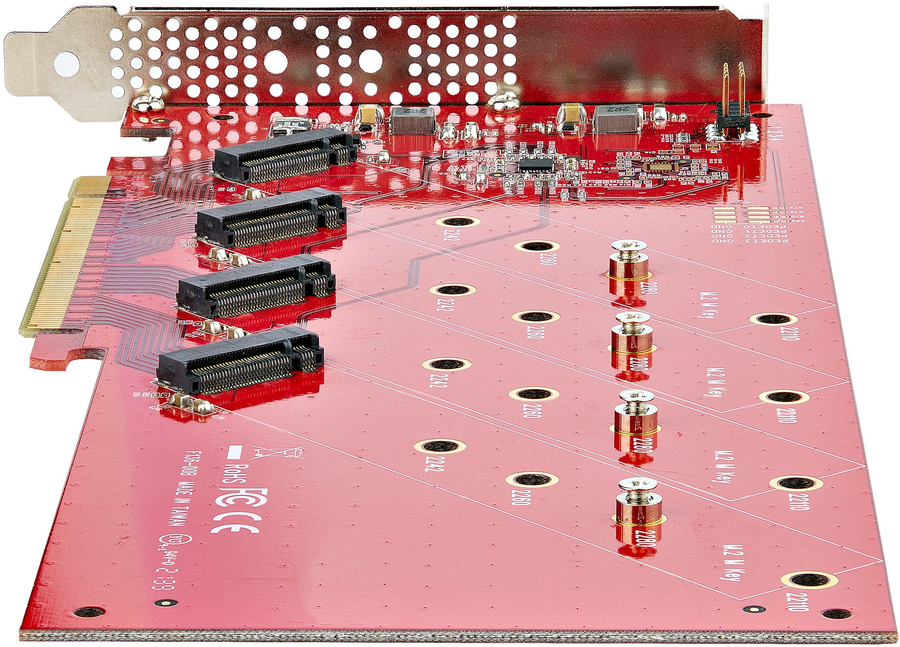

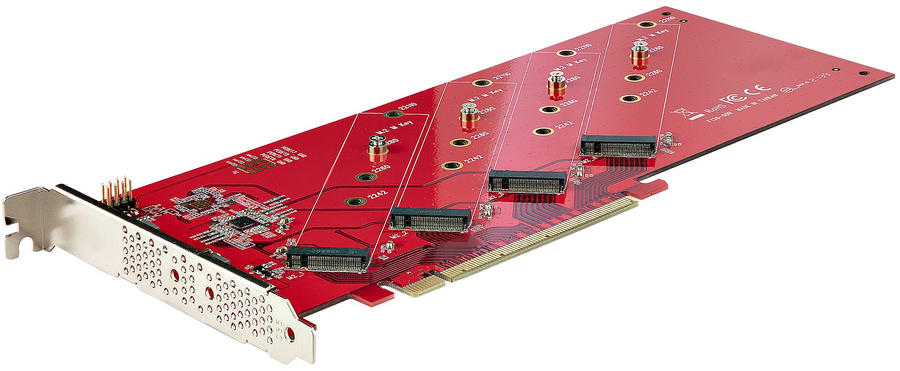

StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible (QUAD-M2-PCIE-CARD-B)

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58474438 QUAD-M2-PCIE-CARD-B 65030895606 Active

Details

General Information

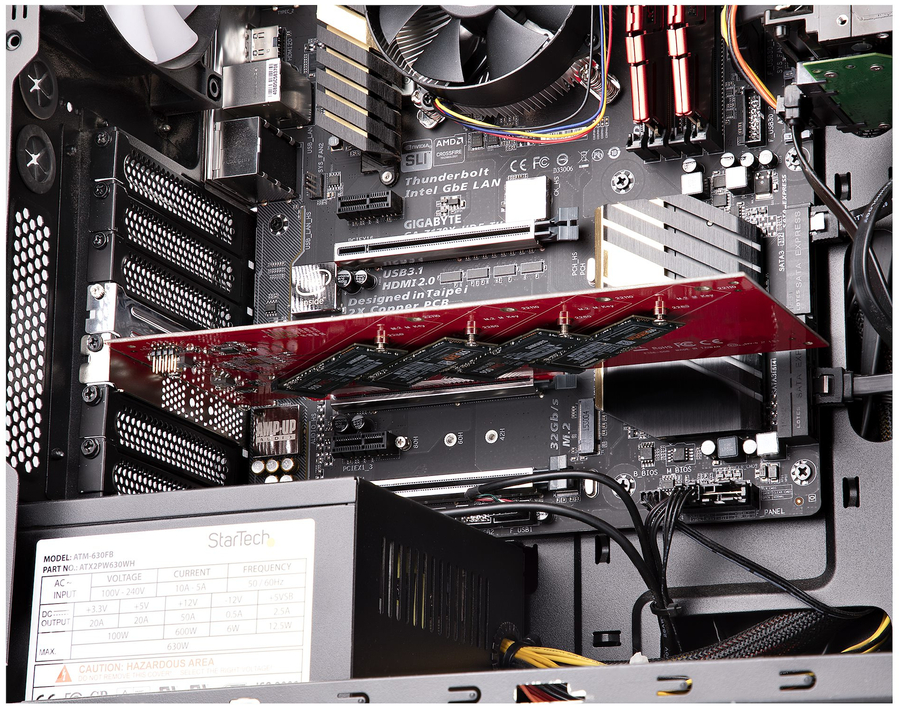

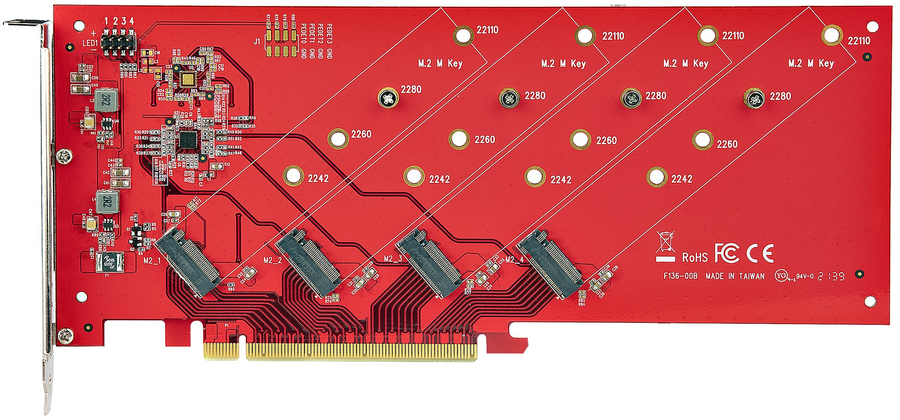

Summary Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | BifurcationThis Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.Boost System PerformanceTake full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.Access Four M.2 PCIe SSDs SimultaneouslyNo on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.Wide CompatibilityThe PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M2. Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.Vented BracketsThe pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistanceThe StarTech.com Advantage
Ports & interfaces
Host interface PCIe
Output interface M.2
Expansion card standard PCIe 4.0
Number of M.2 (M) slots 4
Design
Internal Yes
Product colour Red
LED indicators Yes
Mean time between failures (MTBF) 4353192 h
Features
Data transfer rate (max) 7.8 Gbit/s
Plug and Play Yes
Operational conditions
Operating temperature (T-T) -40 - 80 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 15 - 90%
Weight & dimensions
Width 290 mm
Depth 170 mm
Height 30 mm
Weight 150 g
Packaging data
Screws included Yes
Quick installation guide Yes
Package width 290 mm
Package depth 120 mm
Package height 30 mm
Package weight 150 g
Logistics data
Products per master (outer) case 30 pc(s)
Master (outer) case width 380 mm
Master (outer) case length 500 mm
Master (outer) case height 310 mm
