General Information |
|
Summary |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
|
|
Processor |
|
Processor manufacturer |
AMD |
|
Processor socket |
Socket AM5 |
|
Compatible processor series |
AMD Ryzen PRO 3000 Series, AMD Ryzen PRO 4000 Series |
|
Supported processor sockets |
Socket AM4 |
|
Maximum internal memory supported by processor |
128 GB |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
128 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
Non-ECC |
|
Internal memory |
4.4 TB |
|
Supported memory clock speeds |
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz |
|
Supported memory clock speed (max) |
8200 MHz |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, Micro SATA III |
|
Supported storage drive types |
HDD & SSD |
|
Number of HDDs supported |
4 |
|
Number of storage drives supported |
6 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 10 |
|
Graphics |
|
On-board graphics card |
No |
|
Internal I/O |
|
USB 2.0 connectors |
6 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
3 |
|
Number of SATA III connectors |
4 |
|
Number of SATA II connectors |
0 |
|
Number of SATA connectors |
0 |
|
Total number of SATA connectors |
4 |
|
CPU fan connector |
Yes |
|
Number of CPU fan connectors |
1 |
|
Number of water pump connectors |
1 |
|
RGB LED pin header |
Yes |
|
Number of RGB LED pin headers |
3 |
|

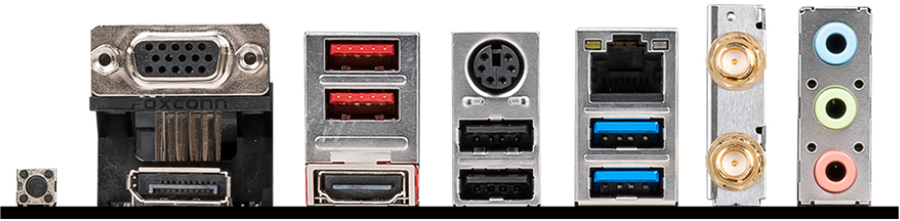

Rear panel I/O ports |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
Network |
|
Wi-Fi |
Yes |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.2 |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
AMD |
|
Motherboard chipset |
AMD B850 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC897 |
|
Product colour |
Black |
|
Expansion slots |
|
PCI Express x16 (Gen 3.x) slots |
3 |
|
PCI Express x16 (Gen 4.x) slots |
1 |
|
Number of M.2 (M) slots |
2 |
|
1st M.2 largest key size |
2280 |
|
1st M.2 highest PCI Express generation |
4.0 |
|
2nd M.2 largest key size |
2580 |
|
2nd M.2 highest PCI Express generation |
4.0 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
6.0 |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
|
Other features |
|
mSATA ports quantity |
0 |
