General Information |
|
Summary |

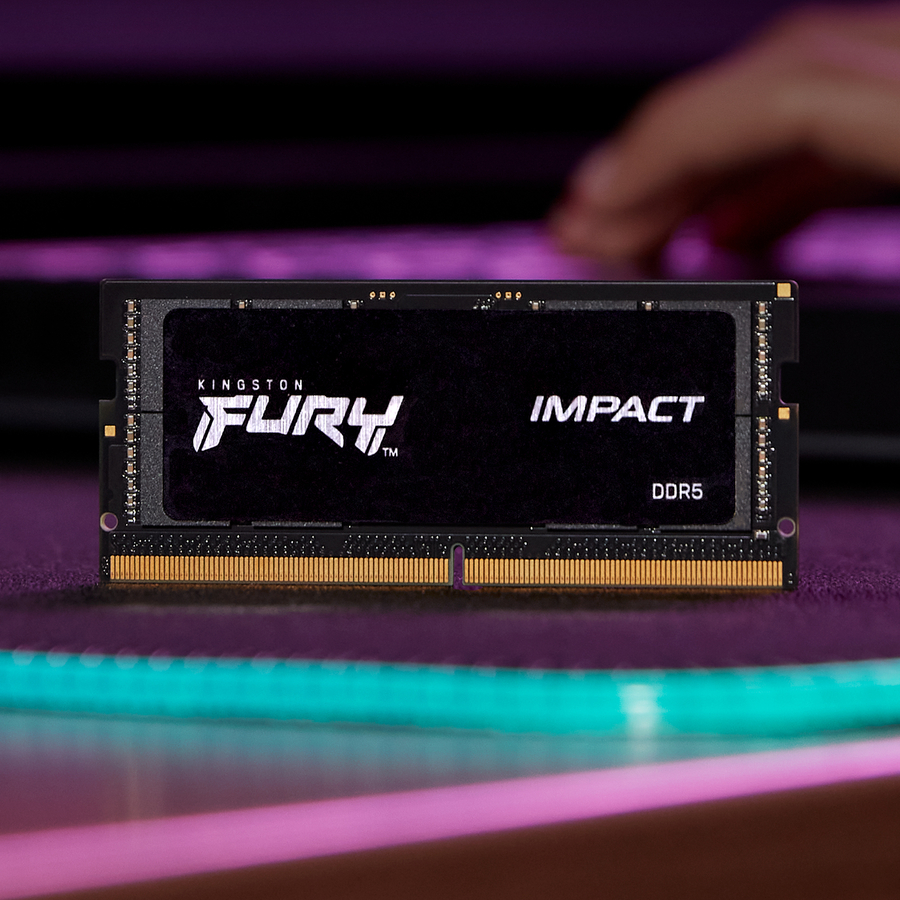

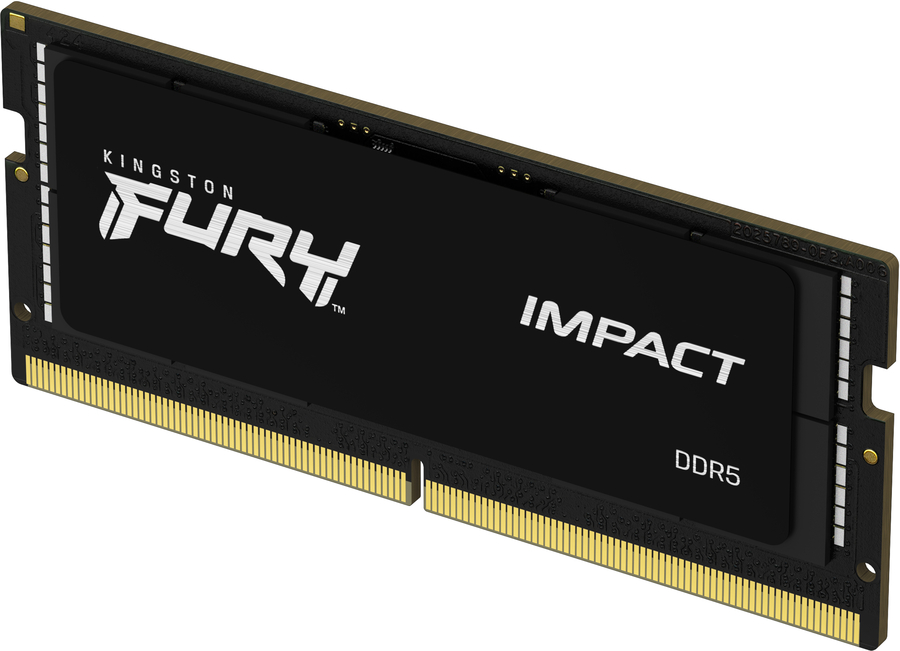

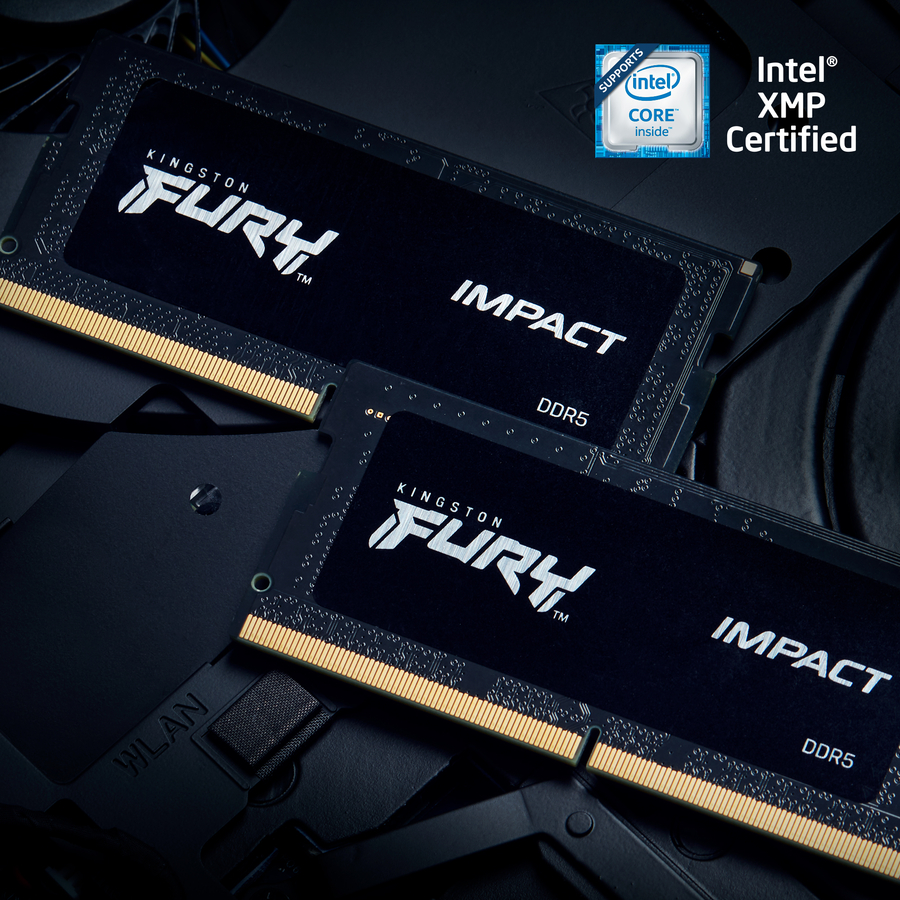

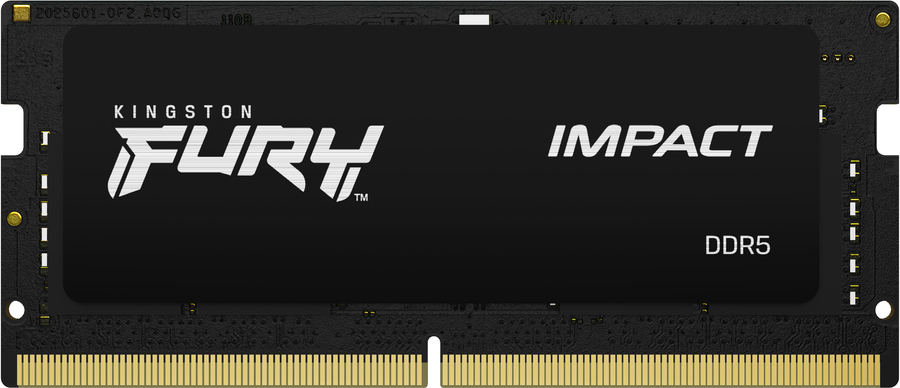

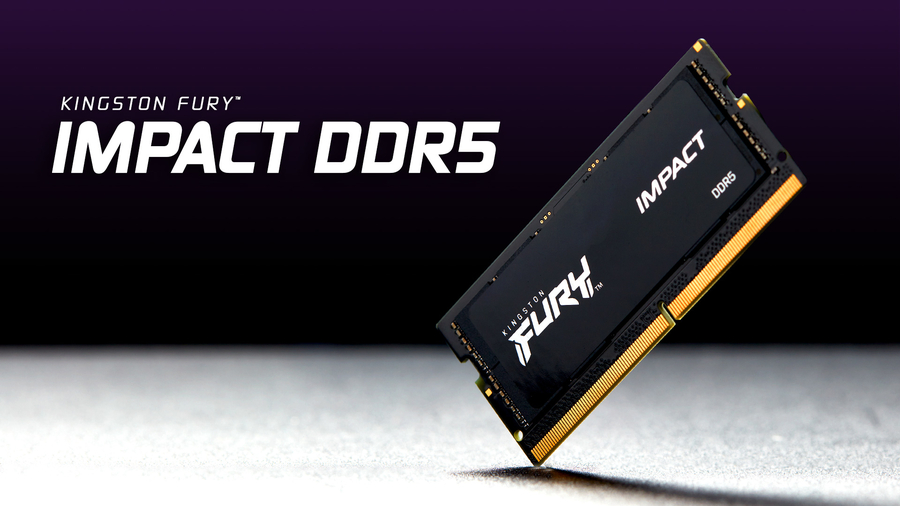

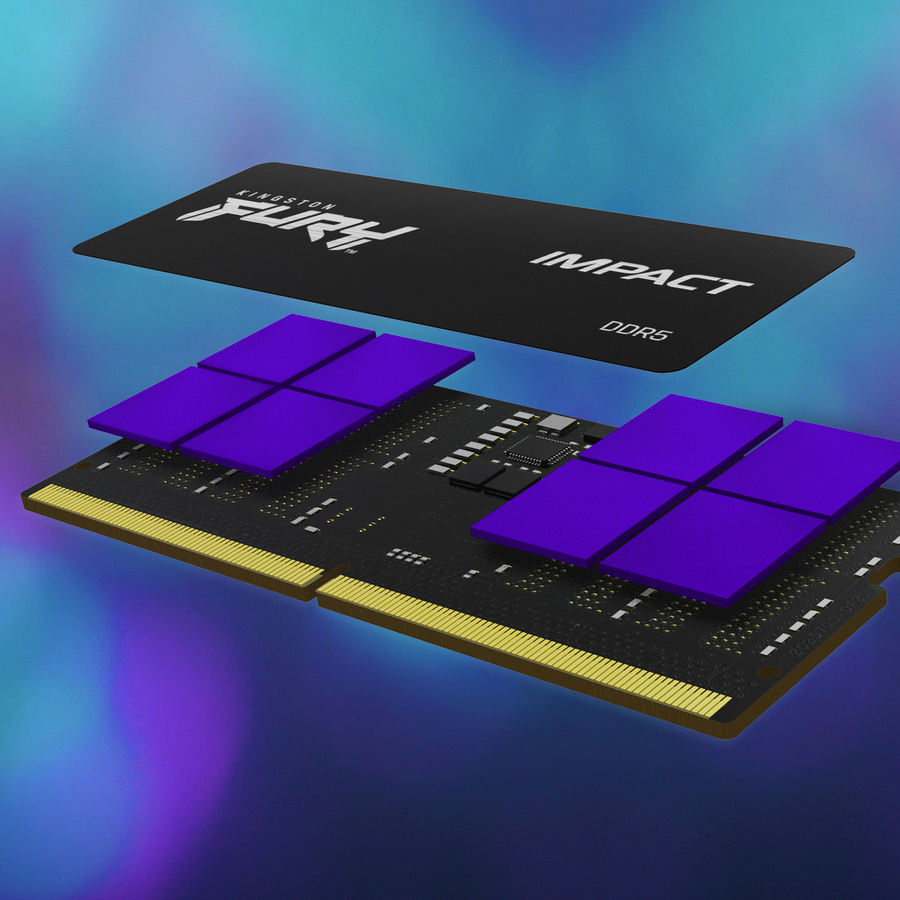

Your notebook or small-form-factor machine can now experience the latest, cutting-edge memory technology with Kingston FURY™ Impact DDR5. With Intel® XMP 3.0 Certified SODIMM kit capacities of up to 64GB, Kingston FURY Impact DDR5 packs all the enhanced features of DDR5 into a slim, compact form factor. On Plug N Play* enabled modules, Kingston FURY Impact DDR5 automatically overclocks, giving your system a boost in performance without having to enable a profile. Modules featuring XMP 3.0 profiles can overclock to the highest frequency published, up to 6400MT/s, by selecting the profile in BIOS settings.

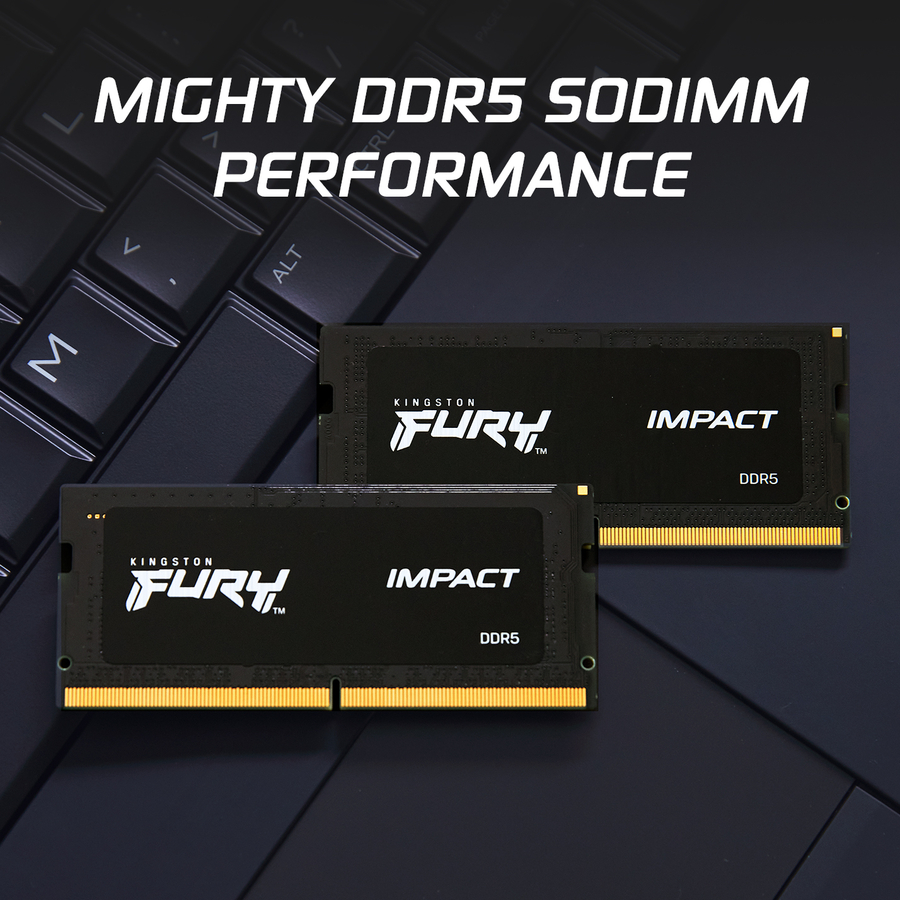

Mighty DDR5 SODIMM performance
With a starting speed of 4800MT/s, DDR5 is 50% faster than DDR4 for a boost in gaming, rendering, and multitasking.
Plug N Play automatic overclocking functionality*
Kingston FURY Impact DDR5’s PnP modules automatically overclock to the highest listed speed.

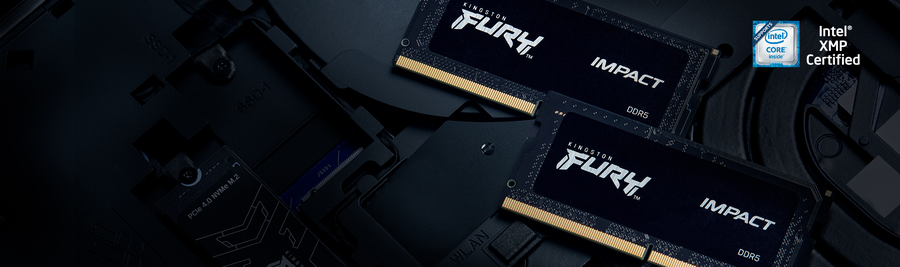

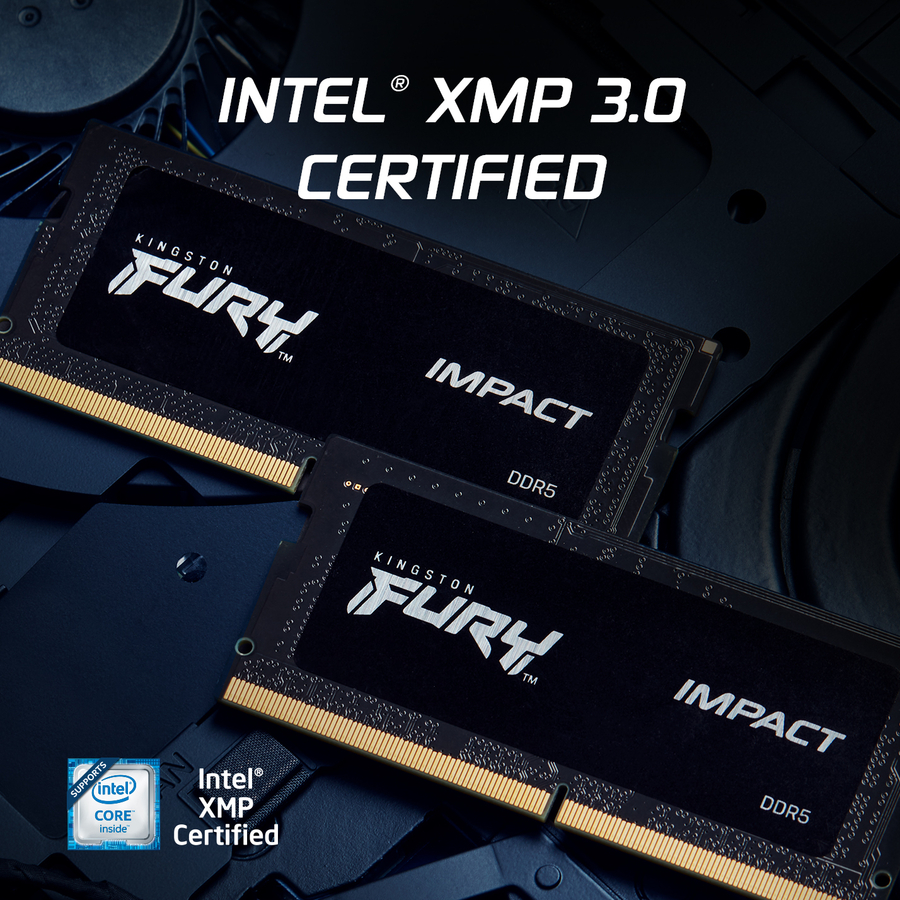

Intel® XMP 3.0 Certified
Maximise memory performance with advanced pre-optimised timings, speed and voltage for overclocking.

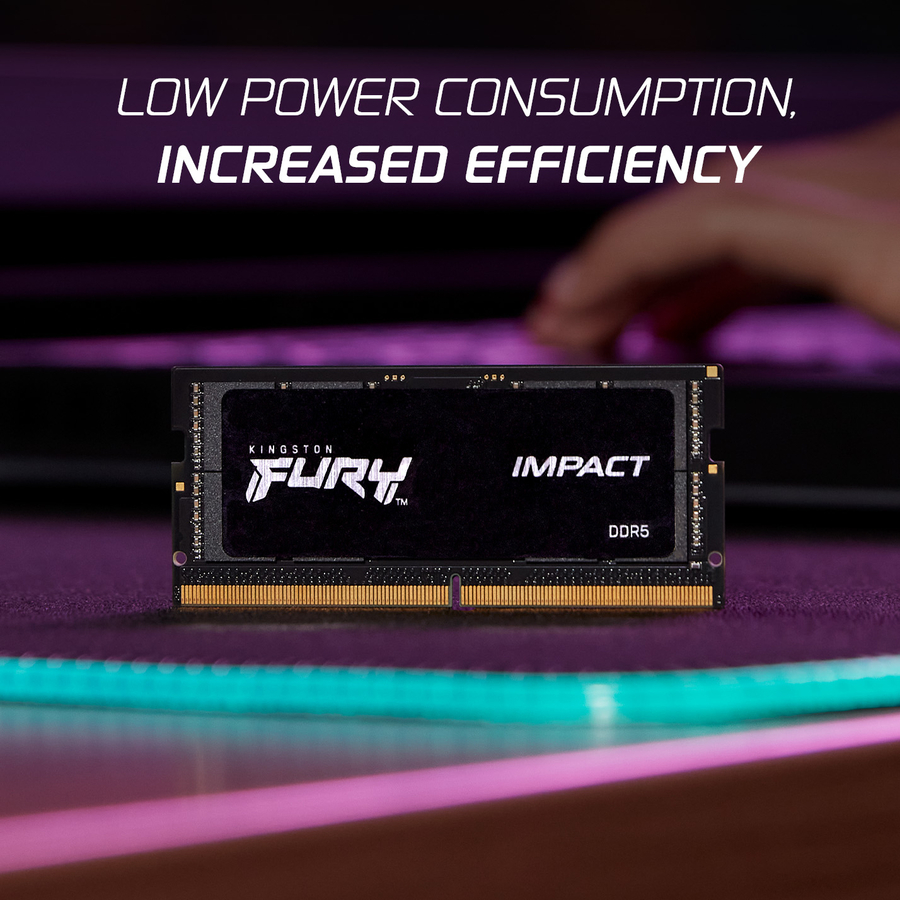

Low Power Consumption, Increased efficiency
Keep your system cool and efficient with Kingston FURY Impact DDR5’s low power draw.

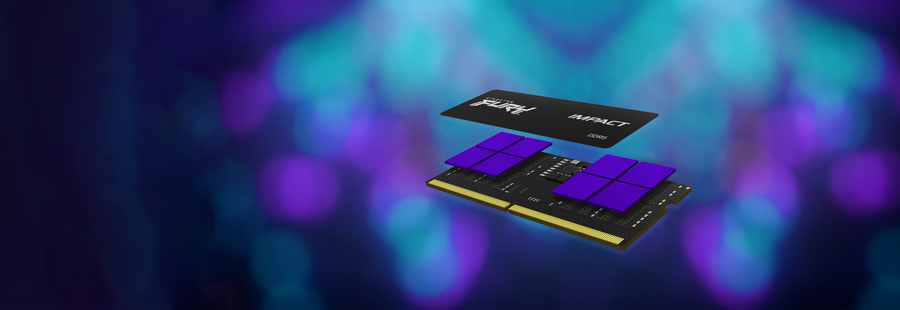

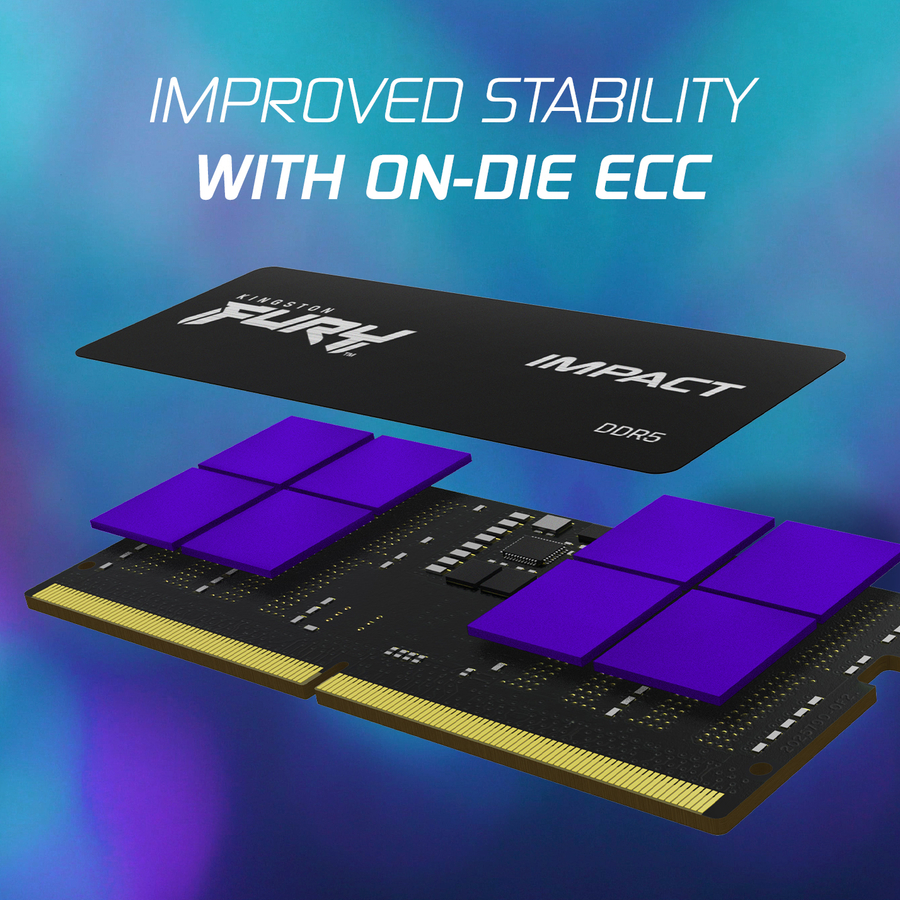

Improved stability with on-die ECC
Maintain data integrity while hitting overclocking speeds. |
|
Features |
|
Internal memory |
8 GB |
|
Memory layout (modules x size) |
1 x 8 GB |
|
Internal memory type |
DDR5 |
|
Memory clock speed |
2400 MHz |
|
Component for |
Laptop |
|
Memory form factor |
262-pin SO-DIMM |
|
ECC |
No |
|
Buffered memory type |
Unregistered (unbuffered) |
|
On-Die ECC |
Yes |
|
CAS latency |
38 |
|
Memory data transfer rate |
4800 MT/s |
|
Memory ranking |
1 |
|
Memory voltage |
1.1 V |
|
Module configuration |
1024M x 64 |
|
Row cycle time |
48 ns |
|
Refresh row cycle time |
295 ns |
|
Row active time |
29.12 ns |
|
Intel Extreme Memory Profile (XMP) |
Yes |
|
Intel Extreme Memory Profile (XMP) version |
3.0 |
|
SPD profile |
Yes |
|
Programming power voltage (VPP) |
1.8 V |
|
Country of origin |
China, Taiwan |
|
Cooling type |
Heatsink |
|
Lead plating |
Gold |
|
JEDEC standard |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 85 °C |
|
Storage temperature (T-T) |
-55 - 100 °C |
|
Weight & dimensions |
|
Width |
3.8 mm |
|
Depth |
69.6 mm |
|
Height |
30 mm |
|
Weight |
8 g |
|
Packaging data |
|
Package width |
57.1 mm |
|
Package depth |
14 mm |
|
Package height |
171.4 mm |
|
Package weight |
26.72 g |
|
Logistics data |
|
Master (outer) case width |
196.8 mm |
|
Master (outer) case length |
311.1 mm |
|
Master (outer) case height |
61 mm |
|
Harmonized System (HS) code |
84733020 |
|
Master (outer) case gross weight |
812.13 g |
|
Products per master (outer) case |
25 pc(s) |
