General Information |
|
Summary |
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
High-resolution HDMI monitoring
ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual 10G Ethernet bandwidth
With dual onboard 10G LAN powered by an Intel X710AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
Server-management Solution
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Enhanced security
ASUS P12R server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all P12R server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1200 (Socket H5) |
|
Compatible processor series |
Intel® Pentium®, Intel Xeon E |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
128 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
Supported memory clock speeds |
2666,2933,3200 MHz |
|
Supported memory module capacities |
8GB, 16GB, 32GB |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Graphics |
|
Parallel processing technology support |
Not supported |
|
Graphics card family |
ASPEED |
|
Graphics card |
AST2600 |
|
On-board graphics card model |
Aspeed AST2600 |
|
On-board graphics card memory |
64 MB |
|
Internal I/O |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
3 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
2 |
|
Number of SATA III connectors |
8 |
|
ATX Power connector (24-pin) |
Yes |
|
Peripheral (Molex) power connectors (4-pin) |
6 |
|
EPS power connector (8-pin) |
Yes |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|
Serial port headers |
1 |
|

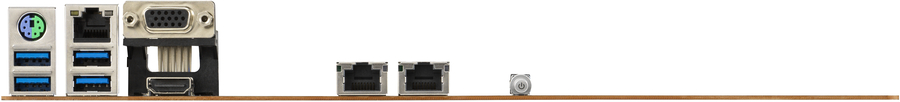

Rear panel I/O ports |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
3 |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI ports quantity |
1 |
|
PS/2 ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
LAN controller |
Intel X710-AT2 |
|
Features |
|
Component for |
Server |
|
Motherboard form factor |
ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel C256 |
|
Expansion slots |
|
Number of M.2 (M) slots |
2 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 50 °C |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Packaging data |
|
Package weight |
1.3 kg |
|
Weight & dimensions |
|
Width |
305 mm |
|
Depth |
244 mm |
|
Other features |
|
Weight |
760 g |
