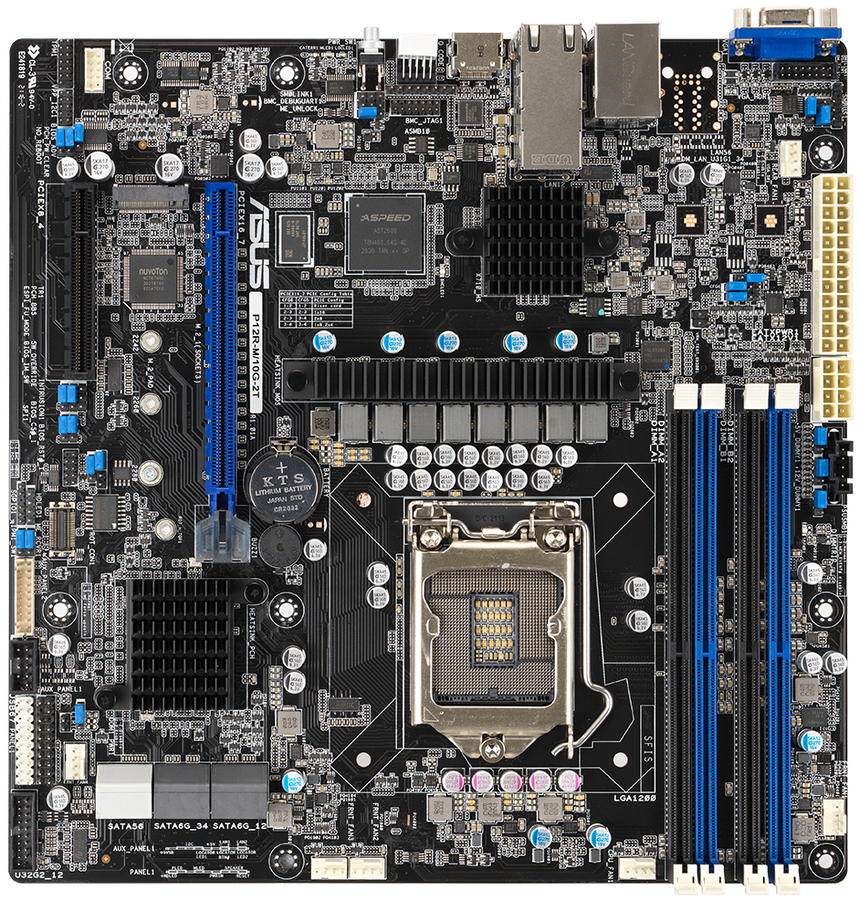

Asus P12R-M/10G-2T C256 S1200 mATX Mainboard

Home :: Mainboards :: Intel Server MBs ::


Regularly: $585.00
On Sale: $561.60    Sale Ends: April 12th, 2024

Manufacturer: Asus

Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual 10G LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58582927 P12R-M/10G-2T 4711081419747 Active

Details

General Information
Summary Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

PCIe 4.0 Ready

PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors

Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

High-resolution HDMI monitoring

ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.

Dual Ethernet bandwidth

With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

ASUS ASMB10-iKVM

ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center

ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Enhanced security

ASUS P12R server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all P12R server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

* Both PFR and TPM are options, available on request.
Processor
Processor manufacturer Intel
Processor socket LGA 1200 (Socket H5)
Compatible processor series Intel® Pentium®, Intel Xeon E
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Memory channels Dual-channel
Supported memory clock speeds 2666,2933,3200 MHz
Supported memory module capacities 4GB, 8GB, 16GB, 32GB
Storage controllers
Supported storage drive interfaces M.2, SATA III
Graphics
Graphics card family ASPEED
Graphics card AST2600
On-board graphics card memory 64 MB
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 2
Number of SATA III connectors 6
ATX Power connector (24-pin) Yes
Peripheral (Molex) power connectors (4-pin) 6
EPS power connector (8-pin) Yes
TPM connector Yes
Serial port headers 1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 3
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
Network
Wi-Fi No
Ethernet LAN Yes
Features
Component for Server
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel C252
Expansion slots
PCI Express x4 slots 1
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 10 - 50 °C
Storage relative humidity (H-H) 20 - 90%
Logistics data
Harmonized System (HS) code 84733020
Packaging data
Package weight 9.5 kg
Weight & dimensions
Width 244 mm
Depth 244 mm
