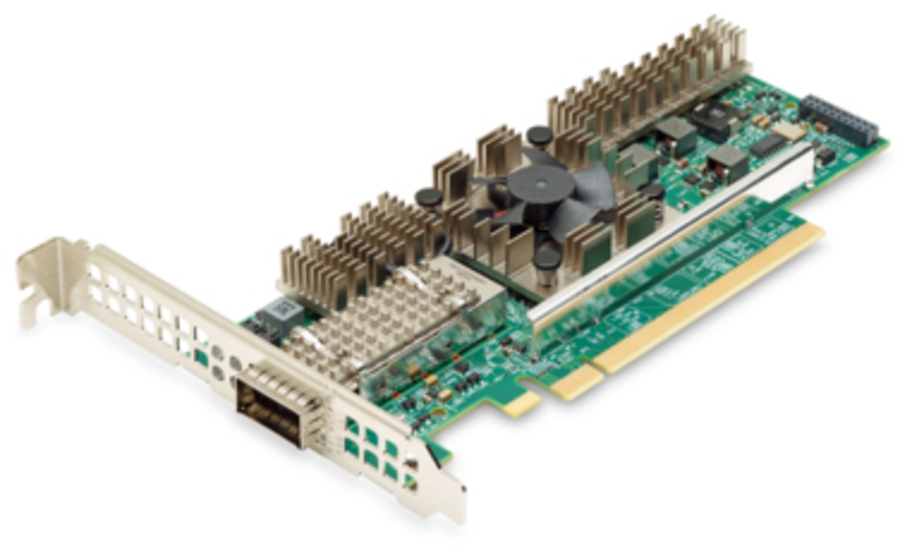

Broadcom BCM957414A4140C Single-Port 50 Gb/s QSFP28 PCI-E Gen3 x8 NIC

Home :: Networking :: Wired Networking :: Wired Network Adapters ::


Regularly: $488.00
On Sale: $468.48    Sale Ends: April 26th, 2024

Manufacturer: Broadcom

NetXtreme® E-Series Single-Port 50GbE PCIe Ethernet NIC, x8 PCI Express v3.0, QSFP28

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58616976 BCM957414A4140C 8592978149260 Active

Details

General Information
Summary Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series P150P 1x50G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.

The P150P 1x50G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.

Driven by the growing need for higher server bandwidth and storage capacity to support new and emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting latest networking technologies, such as server virtualization and NVMe-oF™. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.

With its market-leading hardware acceleration technologies, the NetXtreme-E Series P150P 1x50G PCIe NIC addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Fiber
Fiber ports quantity 1
Fiber optic connector QSFP28
Network
Maximum data transfer rate 50000 Mbit/s
Ethernet LAN Yes
Ethernet LAN data rates 50000,25000,40000 Mbit/s
Full duplex Yes
Design
Internal Yes
Component for PC
Product colour Green, Grey
LED indicators Yes
Certification EN 62368-1:2014 IEC 62368-1 (ed. 2) UL 1977 UL 796 UL 94 EN 55032:2012/AC:2013 Class BEN 55024:2010EN 61000-3-2:2014 EN 61000-3-3:2013 CFR47 Part 15 Subpart B Class B ICES-003 Class B AS/NZS CISPR 22:2009 +A1:2010 CNS 13438 (2006) Class B CNS 15663 KN32 Class B KN35 VCCI V-3 (2015-04) EN 55024:2010(EN 61000-4-2) FCC
Operational conditions
Storage temperature (T-T) -40 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Sustainability
Sustainability certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
