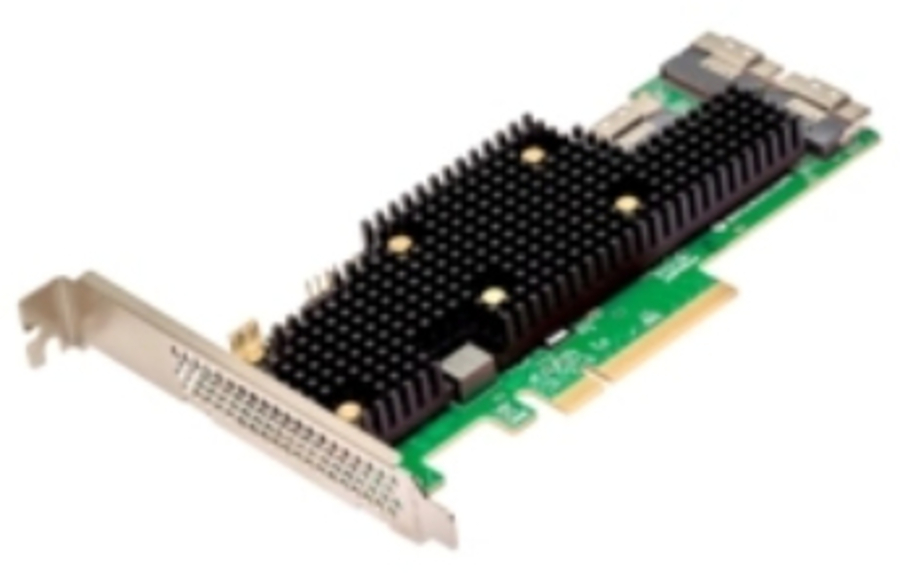

Broadcom 9600-24i 24-Port SATA/SAS Controller
|
|
Regularly: $1404.00
On Sale: $1347.84
Sale Ends:
April 26th, 2024
Manufacturer:
Broadcom
Active, x8 lane PCI Express 4.0, SAS/SATA: 240; NVMe: up to 32
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58617022
|
05-50111-01
|
830343007707 |
Active
|
Details
|
General Information |
|
Summary |
The 9600-24i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9600-24i eHBA delivers the performance and scalability needed by critical applications. |
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
SAS, SATA |
|
Expansion card form factor |
Full-height / Low-profile |
|
Expansion card standard |
PCIe 4.0 |
|
NVMe |
Yes |
|
Design |
|
Internal |
Yes |
|
Product colour |
Green, Silver |
|
Mean time between failures (MTBF) |
5000000 h |
|
Certification |
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020) |
|
Features |
|
Data transfer rate (max) |
12 Gbit/s |
|
S.M.A.R.T. support |
Yes |
|
Plug and Play |
Yes |
|
Power |
|
Power consumption (typical) |
17 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
SUSE Linux Enterprise Server |
|
Other operating systems supported |
Yes |
|
Technical details |
|
Sustainability certificates |
RoHS, WEEE |
|
Weight & dimensions |
|
Width |
155.6 mm |
|
Depth |
68.9 mm |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Other features |
|
Channels quantity |
24 channels |
|
