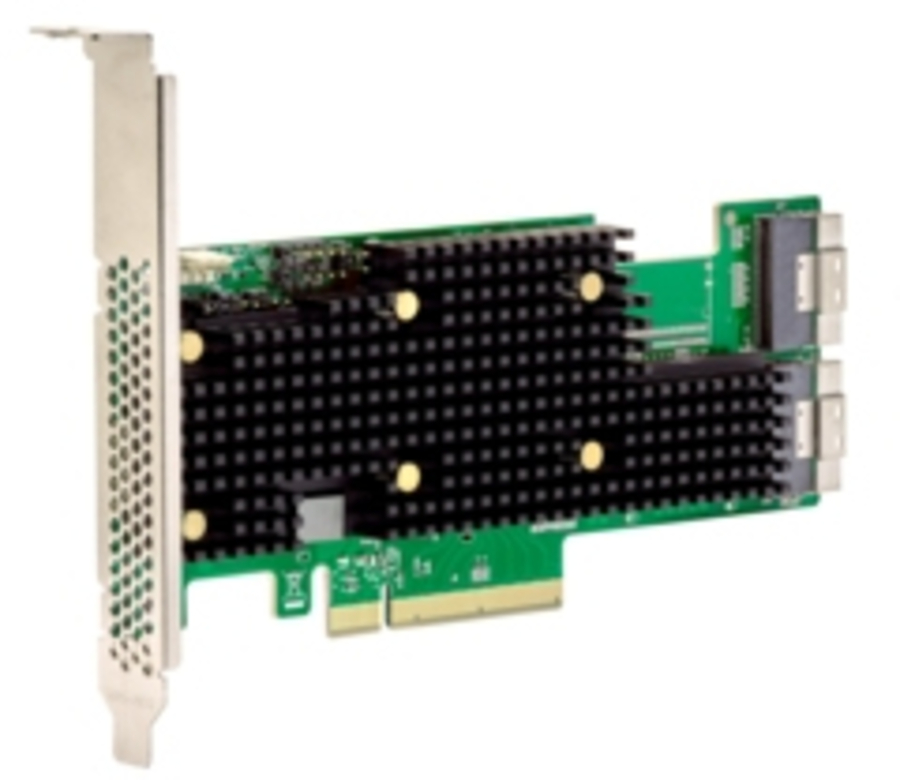

Broadcom 9620-16i 16-Port SATA/SAS Controller
|
|
Price: $1096.00
Manufacturer:
Broadcom
Active, full height and low profile, 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA, 2 x8 SFF-8654 (SlimSAS), Low Profile Bracket, FH (attached)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58617025
|
05-50111-02
|
830343007714 |
Active
|
Details
|
General Information |
|
Summary |
The 9620-16i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9620-16i eHBA delivers the performance and scalability needed by critical applications. |
|
Ports & interfaces |
|
Host interface |
PCIe |
|
Output interface |
SAS, SATA |
|
Expansion card form factor |
Full-height / Low-profile |
|
Expansion card standard |
PCIe 4.0 |
|
NVMe |
Yes |
|
Internal mini-SAS ports |
2 |
|
Design |
|
Internal |
Yes |
|
Product colour |
Black, Green, Silver |
|
Mean time between failures (MTBF) |
5000000 h |
|
Certification |
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020) |
|
Features |
|
Data transfer rate (max) |
22.5 Gbit/s |
|
S.M.A.R.T. support |
Yes |
|
RAID levels |
0, 1, 10 |
|
Power |
|
Power consumption (typical) |
17 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
SUSE Linux Enterprise Server |
|
Other operating systems supported |
VMware vSphere ESXi |
|
Technical details |
|
Warranty period |
3 year(s) |
|
Compliance certificates |
RoHS, WEEE |
|
Sustainability compliance |
Yes |
|
Weight & dimensions |
|
Width |
155.6 mm |
|
Depth |
68.8 mm |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Mounting brackets included |
Yes |
|
