General Information |
|
Summary |

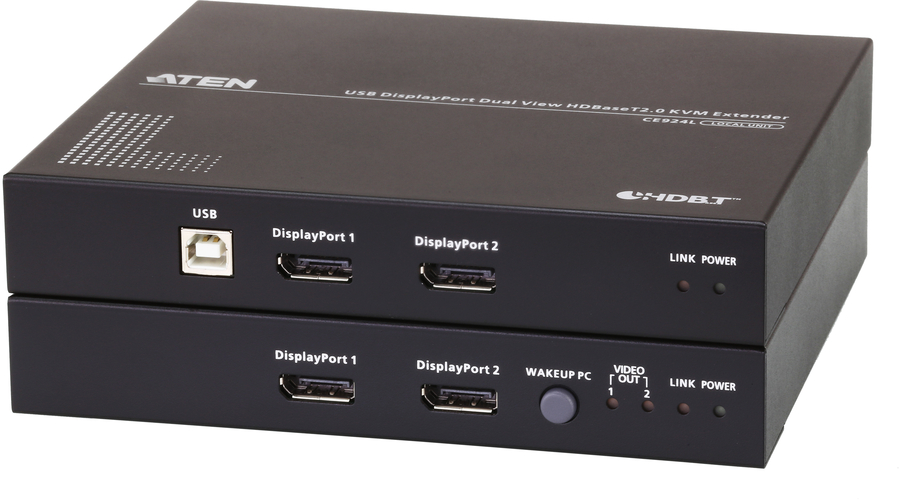

The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. |
|
Features |
|
Type |
Transmitter & receiver |
|
Connectivity technology |
Wired |
|
Maximum digital resolution |
4096 x 2160 pixels |
|
Material |
Metal |
|
LED indicators |
Yes |
|

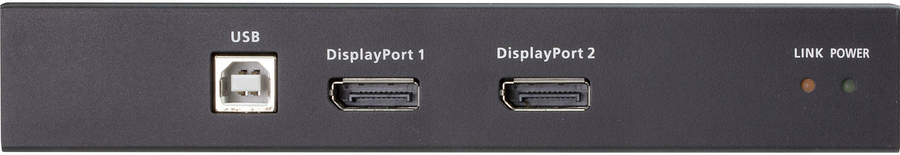

Transmitter |
|
Transmitter video port type |
DisplayPort |
|
RJ-45 ports quantity (transmitter) |
1 |
|

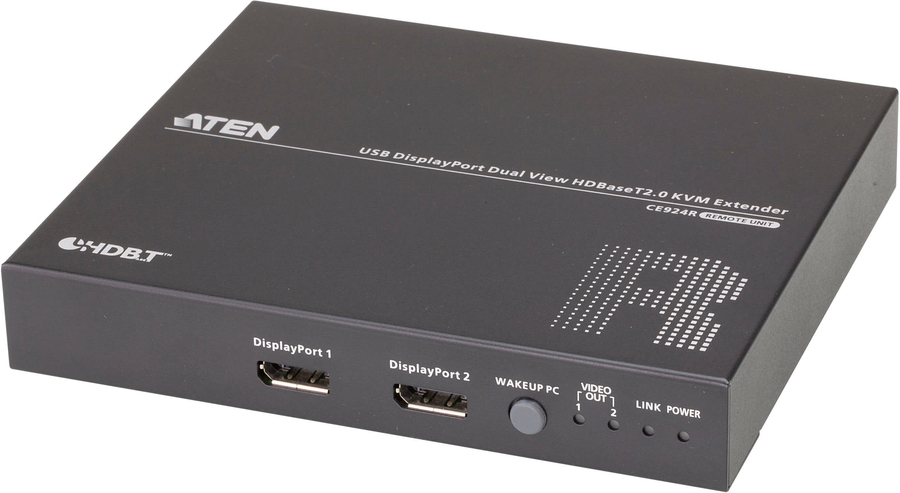

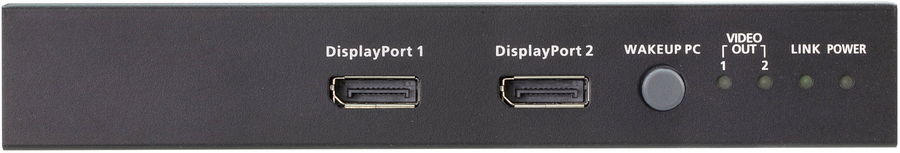

Receiver |
|
Receiver local video port type |
DisplayPort |
|
RJ-45 ports quantity (receiver) |
1 |
|
Ports & interfaces |
|
USB port type |
USB Type-A |
|
Weight & dimensions |
|
Transmitter width |
15.4 cm |
|
Transmitter depth |
17.4 cm |
|
Transmitter height |
2.88 cm |
|
Transmitter weight |
820 g |
|
Receiver width |
15.6 cm |
|
Receiver depth |
17.4 cm |
|
Receiver height |
2.88 cm |
|
Receiver weight |
850 g |
|
Packaging content |
|
AC adapter included |
Yes |
|
Cables included |
DisplayPort, USB Type-A to USB Type-B |
|
Manual |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Storage relative humidity (H-H) |
0 - 80% |
