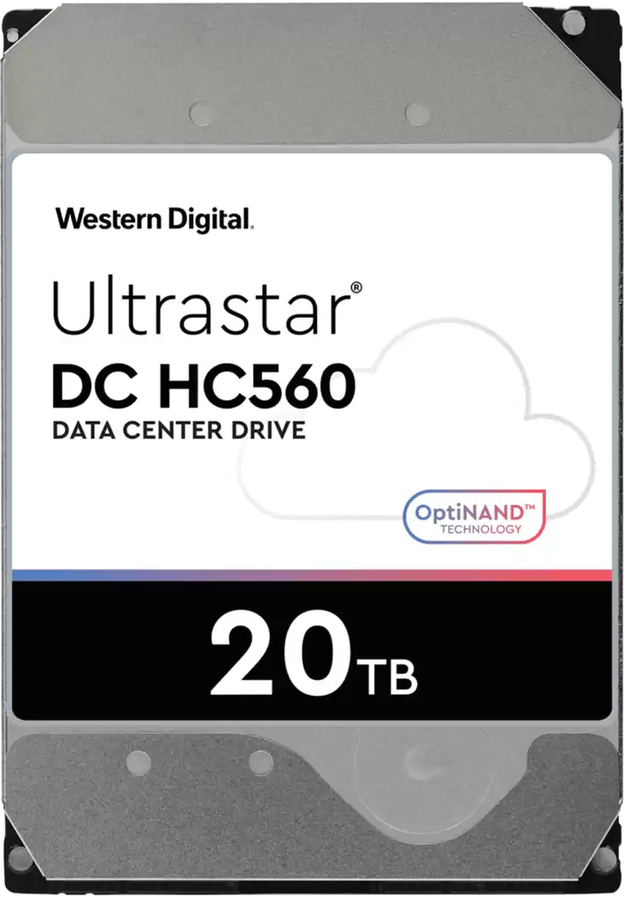

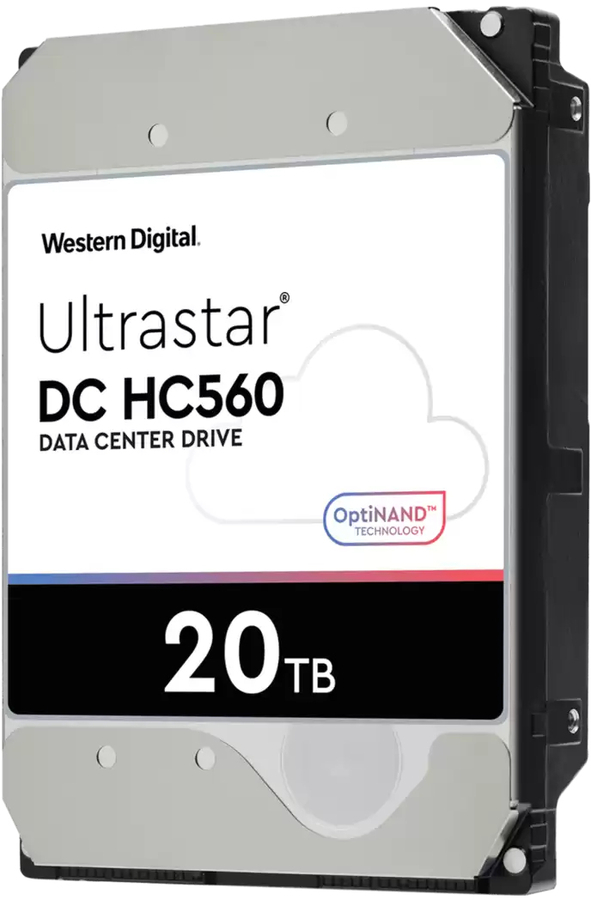

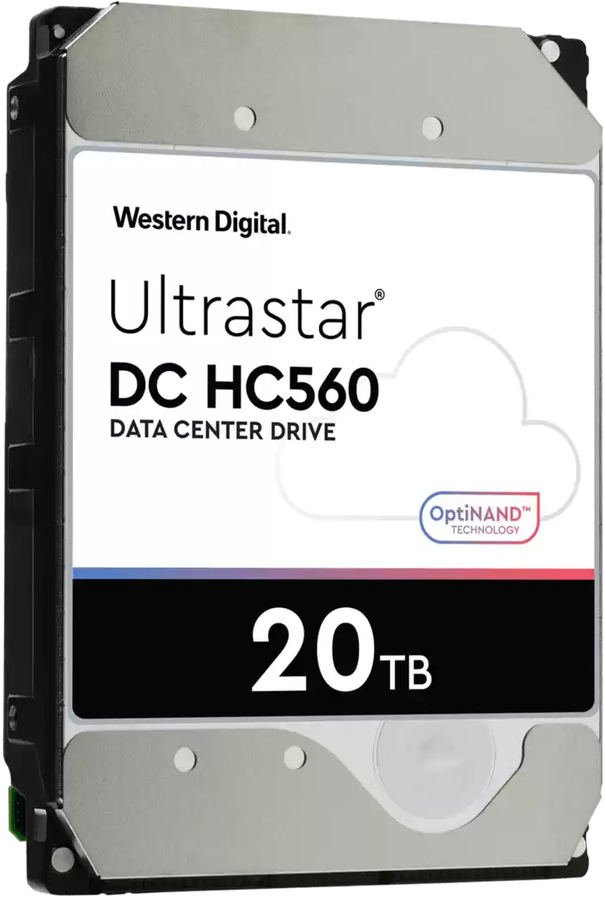

WD Ultrastar DC HC560 20TB 7200RPM 512MB SE SAS HDD

Home :: Hard Drives & SSDs :: Internal HDDs ::

Regularly: $657.00
On Sale: $630.72    Sale Ends: April 26th, 2024

Manufacturer: WD

20 TB, SE, SAS, 3.5 Inch, 512MB, 12 GB/s, 101.6 x 26.162 x 147 mm, 690 g

Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58645121 0F38652 8592978391447 Active


General Information
Summary 20TB capacity with a reimagined HDD
An innovative storage architecture to help our customers meet their need for exponential data growth.

Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. HDDs deliver the capacity, performance and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.

Western Digital has developed flash-enhanced drives with OptiNAND™ technology by vertically integrating our leading NAND flash with our world-class HDDs. Western Digital HDDs have been leaders in areal density with industry first technologies of energy-assisted magnetic recording technology (EAMR), triple-stage actuator (TSA), HelioSeal®, and now OptiNAND technology. Higher areal density means higher capacities to meet storage challenges.

20TB1 HDDs with OptiNAND Technology
OptiNAND integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media, and incorporates innovative changes to the firmware algorithm and system-on-a-chip (SoC). OptiNAND is not a hybrid technology. The drive works smarter, with enhanced firmware algorithms taking advantage of expanded metadata that has been offloaded to the iNAND, enabling more tracks per inch (TPI) with resulting increased areal density.

The Ultrastar DC HC560, with the first implementation of OptiNAND technology’s capacity-enabling features, delivers an unbeaten 20TB capacity in a nine-disk platform (2.2TB/platter) with CMR recording format
HDD size 3.5"
HDD capacity 20 TB
HDD speed 7200 RPM
Interface SAS
Type HDD
Component for Server/workstation
HDD interface transfer rate 1.2 Gbit/s
HDD sustained transfer rate 257 MiB/s
Average latency 4.16 ms
Uncorrectable Bit Error Rate (UBER) < 1 per 10^15 bits read
24/7 operation Yes
Workload rate limit 550 TB/year
Mean time between failures (MTBF) 2.5 h
Windows operating systems supported Yes
Linux operating systems supported Yes
Operating voltage 5 / 12 V
Operational conditions
Operating temperature (T-T) 5 - 60 °C
Storage temperature (T-T) -40 - 70 °C
Operating vibration 0.7 G
Non-operating vibration 1.04 G
Operating shock 50 G
Non-operating shock 250 G
Weight & dimensions
Width 101.6 mm
Height 147 mm
Depth 26.2 mm
Weight 690 g
Logistics data
Harmonized System (HS) code 84717050
