StarTech 3-Port USB-C MST Hub - USB Type-C to 3x HDMI Multi-Monitor Adapter for Laptop

Home :: Audio & Video Products :: Video Products ::


Regularly: $112.00
On Sale: $107.52    Sale Ends: April 12th, 2024

Manufacturer: StarTech

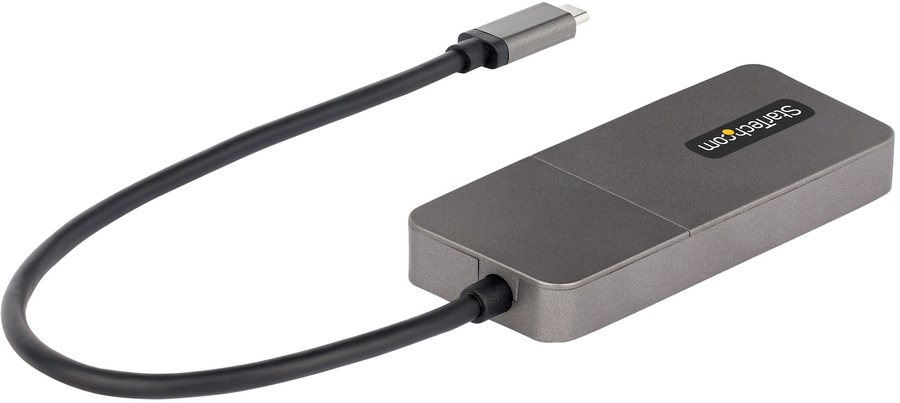

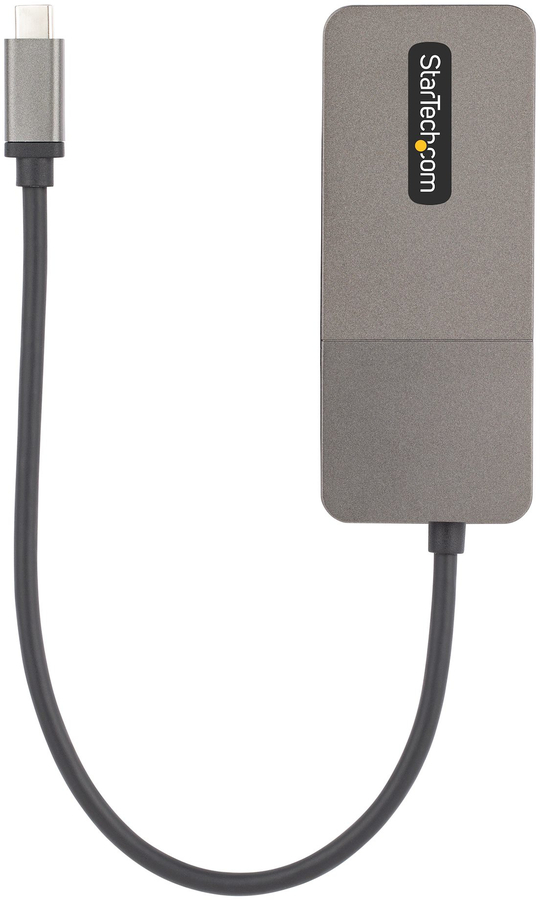

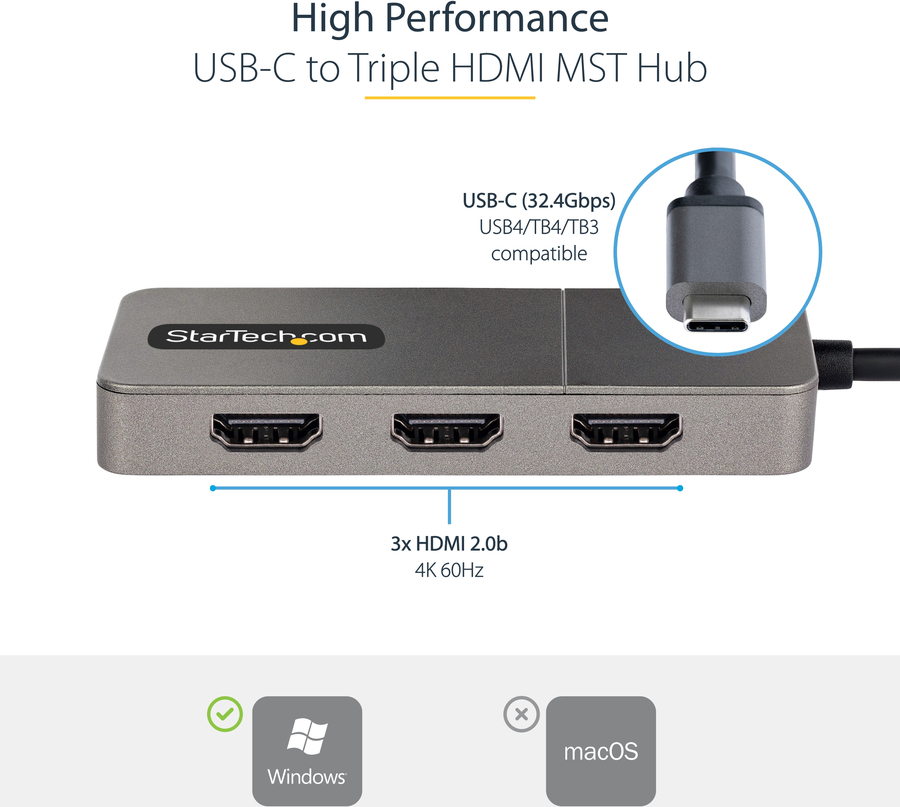

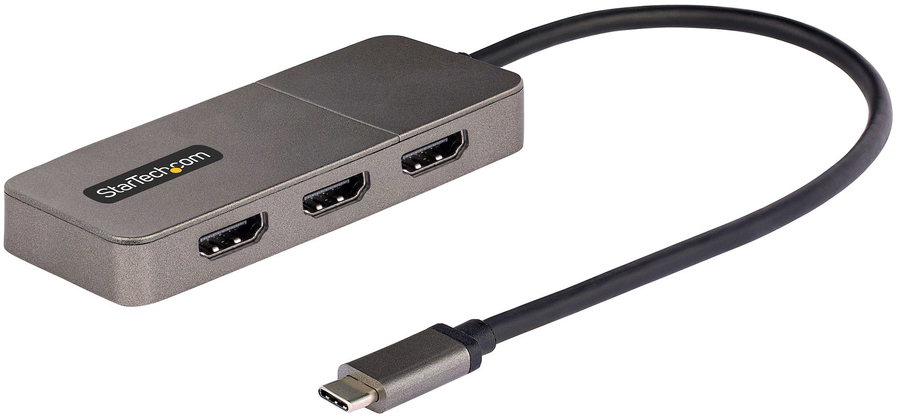

StarTech.com 3-Port USB-C to HDMI MST Hub - USB Type-C Multi Monitor Adapter for Laptop - Triple HDMI up to 4K 60Hz with DP 1.4 Alt Mode & DSC - HDR - 1ft Long Cable - Windows Only (MST14CD123HD)

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58645161 MST14CD123HD 65030887663 Active

Details

General Information

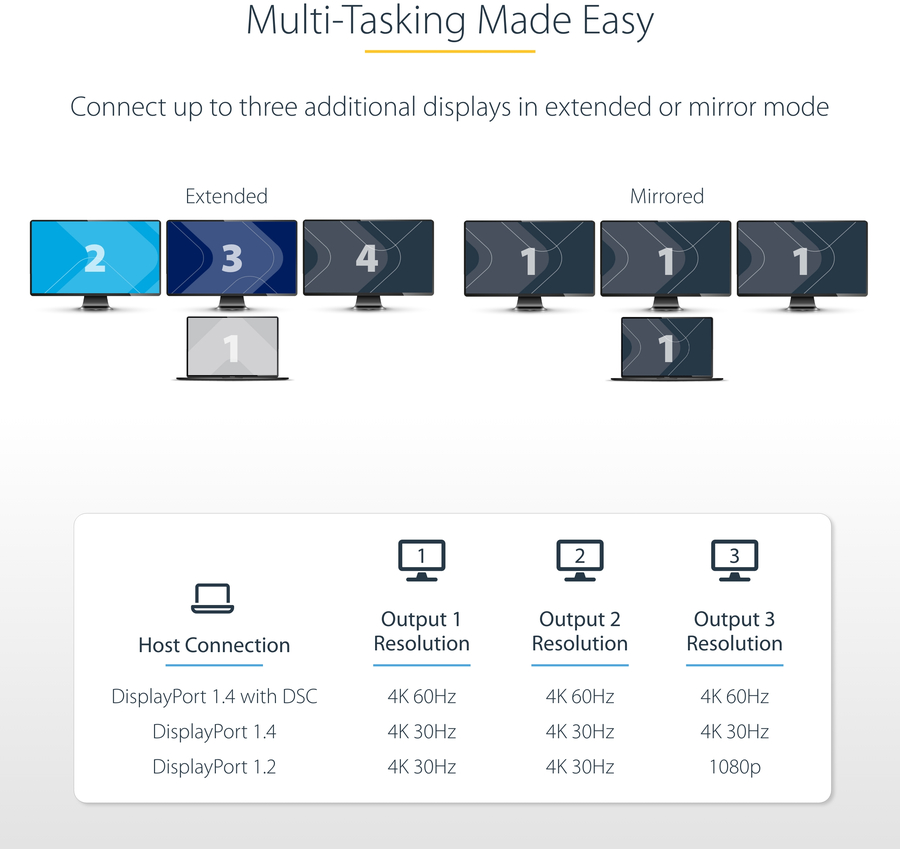

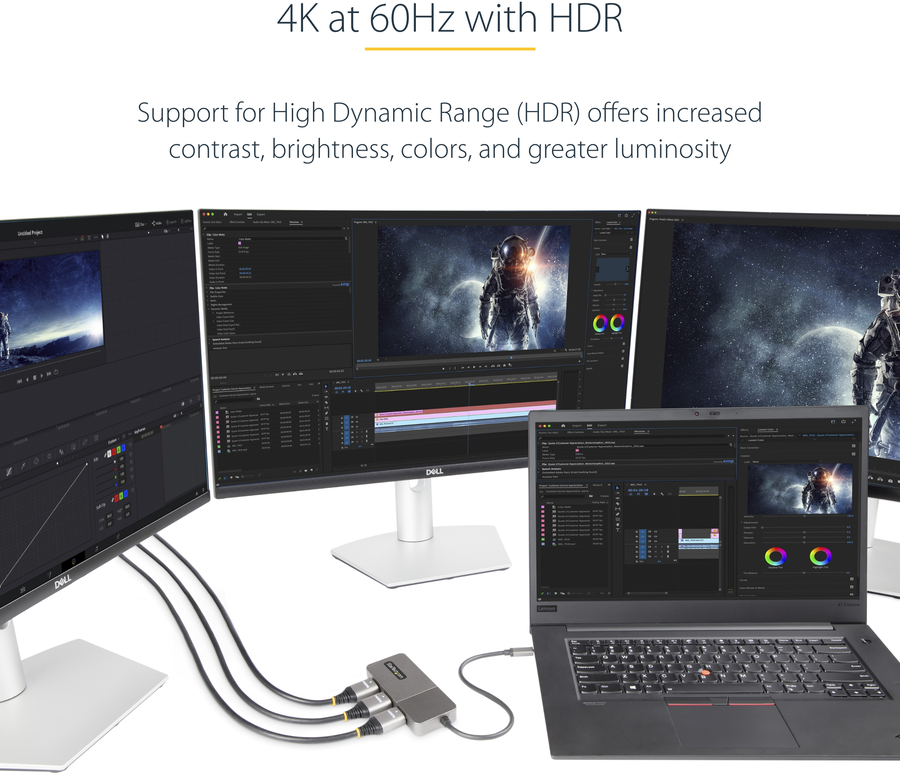

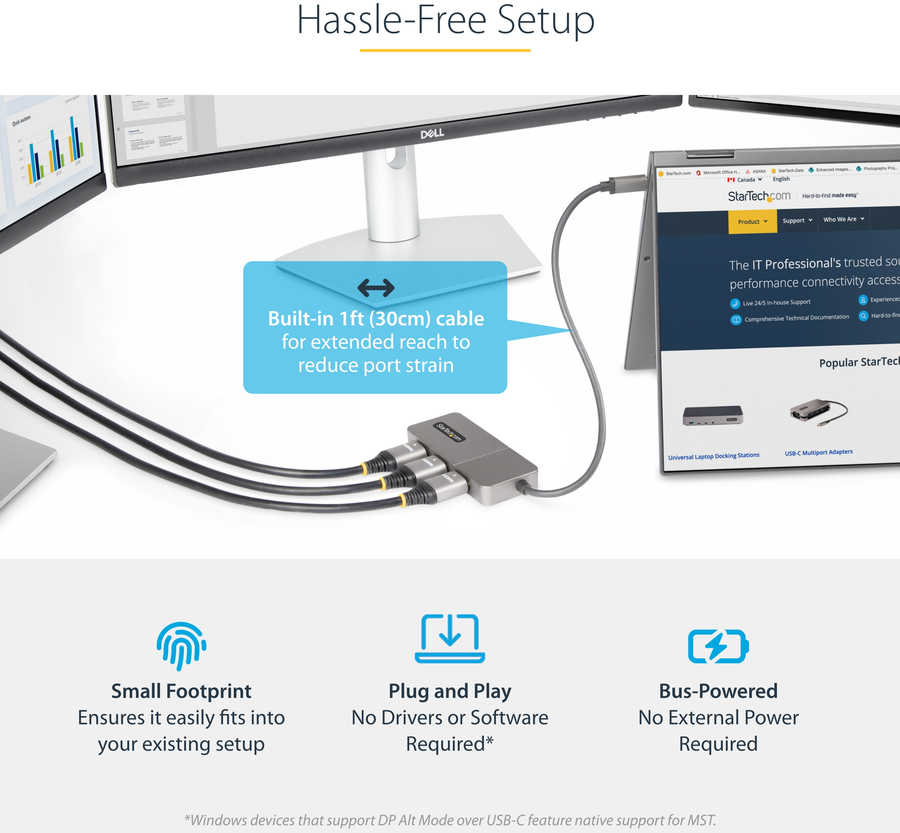

Summary Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitorsThis USB-C to HDMI MST Hub enables a connection to three HDMI monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.Multi-Tasking Made EasyConfigure up to three displays in extended or mirrored mode, using this USB-C to HDMI triple-video adapter. Connecting three independent 4K 60Hz displays creates high-performance extended-display workstations. This encourages increased multi-tasking across your organization, resulting in increased productivity.Host ConnectionMax ResolutionOutput 1Max ResolutionOutput 2Max ResolutionOutput 3Example HostProcessor/GraphicsDisplayPort 1.4 with DSC4K 60Hz4K 60Hz4K 60Hz*Some Intel 11th GenIntel 12th Gen Processors & LaterDiscrete AMD & Nvidia GPU's that support DSCDisplayPort 1.44K 30Hz4K 30Hz4K 30HzIntel 10th Gen (Ice Lake Only)Intel 11th Gen Processors & LaterDiscrete AMD and Nvidia GPU's that support DP 1.4DisplayPort 1.24K 30Hz4K 30Hz1080pIntel 8th - 10th Gen Processors & Later*Please verify the GPU capabilities and DSC for MST driver support with the OEM of the host device4K at 60Hz and HDRMulti-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into three independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.Hassle-Free SetupWindows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Performance
DVI output No
HDMI output Yes
DisplayPort output No
Number of displays supported 3

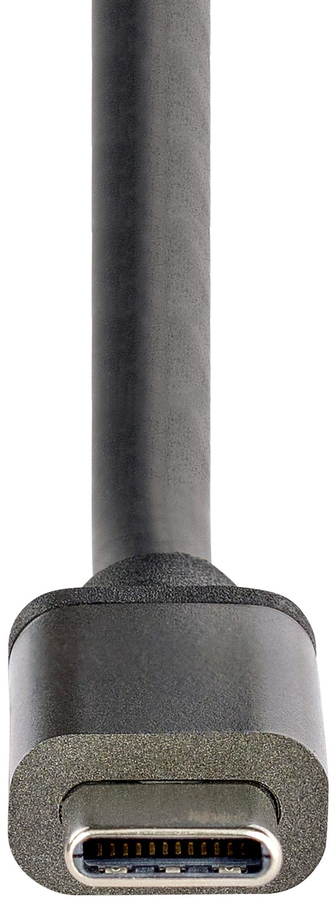

USB connector type USB Type-C
USB connector gender Male
USB connector form factor Straight
High Dynamic Range (HDR) supported Yes

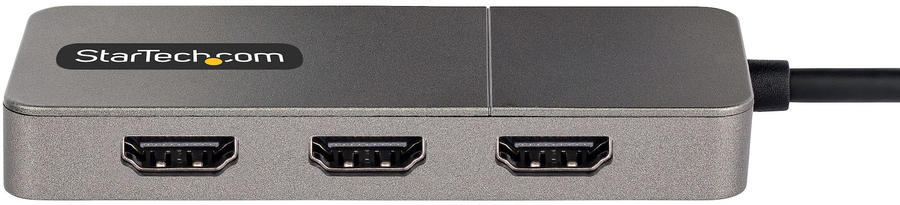

HDMI ports quantity 3
HDMI version 2.0
HDCP Yes
HDCP version 2.2
Maximum resolution 3840 x 2160 pixels
Refresh rate at maximum resolution 60 Hz
Audio output channels 2.0 channels
Chipset Synaptics VMM5310
Design
Product colour Grey
Housing material Plastic
USB cable length 0.3 m
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 85%

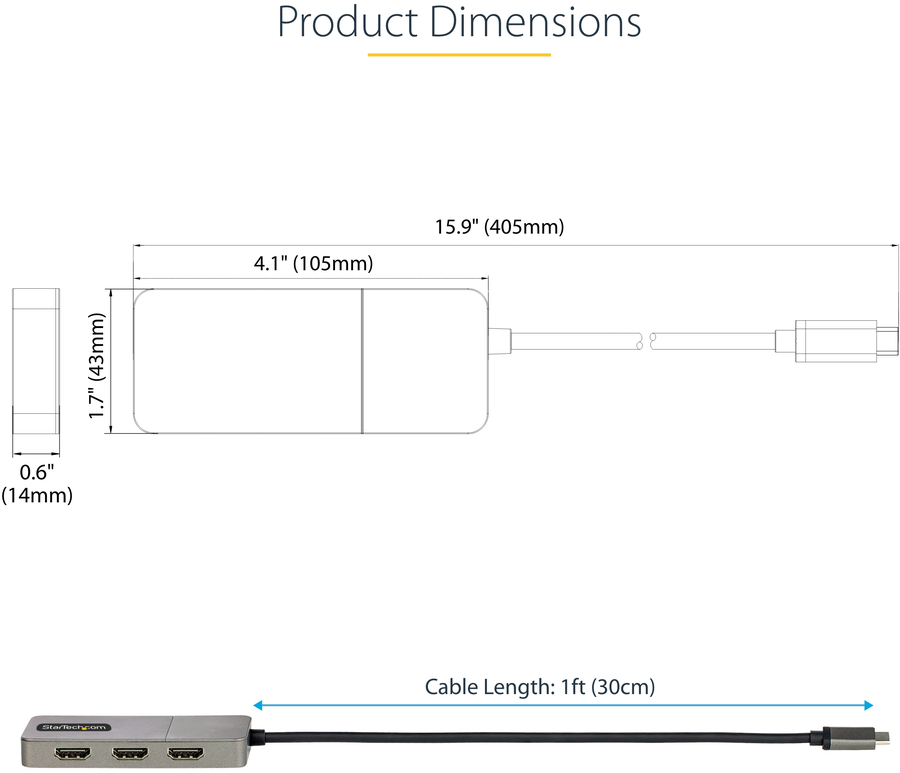

Weight & dimensions
Width 43 mm
Depth 105 mm
Height 14 mm
Weight 72 g
Package width 142 mm
Package depth 170 mm
Package height 30 mm
Package weight 124 g
Technical details
Sustainability compliance Yes
Sustainability certificates CE, RoHS
Logistics data
Products per master (outer) case 70 pc(s)
Master (outer) case width 473 mm
Master (outer) case length 331 mm
Master (outer) case height 440 mm
