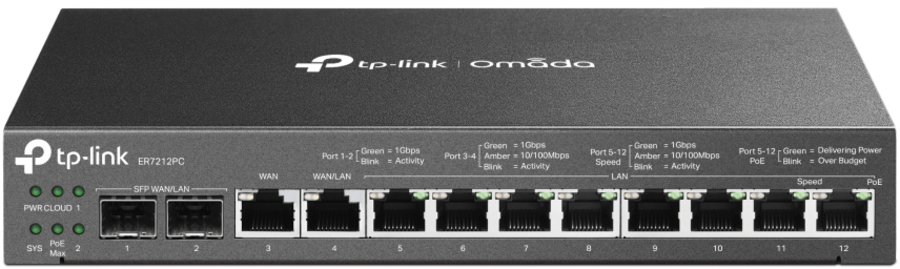

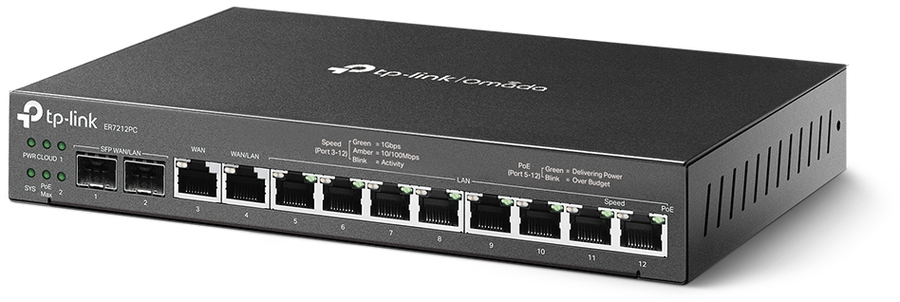

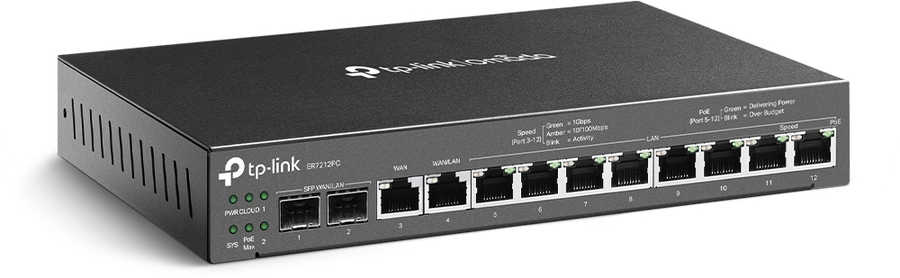

TP-Link Omada 3-in-1 Gigabit VPN Router

Home :: Networking :: Wired Networking ::


Regularly: $278.00
On Sale: $266.88    Sale Ends: April 12th, 2024

Manufacturer: TP-Link

8 Gigabit LAN, 1 Gigabit LAN/WAN, 1 Gigabit WAN, 2 Gigabit SFP WAN/LAN, 1 GB DDR3, 8Mb Nor + 4 GB EMMC, 226 × 131 × 35 mm

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58645168 ER7212PC 4897098688724 Active

Details

General Information
Summary A Future-Proof, Versatile, and Compact Router with PoE+ Ports and Controller Capability
Omada 3-in-1 Gigabit VPN Router

3-in-1 Router, More Than A Router
The 3-in-1 ER7212PC presents a one-stop solution for home and small business networking.


With a single compact box, users can replace their router, hardware controller, and PoE+ switch setup. There is no need to manually configure various network devices one by one, you can perform unified deployment through ER7212PC. All you need is one device.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
Equipped with multiple ports, ER7212PC satisfies various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Easy Installation, Quiet Heat Dissipation
A clean, well-organized, and quiet network environment is at your fingertips.

- The compact and minimalist design makes it suitable for your configuration in various spaces, whether it's the corner of office desks or the ceiling of a store.
- Fanless design offers noiseless heat dissipation to your shops or offices.

Easy Centralized Management
With built-in centralized management capability, the ER7212PC enables you to manage and update devices in bulk, with no need for individual and complex setups. Additionally, check the Omada app or web browser, ER7212PC allows you to remotely control connected devices, monitor the network, and view the network maintenance in real-time.

High-Security and High-Performance VPN
ER7212PC supports pass-through traffic and multiple VPN protocols, including OpenVPN, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.

Robust Security Features

- Powerful Firewall
Advanced firewall policies
protect your network and data.

- Convenient VLAN Support
Create virtual network segments for
enhanced security and simplified
network management.

- DoS Defense
Automatically detects and blocks
Denial of Service (DoS) attacks such
as TCP/UDP/ICMP Flooding, Ping of
Death, and other related threats.

- IP/MAC/URL/Keyword Filtering
Forcefully prevent viruses and attacks from intruders.

- IP-MAC Binding
Reserves static IP assignment for
clients to defend against ARP
attacks and spoofing.

- One-Click ALG Activation
One-Click ALG Activation for
applications such as FTP, H323, SIP,
IPSec, and PPTP.
WAN connection
Ethernet WAN Yes
DSL WAN No
SIM card slot No
3G/4G USB modem compatibility No
SFP WAN Yes
Network
Networking standards IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN data rates 10,100,1000 Mbit/s
Static route Yes
VLAN support Yes
Port forwarding Yes
Management features
Universal Plug and Play (UPnP) Yes
Reset button Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 10
Power over Ethernet (PoE) ports quantity 8
Combo SFP ports quantity 2
DC-in jack Yes
Protocols
DHCP client Yes
DHCP server Yes
Supported protocols TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Security
URL filtering Yes
Access Control List (ACL) Yes
NAT functionality Multi-Net NAT; Virtual Server; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP;
Features
Built-in processor Yes
Processor frequency 1200 MHz
Flash memory 4096 MB
Internal memory 1024 MB
Internal memory type DDR3
Certification CE, FCC, RoHS
Design
Product colour Black
Housing material Metal
LED indicators Yes
Power
Output voltage 53.5 V
Output current 2.43 A
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 226 mm
Depth 131 mm
Height 35 mm
Packaging data
AC adapter included Yes
Manual Yes
Package width 227 mm
Package depth 374 mm
Package height 73 mm
Package weight 1.92 kg

Multimedia
