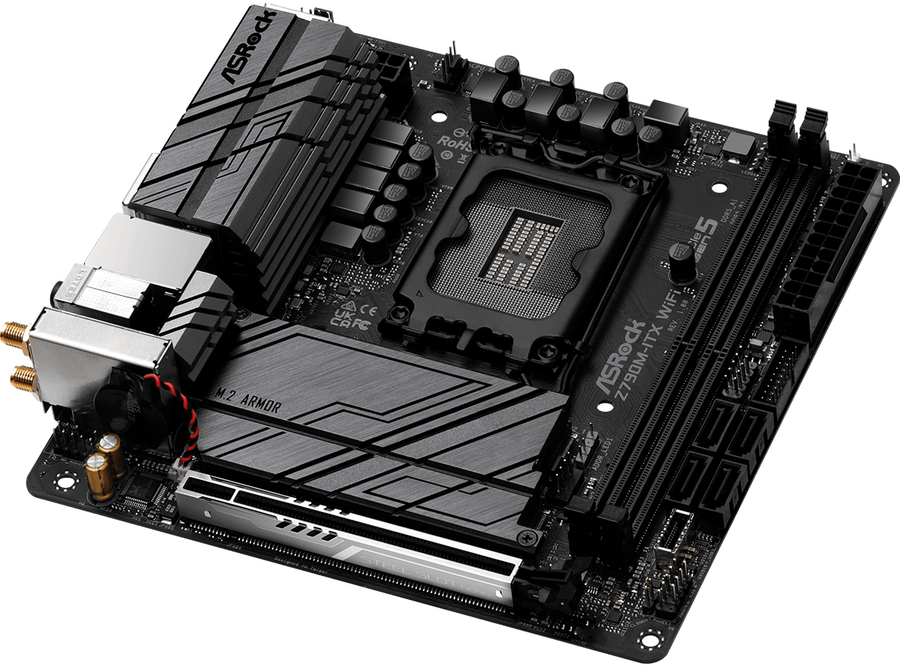

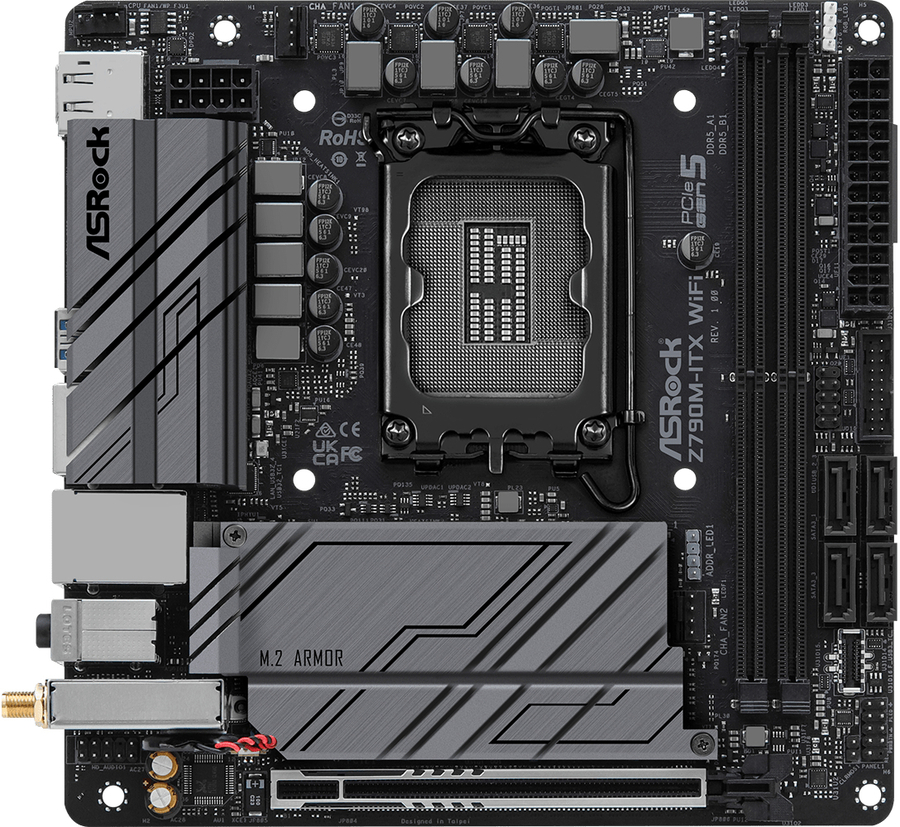

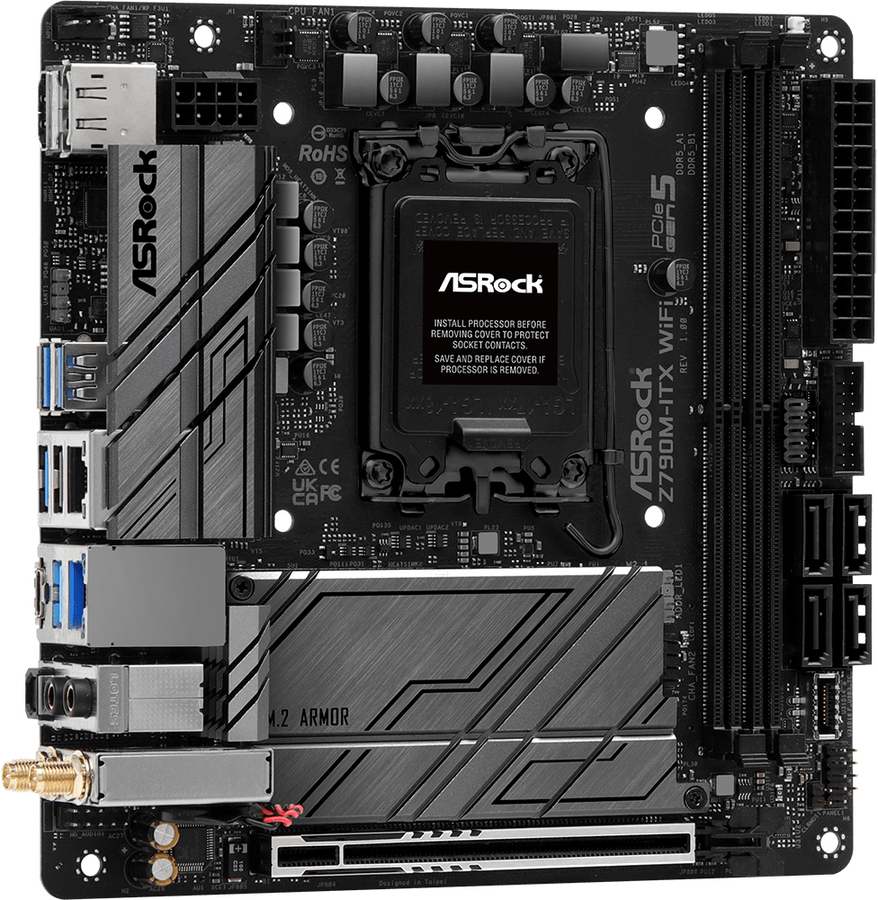

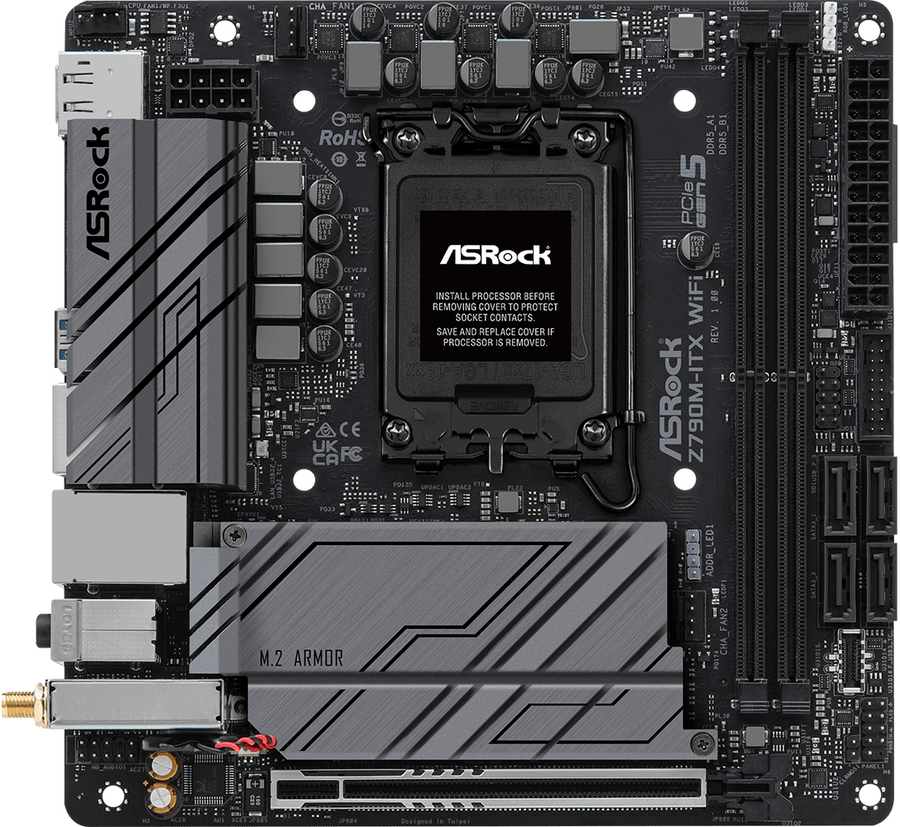

ASRock Z790M-ITX WiFi S1700 mITX Mainboard

Home :: Mainboards :: Intel Desktop MBs ::


Regularly: $320.00
On Sale: $300.80    Sale Ends: April 26th, 2024

Manufacturer: ASRock

LGA1700, Intel Z790, 2 x DDR5 DIMM, 7.1 CH HD Audio, 2.5 Gigabit LAN, IEEE 802.11a/b/g/n/ac/ax, Bluetooth, Mini-ITX

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58657662 Z790M-ITX WIFI 4710483941054 Active

Details

General Information
Summary Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

7+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

USB 3.2 Gen2
This motherboard has four onboard Type-A USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Built in eDP Signal Connector
Supports ASRock 13.3” Side Panel kit

An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum number of SMP processors 1
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 2
Maximum internal memory 64 GB
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Yes
Unbuffered memory Yes
Storage controllers
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
RAID support Yes
RAID levels 0, 1, 5, 10
Internal I/O
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes

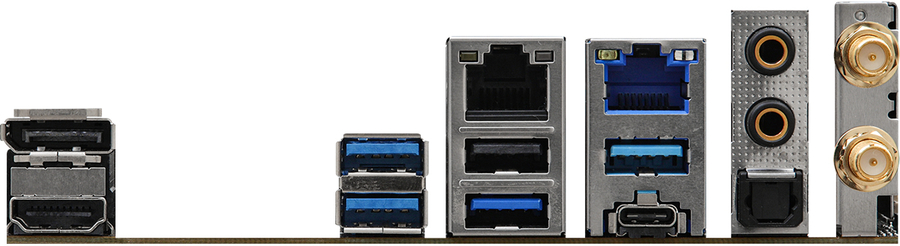

Rear panel I/O ports
USB 2.0 ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Ethernet LAN (RJ-45) ports 2
HDMI ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone outputs 1
Line-in Yes
S/PDIF out port Yes
Network
Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth Yes
Features
Component for PC
Motherboard form factor mini ITX
Motherboard chipset family Intel
Motherboard chipset Intel Z790
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 (Gen 5.x) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Weight & dimensions
Width 170 mm
Depth 170 mm
