General Information |
|
Summary |

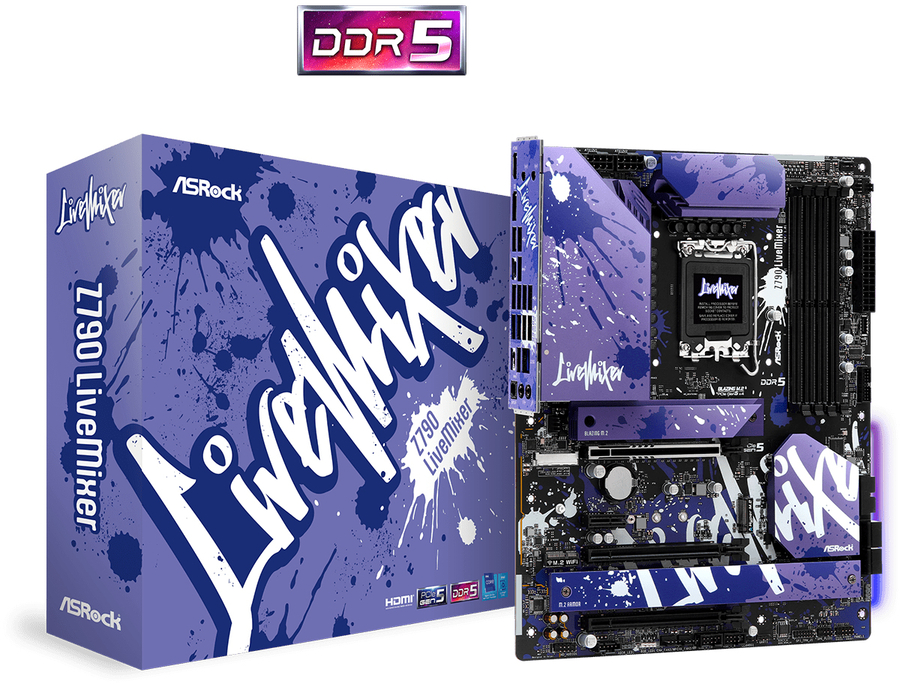

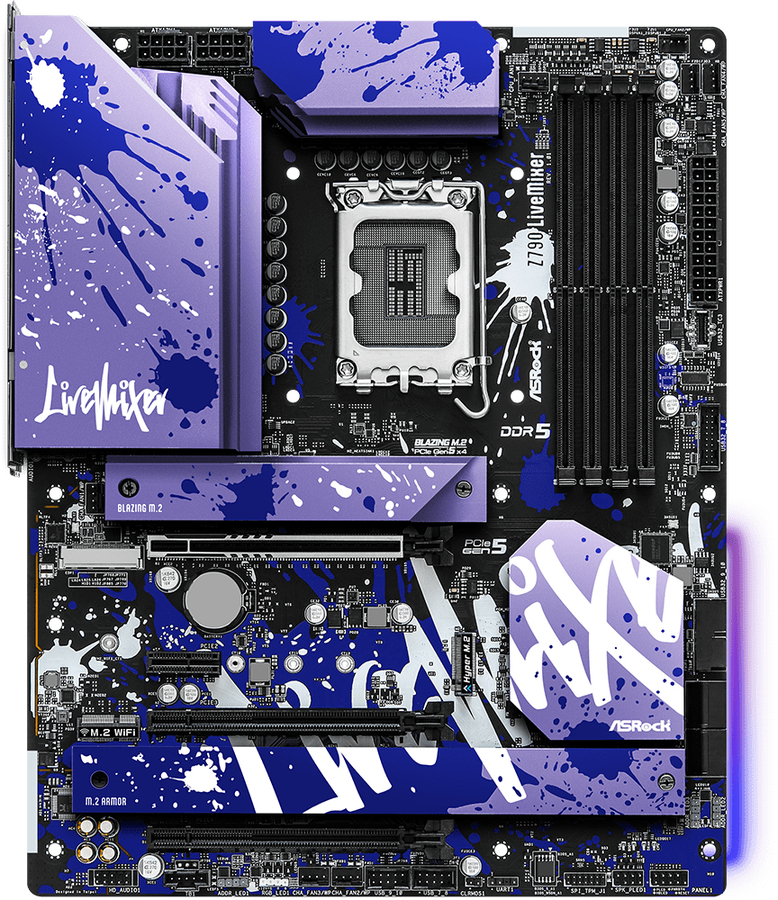

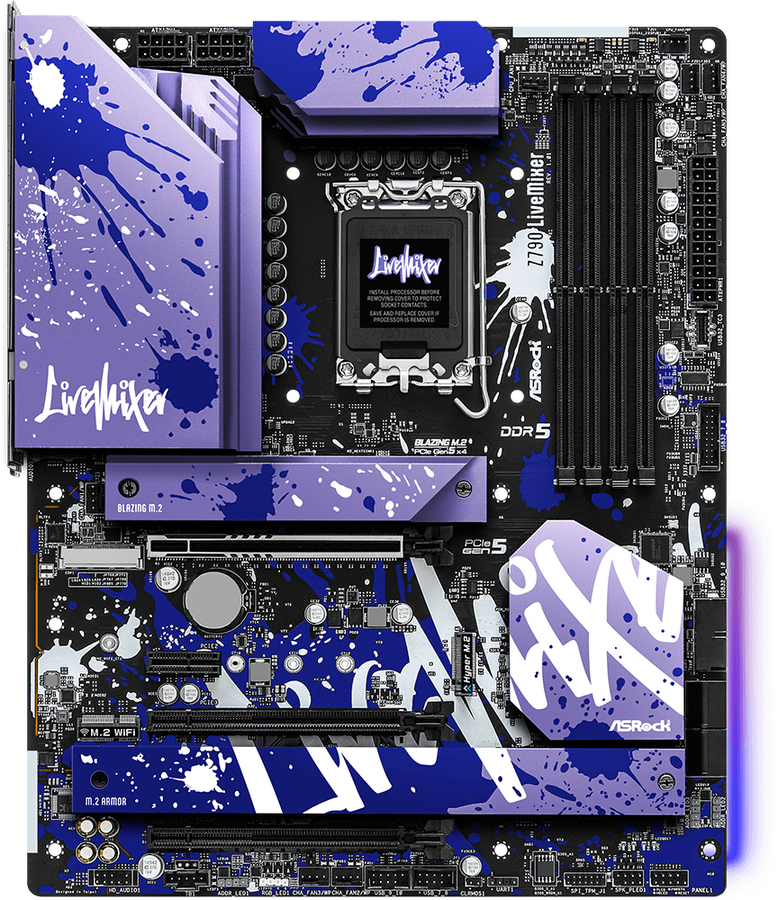

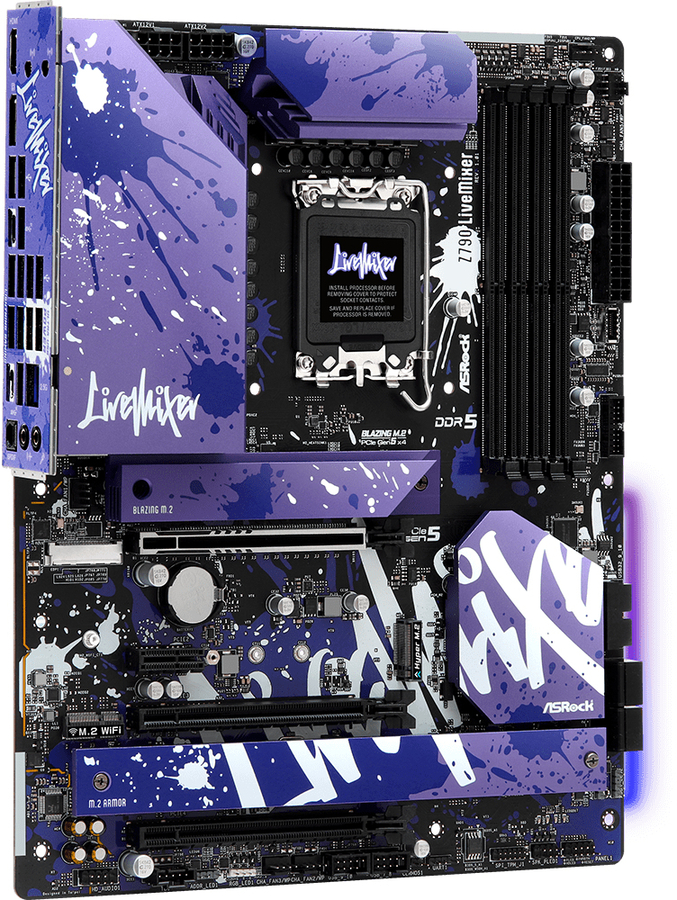

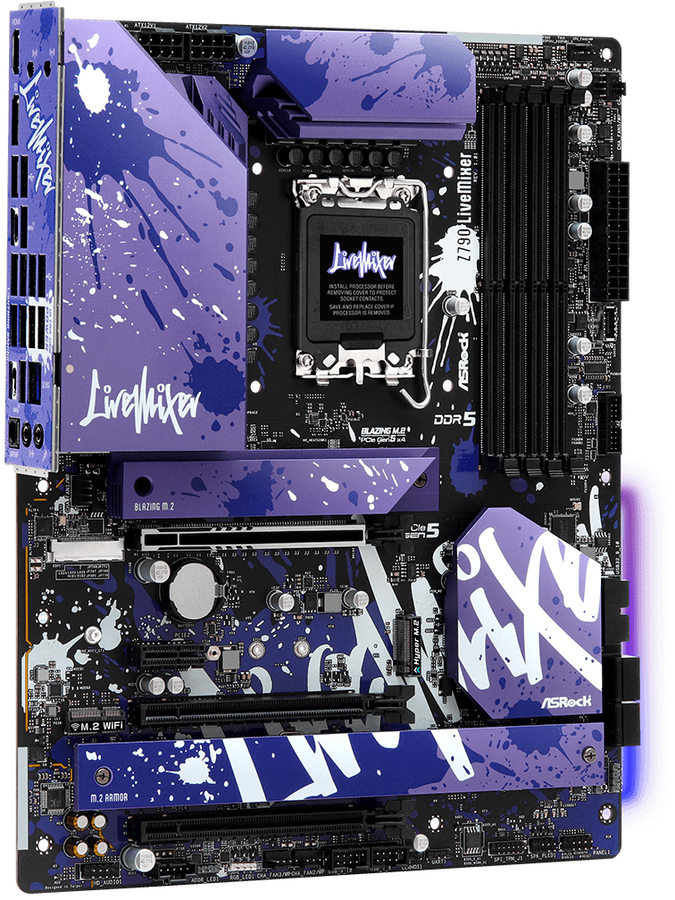

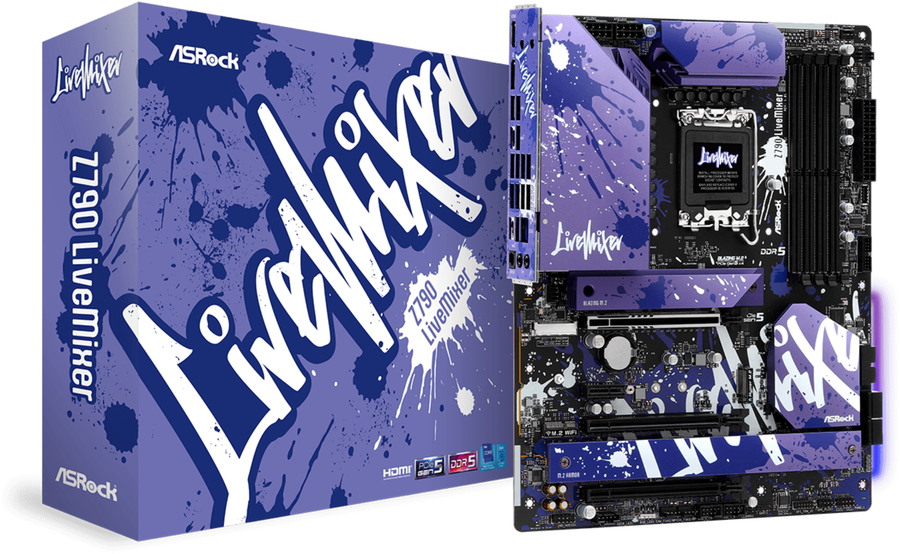

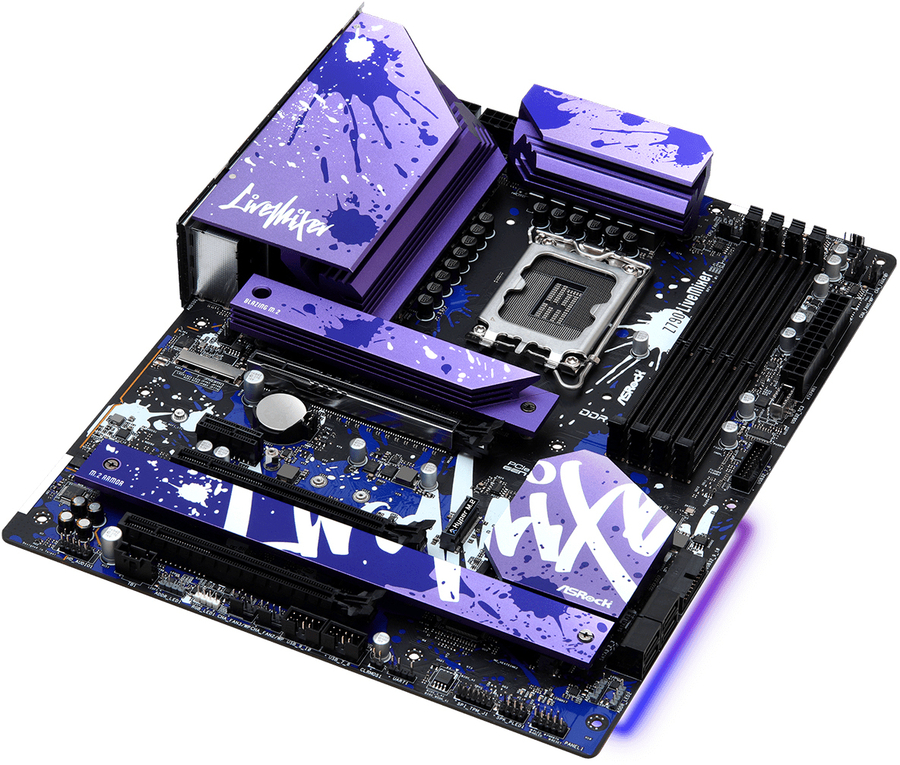

LIVE MIX LIFE MAX
LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.
Broadcasting
Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.
Content Creation
Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.
Multiple Streaming Devices
We tested many video capture devices with different interfaces in order to provide the most stable system for content creators. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1700 |
|
Compatible processor series |
Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
|
Maximum number of SMP processors |
1 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
128 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
|
Number of SATA III connectors |
4 |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
EPS power connector (8-pin) |
Yes |
|
TPM connector |
Yes |
|
Thunderbolt headers |
1 |
|
RGB LED pin header |
Yes |
|

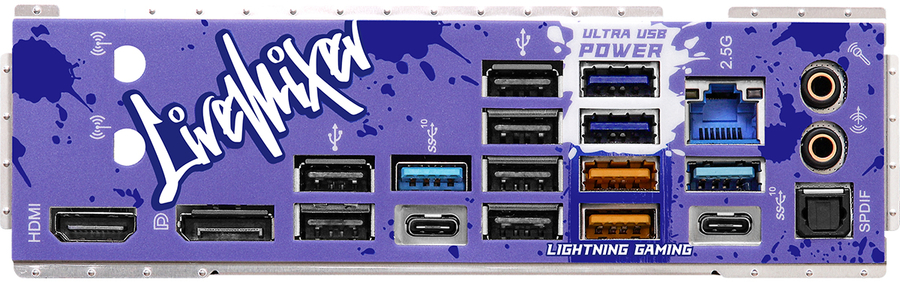

Rear panel I/O ports |
|
USB 2.0 ports quantity |
6 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI ports quantity |
1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Headphone outputs |
1 |
|
Microphone in |
Yes |
|
S/PDIF out port |
Yes |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet |
|
LAN controller |
Dragon RTL8125BG |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel Z790 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC897 |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Expansion slots |
|
PCI Express x1 (Gen 3.x) slots |
1 |
|
PCI Express x16 (Gen 4.x) slots |
2 |
|
PCI Express x16 (Gen 5.x) slots |
1 |
|
Number of M.2 (M) slots |
1 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
128 Mbit |
|
Weight & dimensions |
|
Width |
305 mm |
|
Depth |
244 mm |
