StarTech 3-Foot DB9 to 3.5mm Serial Cable for Serial Device Configuration
|
|
Regularly: $15.00
On Sale: $14.55
Sale Ends:
August 31st, 2025
Manufacturer:
StarTech
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable for Calibrating Projectors, Digital Signage, TVs via Audio Jack (9M351M-RS232-CABLE)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58789716
|
9M351M-RS232-CABLE
|
65030893565 |
Active
|
Details
|
General Information |
|
Summary |
Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control

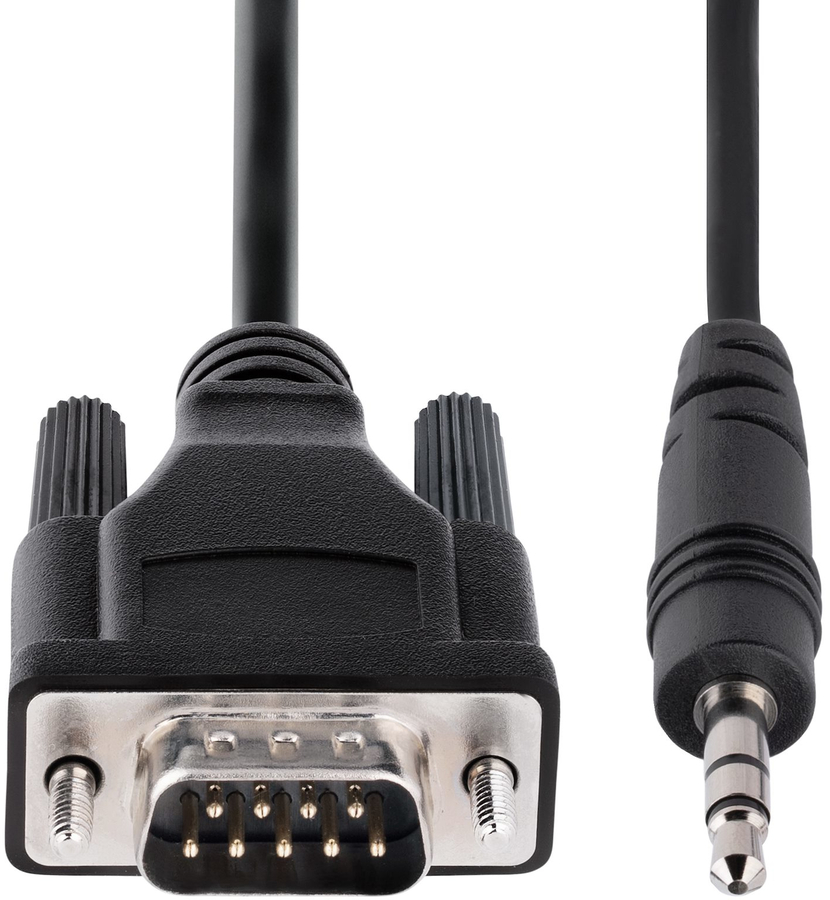

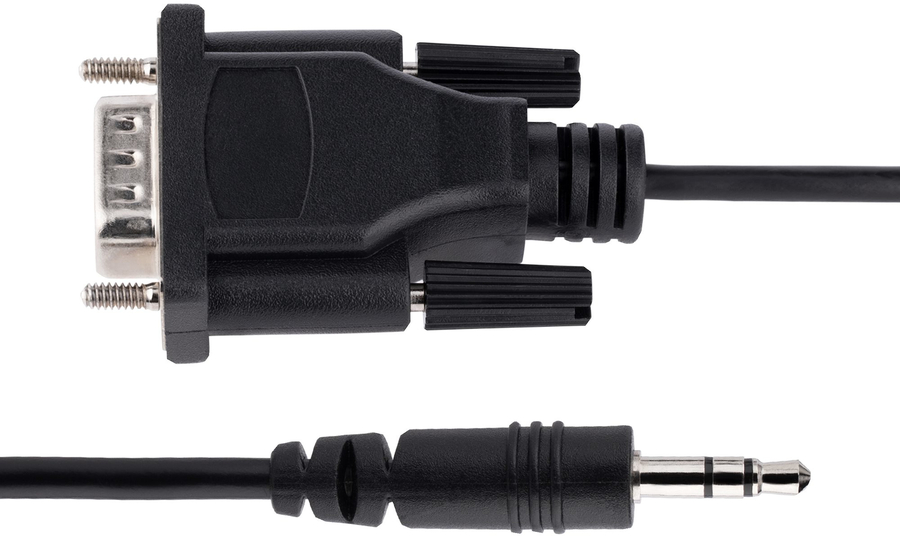

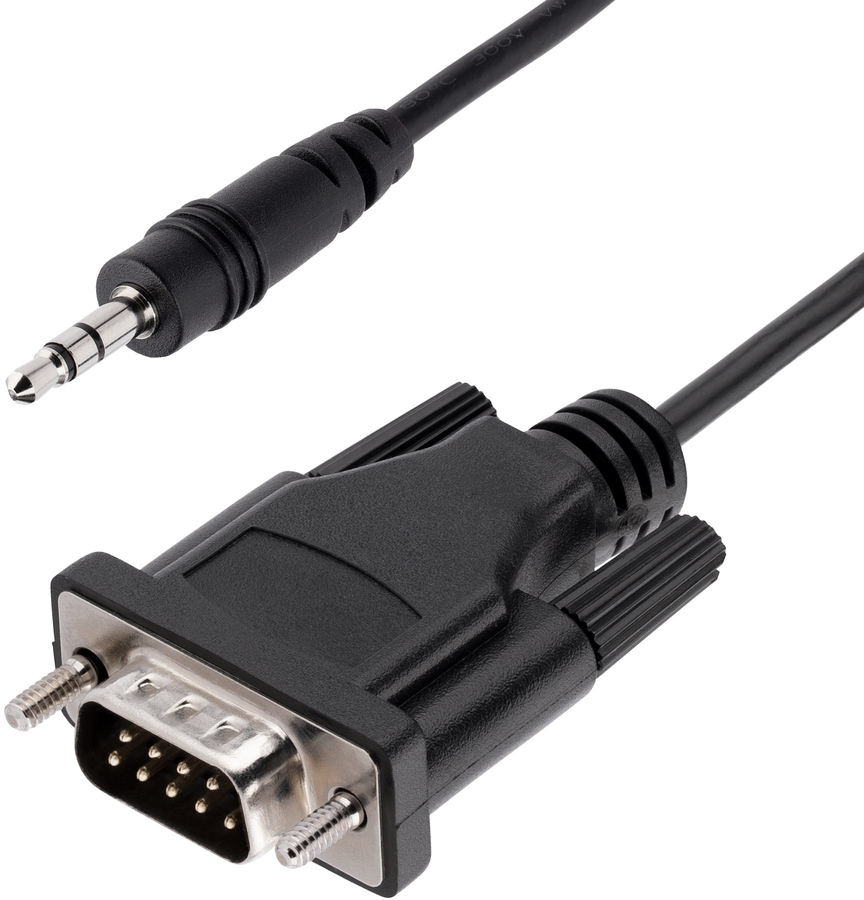

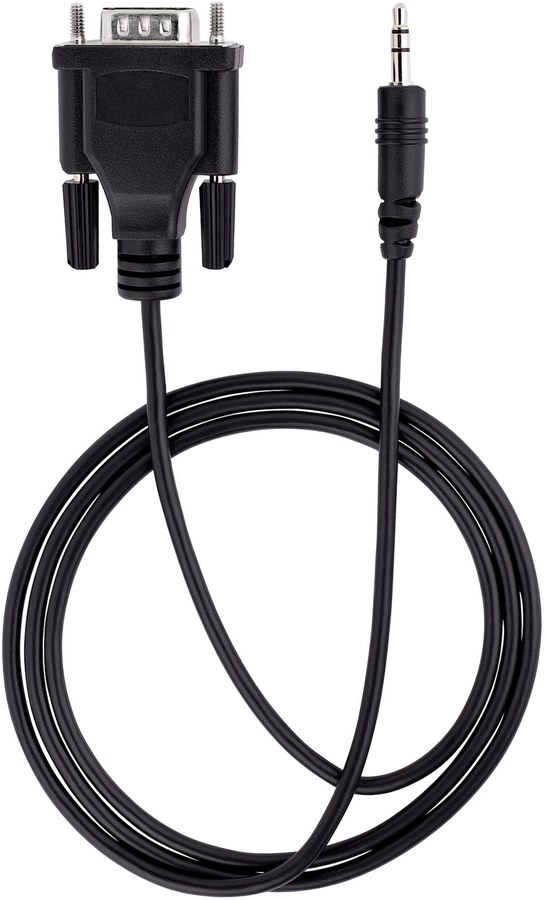

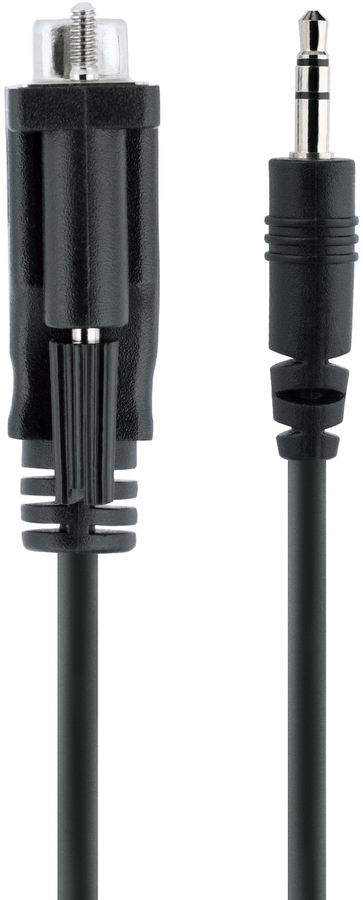

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
|
|
Ports & interfaces |
|
Connector 1 |
DB-9 |
|
Connector 2 |
3.5mm |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Cable length |
1 m |
|
Performance |
|
Product colour |
Black |
|
Cable jacket material |
Polyvinyl chloride (PVC) |
|
AWG wire size |
28 |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Relative humidity |
30 - 75% |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Packaging data |
|
Package width |
128 mm |
|
Package depth |
220 mm |
|
Package height |
10 mm |
|
Package weight |
23 g |
|
Technical details |
|
Cable diameter |
3.5 mm |
|
Logistics data |
|
Products per master (outer) case |
200 pc(s) |
|
Master (outer) case width |
388 mm |
|
Master (outer) case length |
340 mm |
|
Master (outer) case height |
310 mm |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
