TRENDnet 12-Port 10G Web Smart Switch
|
|
Price: $743.00
Manufacturer:
TRENDnet
12-Port 10G Web Smart Switch, 8 x 10G, 4 x SFP+, 10M/100M/1G/2.5G/5G/10G
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58789743
|
TEG-7124WS
|
710931140897 |
Active
|
Details
|
General Information |
|
Summary |
TRENDnet’s 10G Web Smart Switch, model TEG-7124WS, is a rack mountable IPv6-ready managed switch that offers advanced traffic management controls for SMB networks. It has an intuitive web-based interface that allows you to configure and monitor various network features. It also supports L2+ IPv4/IPv6 static routing, dynamic ARP inspection, voice VLAN, multicast and IGMP/MLD snooping, and more.

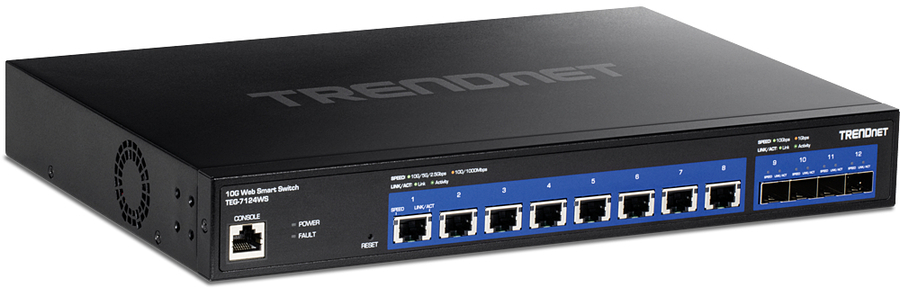

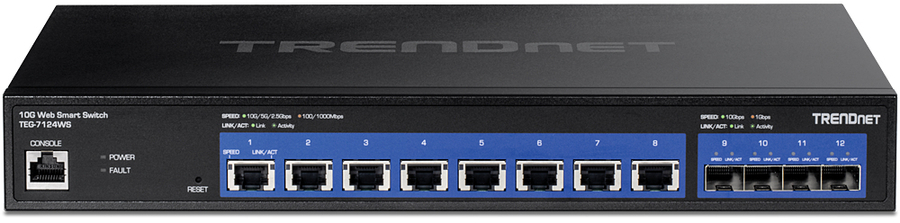

High-Speed 10GBASE-T and 10G SFP+
This switch provides eight 10GBASE-T Ethernet ports and four 10G SFP+ slots for high-speed network connections. You can use them to link up other switches or connect NAS/access servers with 10G capability.
Web Smart Management
This switch has a web-based GUI that simplifies the switch configuration and management. You can access a range of SMB management features such as access control lists, VLANs, QoS, RMON, SNMP trap, and syslog.
Integration Flexibility
This switch supports various network configurations and protocols to meet your network needs. You can use 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling to optimize your network performance and security.

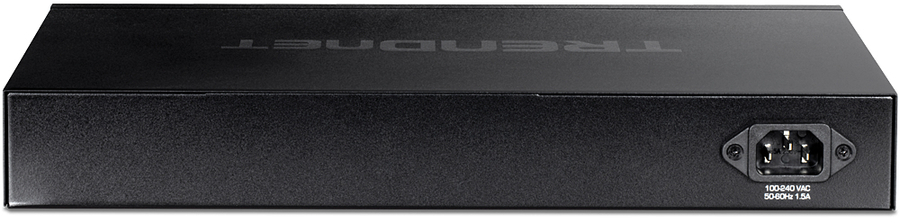

Hardware Design
This switch has a sturdy metal housing with a built-in power supply and rackmount brackets. It has a 240Gbps switching capacity and a fanless design that reduces noise and power consumption.
IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery. You can use it to future-proof your network for the next generation of IP addresses.
Traffic Management
This switch allows you to manage the traffic on your network with various features. You can use L2+ IPv4/IPv6 static routing to offload routing processes from your router and route traffic at the switch level. You can also use dynamic ARP inspection to protect your devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Moreover, you can use voice VLAN to isolate and prioritize VoIP traffic from normal data traffic.
Troubleshooting
This switch helps you troubleshoot your network issues with a cable diagnostic test and traffic statistics. You can use these tools to identify and resolve network problems quickly and efficiently.
Access Control
This switch supports layered access controls to secure your network from unauthorized access. You can use features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS to authenticate and authorize users and devices on your network.
Monitoring
This switch enables you to monitor your network status and performance with various features. You can use RMON, SNMP, SNMP Trap, and Port Mirroring to collect and analyze network data and alerts. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3/L4 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
MIB support |
RMON MIB RFC 1271, LLDP MIB IEEE 802.1ab, RFC 1213 MIB II, RFC 1643 Ethernet intf MIB, RFC 1493 bridge MIB |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
4 |
|
10G Ethernet (copper) ports quantity |
8 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
|
10G support |
Yes |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
IP routing |
Yes |
|
Link aggregation |
Yes |
|
Spanning tree protocol |
Yes |
|
Head-of-line (HOL) blocking |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
256 |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
240 Gbit/s |
|
Forwarding rate |
178.56 Mpps |
|
Static route |
Yes |
|
Number of IP interfaces |
6 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
1 |
|
Packet buffer memory |
16 MB |
|
Security |
|
Access Control List (ACL) |
Yes |
|
Loop protection |
Yes |
|
IP-MAC-Port binding |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Multicast MAC address table |
256 entries |
|
Multicast Listener Discovery (MLD) snooping |
v1, v2 |
|
Protocols |
|
Management protocols |
HTTP/HTTPS |
|
IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
Yes |
|
Form factor |
1U |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Number of fans |
1 fan(s) |
|
Performance |
|
Noise level |
39 dB |
|
Mean time between failures (MTBF) |
53900 h |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Weight & dimensions |
|
Width |
325 mm |
|
Depth |
230 mm |
|
Height |
44 mm |
|
Weight |
1.96 kg |
|
Certificates |
|
Certification |
CE, FCC, UL |
|
