General Information |
|
Summary |

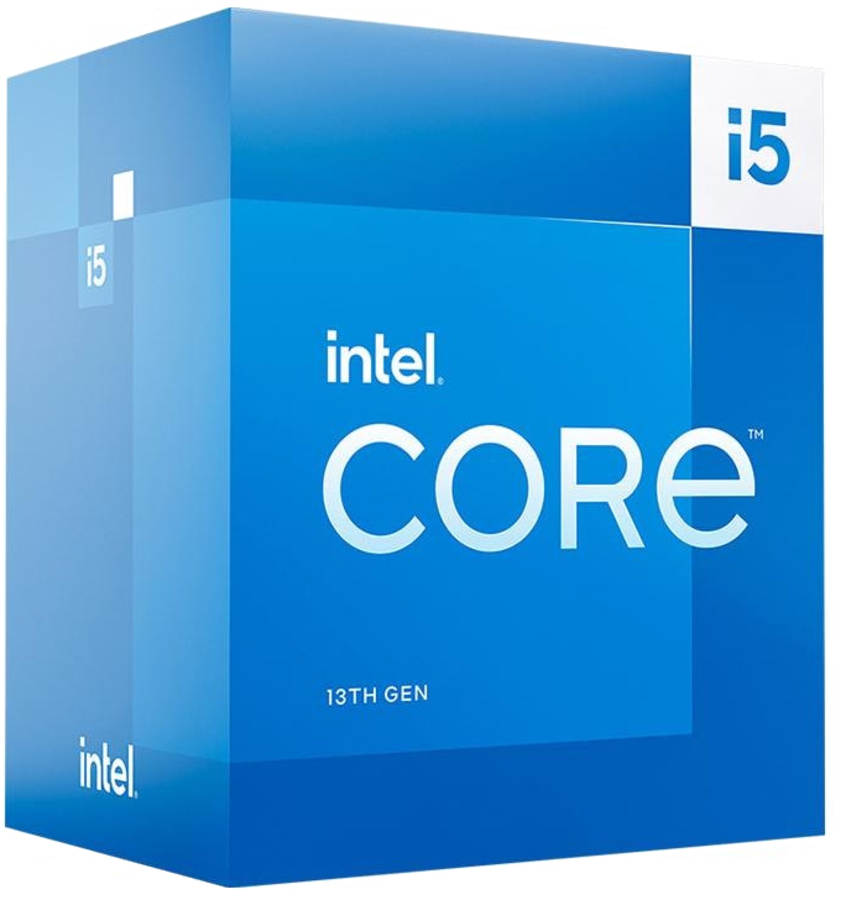

Intel Core i5-13400 Desktop Processor, 10 cores (6 P-cores + 4 E-cores), 20MB Cache, up to 4.6 GHz |
|
Processor |
|
Processor family |
Intel® Core™ i5 |
|
Processor cores |
10 |
|
Processor socket |
LGA 1700 |
|
Box |
Yes |
|
Processor manufacturer |
Intel |
|
Processor model |
i5-13400 |
|
Processor operating modes |
64-bit |
|
Processor generation |
13th gen Intel® Core™ i5 |
|
Processor threads |
16 |
|
Performance cores |
6 |
|
Efficient cores |
4 |
|
Processor boost frequency |
4.6 GHz |
|
Performance-core boost frequency |
4.6 GHz |
|
Performance-core base frequency |
2.5 GHz |
|
Efficient-core boost frequency |
3.3 GHz |
|
Efficient-core base frequency |
1.8 GHz |
|
Processor cache |
20 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
65 W |
|
Maximum turbo power |
154 W |
|
Maximum number of DMI lanes |
8 |
|
Processor codename |
Raptor Lake |
|
Processor ARK ID |
230495 |
|
Memory |
|
Memory channels |
Dual-channel |
|
Maximum internal memory supported by processor |
128 GB |
|
Memory types supported by processor |
DDR4-SDRAM, DDR5-SDRAM |
|
Memory bandwidth (max) |
76.8 GB/s |
|
Graphics |
|
On-board graphics card |
Yes |
|
Discrete graphics card |
No |
|
On-board graphics card model |
Intel UHD Graphics 730 |
|
Discrete graphics card model |
Not available |
|
On-board graphics card outputs supported |
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
|
On-board graphics card base frequency |
300 MHz |
|
On-board graphics card dynamic frequency (max) |
1550 MHz |
|
Number of displays supported (on-board graphics) |
4 |
|
On-board graphics card DirectX version |
12.0 |
|
On-board graphics card OpenGL version |
4.5 |
|
On-board graphics card maximum resolution (DisplayPort) |
7680 x 4320 pixels |
|
On-board graphics card maximum resolution (eDP - Integrated Flat Panel) |
5120 x 3200 pixels |
|
On-board graphics card maximum resolution (HDMI) |
4096 x 2160 pixels |
|
On-board graphics card refresh rate at maximum resolution (DisplayPort) |
60 Hz |
|
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) |
120 Hz |
|
On-board graphics card refresh rate at maximum resolution (HDMI) |
60 Hz |
|
On-board graphics card ID |
0x4682/0xA782 |
|
Number of execution units |
24 |
|
Multi-Format Codec Engines |
1 |
|
Features |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Market segment |
Desktop |
|
Use conditions |
PC/Client/Tablet |
|
Maximum number of PCI Express lanes |
20 |
|
PCI Express slots version |
4.0, 5.0 |
|
PCI Express configurations |
1x16+1x4, 2x8+1x4 |
|
Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
|
Scalability |
1S |
|
CPU configuration (max) |
1 |
|
Embedded options available |
Yes |
|
Direct Media Interface (DMI) Revision |
4.0 |
|
Export Control Classification Number (ECCN) |
5A992C |
|
Commodity Classification Automated Tracking System (CCATS) |
740.17B1 |
|
Processor special features |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Intel® Quick Sync Video Technology |
Yes |
|
Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Intel® Speed Shift Technology |
Yes |
|
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 |
Yes |
|
Intel® Control-flow Enforcement Technology (CET) |
Yes |
|
Intel® Thread Director |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel 64 |
Yes |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel Turbo Boost Max Technology 3.0 |
No |
|
Intel® Boot Guard |
Yes |
|
Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
|
Intel® Volume Management Device (VMD) |
Yes |
|
Mode-based Execute Control (MBE) |
Yes |
|
Intel® Standard Manageability (ISM) |
Yes |
|
Operational conditions |
|
Tjunction |
100 °C |
|
Technical details |
|
OpenCL version |
3.0 |
|
Launch date |
Q1'23 |
|
Logistics data |
|
Harmonized System (HS) code |
8542310001 |
|
Weight & dimensions |
|
Processor package size |
45 x 37.5 mm |
|
Other features |
|
L2 cache |
9728 KB |
|
Graphics output |
eDP 1.4b, DP 1.4a, HDMI 2.1 |
