General Information |
|
Summary |
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

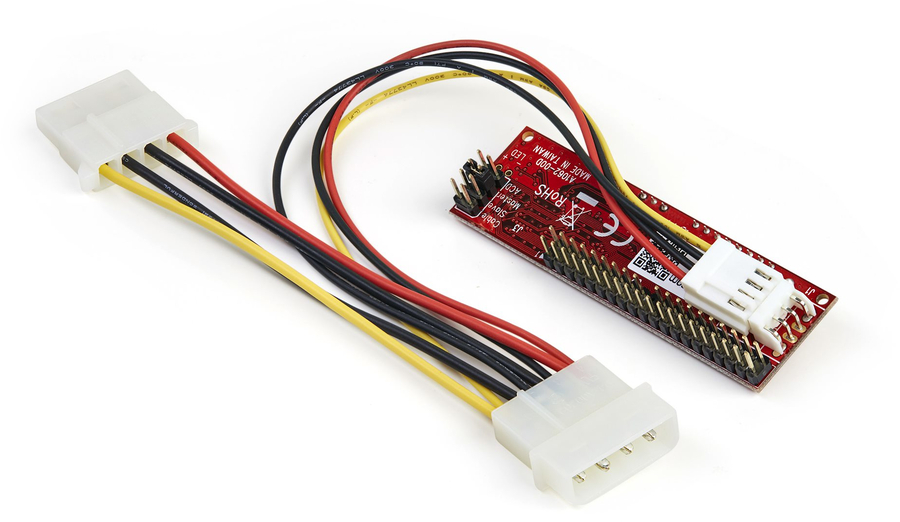

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
|
|
Ports & interfaces |
|
Host interface |
IDE |
|
Output interface |
SATA |
|
Connector(s) |
1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
|
Design |
|
Internal |
Yes |
|
Product colour |
Red |
|
Certification |
FCC, CE, TAA, REACH |
|
Features |
|
Chipset |

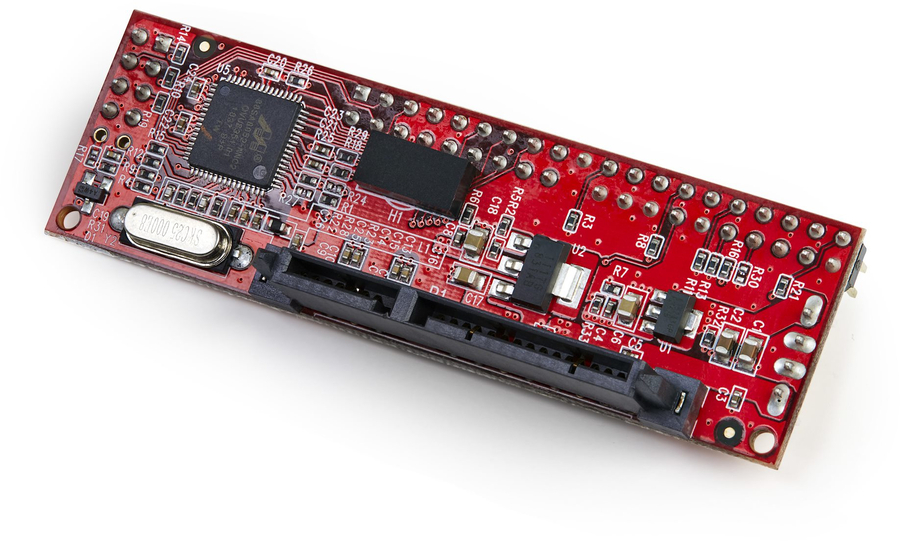

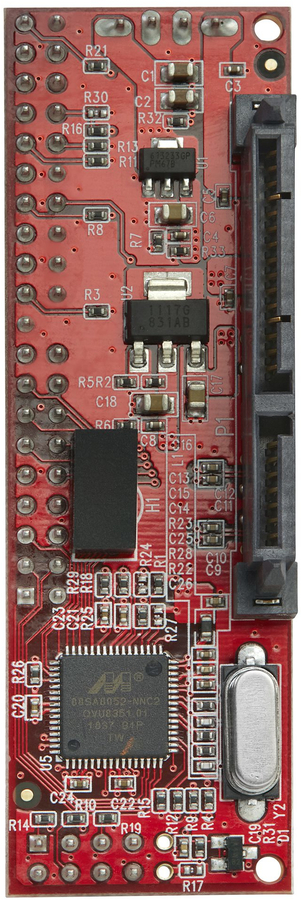

Marvell - 88SA8052 |
|
Data transfer rate (max) |
0.133 Gbit/s |
|
Logical block addressing (LBA) support |
48 bit |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 50 °C |
|
Storage temperature (T-T) |
-25 - 80 °C |
|
Operating relative humidity (H-H) |
15 - 90% |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Width |
20 mm |
|
Depth |
75.5 mm |
|
Height |
23 mm |
|
Weight |
29 g |
|
Packaging data |
|

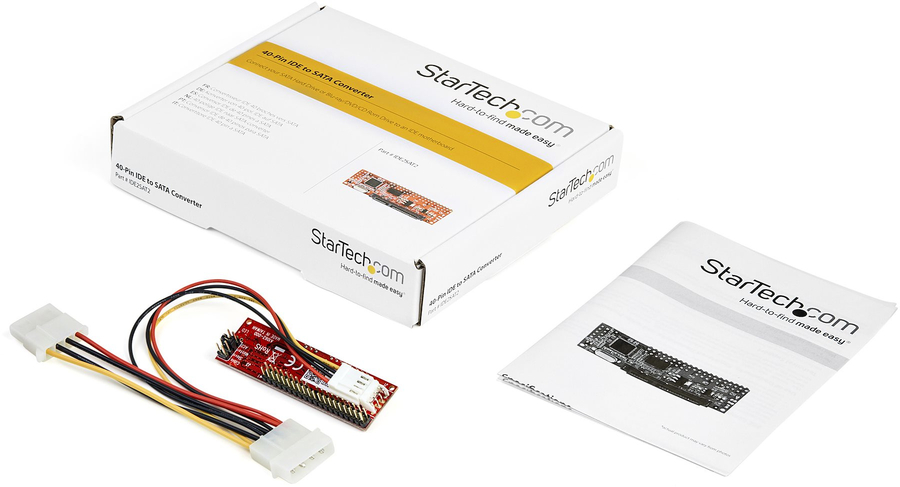

Manual |
Yes |
|
Package width |
175 mm |
|
Package depth |
145 mm |
|
Package height |
33 mm |
|
Package weight |
89 g |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Products per master (outer) case |
60 pc(s) |
|
Master (outer) case width |
380 mm |
|
Master (outer) case length |
496 mm |
|
Master (outer) case height |
321 mm |
|
Other features |
|
Material |
Plastic, Steel |
