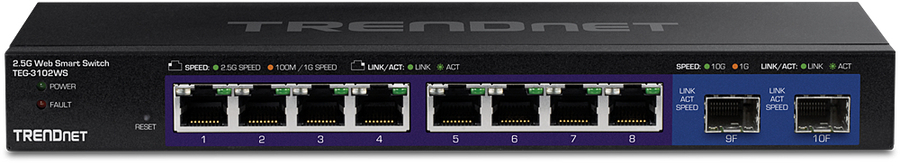

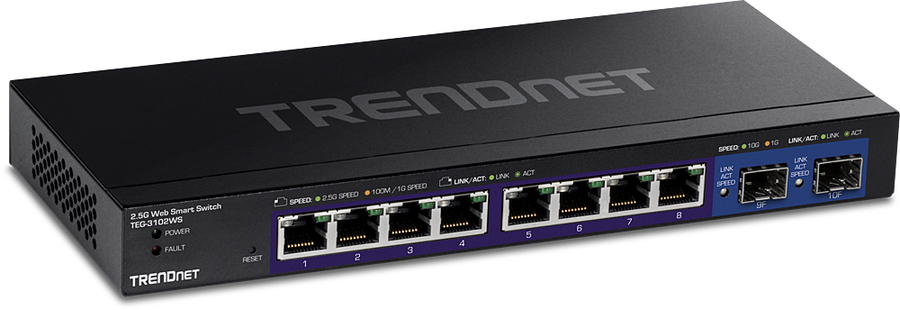

TRENDnet 10-Port Multi-Gig Web Smart Switch
|
|
Price: $314.00
Manufacturer:
TRENDnet
10-Port Multi-Gig Web Smart Switch, 8 x 2.5GBASE-T, 2 x 10G SFP+, 240 x 104 x 27mm,
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
58833402
|
TEG-3102WS
|
- |
Active
|
Details
|
General Information |
|
Summary |
TRENDnet’s Multi-Gigabit Web Smart Switch series are rack-mountable IPv6-ready managed switches that offer advanced L2+ features and enhanced traffic management controls for SMB networks. They have an intuitive web-based interface that allows you to configure and monitor various network features. They also support LACP, VLANs, QoS, port bandwidth controls, SNMP monitoring, voice VLAN, and more.
2.5G Ports
These switches have eight 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds of up to 2.5Gbps over your existing Cat5e or better cabling. You can use them to connect devices that support higher gigabit speeds.
10G SFP+ Slots
These switches have two 10G SFP+ slots for high-speed network connections. You can use them to link up other switches or connect NAS/access servers with 10G capability.
Web Smart Management
These switches have a web-based GUI that simplifies the switch configuration and management. You can access a range of SMB management features such as access control lists, VLANs, QoS, RMON, SNMP trap, and syslog.
Integration Flexibility
These switches support various network configurations and protocols to meet your network needs. You can use 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling to optimize your network performance and security.
Traffic Management
These switches allow you to manage the traffic on your network with various features. You can use voice VLAN to isolate and prioritize VoIP traffic from normal data traffic. You can also use jumbo frames to send larger packets for increased performance.
Access Control
These switches support layered access controls to secure your network from unauthorized access. You can use features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS to authenticate and authorize users and devices on your network.
Monitoring
These switches enable you to monitor your network status and performance with various features. You can use RMON, SNMP, SNMP Trap, and Port Mirroring to collect and analyze network data and alerts.
Troubleshooting
These switches help you troubleshoot your network issues with a cable diagnostic test and traffic statistics. You can use these tools to identify and resolve network problems quickly and efficiently.
Hardware Design
These switches have a sturdy metal housing with a fanless design that reduces noise and power consumption. They have LED indicators that convey port status.
IPv6 Ready
These switches support IPv6 configuration and IPv6 neighbor discovery. You can use them to future-proof your network for the next generation of IP addresses. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3/L4 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
MIB support |
RMON MIB RFC 1271, LLDP MIB IEEE 802.1ab, RFC 1213 MIB II, RFC 1643 Ethernet intf MIB, RFC 1493 bridge MIB |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
2 |
|
2.5G Ethernet (copper) ports quantity |
8 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
|
10G support |
Yes |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
IP routing |
Yes |
|
Link aggregation |
Yes |
|
Spanning tree protocol |
Yes |
|
Head-of-line (HOL) blocking |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
256 |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
80 Gbit/s |
|
Forwarding rate |
59.52 Mpps |
|
Static route |
Yes |
|
Number of IP interfaces |
6 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
1 |
|
Packet buffer memory |
1.5 MB |
|
Security |
|
Access Control List (ACL) |
Yes |
|
Loop protection |
Yes |
|
IP-MAC-Port binding |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Multicast MAC address table |
256 entries |
|
Multicast Listener Discovery (MLD) snooping |
v1, v2 |
|
Protocols |
|
Management protocols |
HTTP/HTTPS |
|
IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Performance |
|
Fanless |
Yes |
|
Mean time between failures (MTBF) |
893944 h |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
240 mm |
|
Depth |
104 mm |
|
Height |
27 mm |
|
Weight |
664 g |
|
Packaging content |
|
Cables included |
AC |
|
Quick start guide |
Yes |
|
Rack mount kit |
Yes |
|
Certificates |
|
Certification |
CE, FCC |
|
