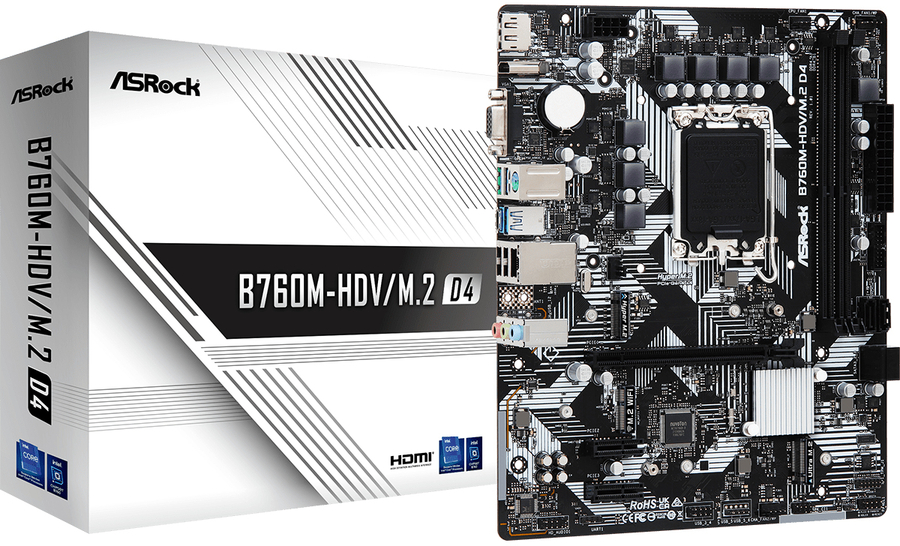

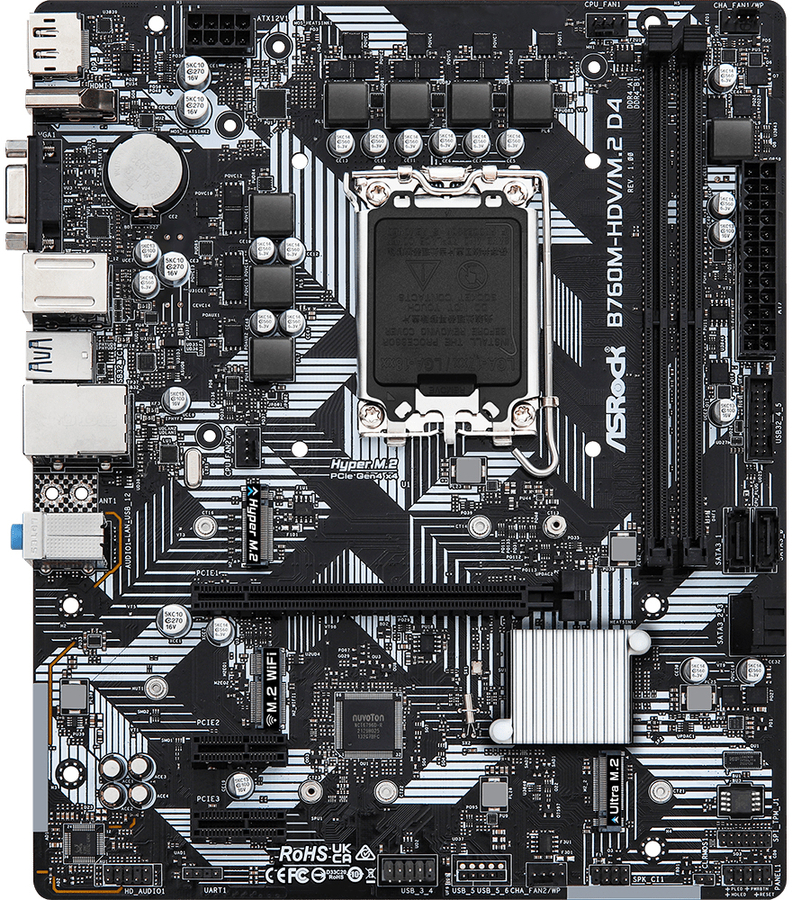

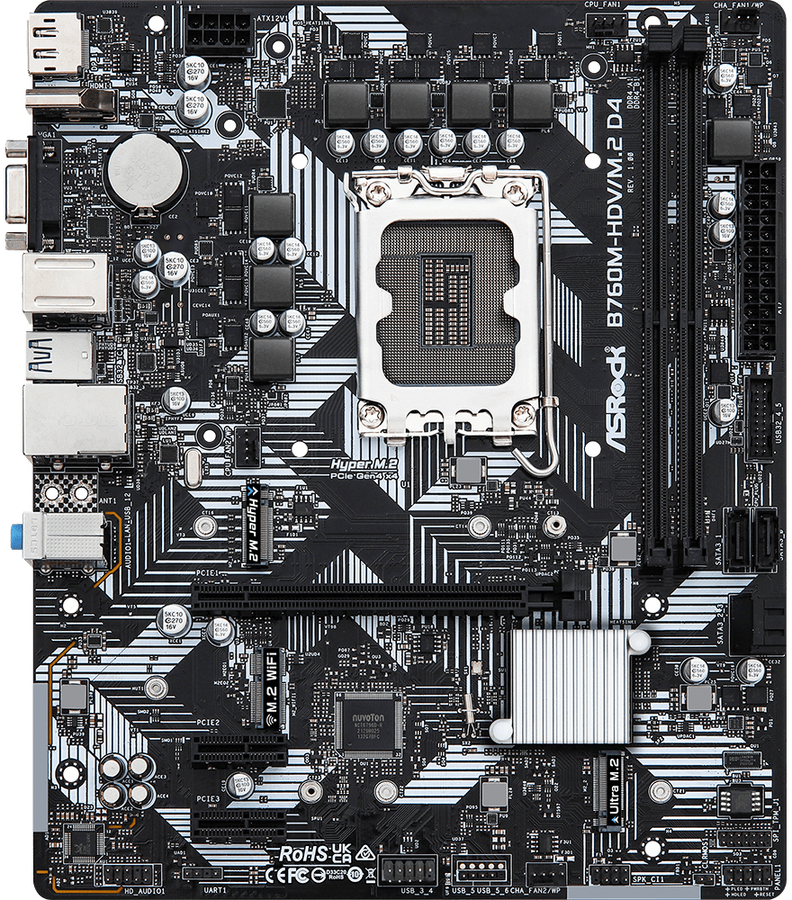

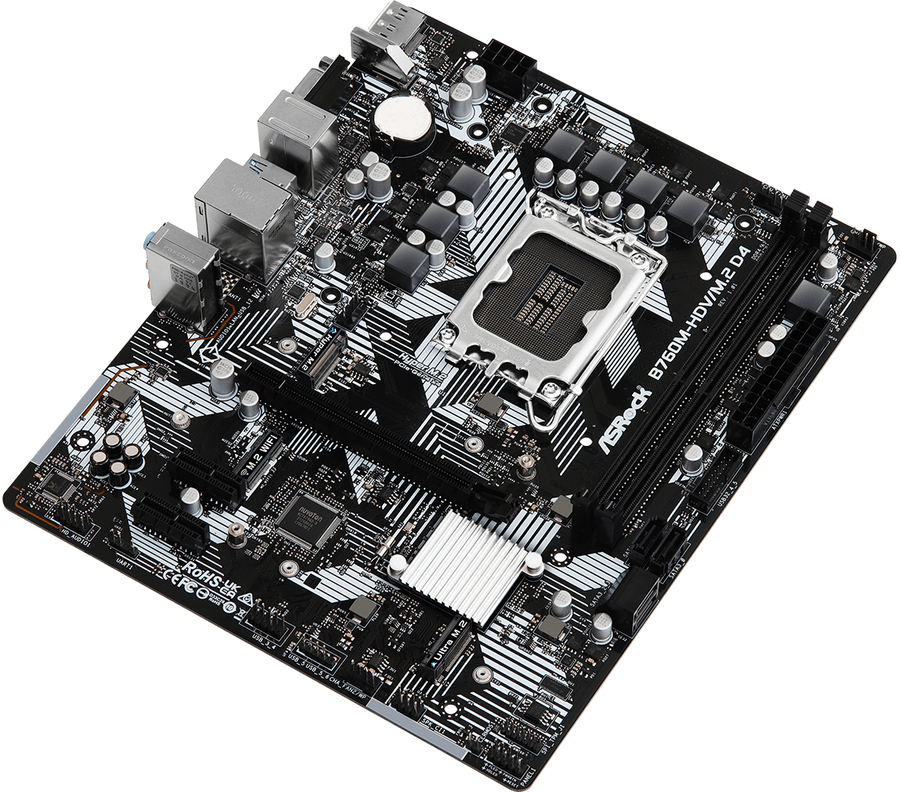

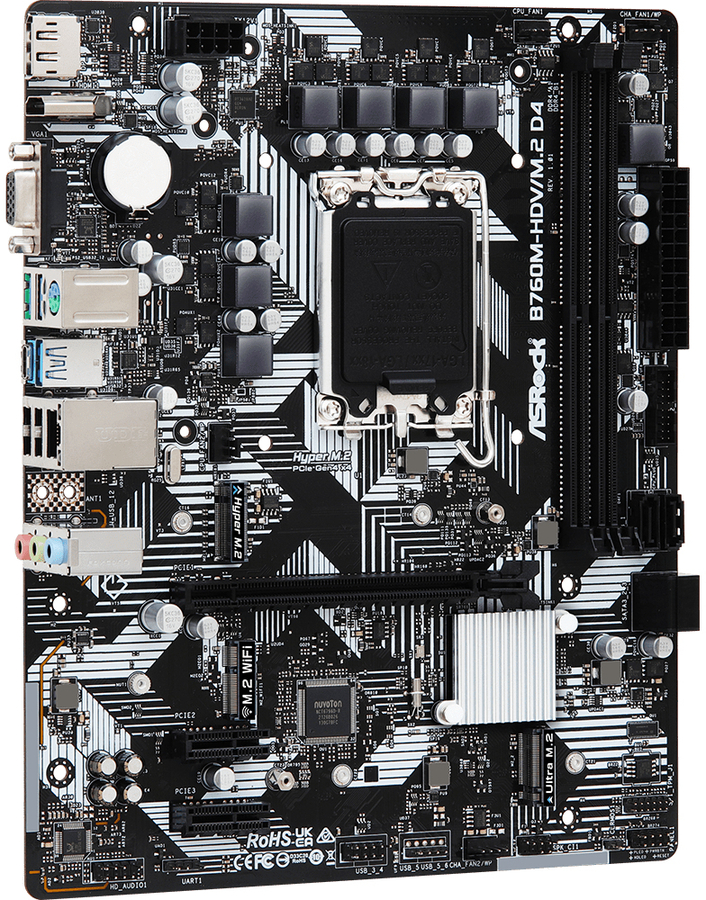

ASRock B760M-HDV/M.2 D4 S1700 mATX Mainboard

Home :: Mainboards :: Intel Desktop MBs ::


Regularly: $129.00
On Sale: $120.96    Sale Ends: May 26th, 2024

Manufacturer: ASRock

Micro ATX, Intel B760, 2 x DDR4 DIMM, 7.1 CH HD Audio, Gigabit LAN

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
58852897 B760M-HDV/M.2 D4 4710483942020 Active

Details

General Information
Summary 5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum number of SMP processors 1
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 2
Maximum internal memory 64 GB
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC Yes
Supported memory clock speeds 3200,4400,5333 MHz
Unbuffered memory Yes
Storage controllers
Supported storage drive interfaces M.2, SATA III
RAID support Yes
RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported
HDCP Yes
Internal I/O
USB 2.0 connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Chassis intrusion connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes

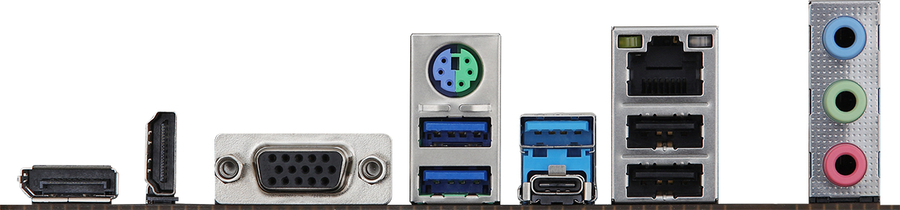

Rear panel I/O ports
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
PS/2 ports quantity 1
DisplayPorts quantity 1
DisplayPort version 1.4
Line-in Yes
Microphone in Yes
Network
Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel B760
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Windows operating systems supported Windows 10 Education x64, Windows 11 x64
Certification - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 1
BIOS
BIOS type UEFI AMI
BIOS memory size 128 Mbit
Weight & dimensions
Width 244 mm
Depth 201 mm
Packaging content
Cables included SATA

Multimedia

Multimedia Items
manual pdf (manual pdf)
